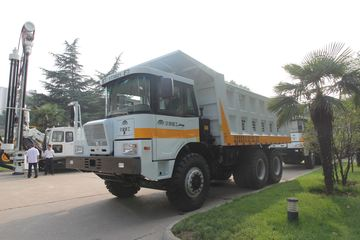

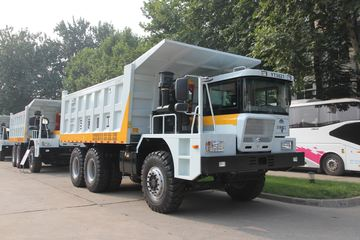

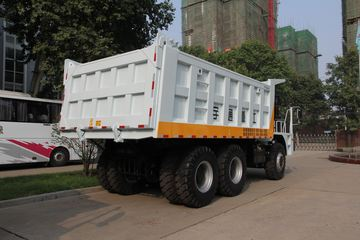

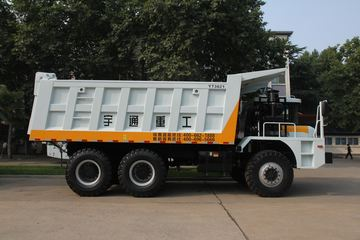

Yutong Heavy Industry 375hp 6X4 Wide-body Mining Dump Truck (40 tons)

1 / 4

Request a Quote Now

Basic Information
Driving License Required	A1, A2, B2	-
Wheelbase	3600/1500	mm
Model	YT3621	-
Drive Type	6×4	-
Front Track	2422	mm
Rear Track	2262	mm
Curb Weight	22	tons
Rated Load Capacity	40	tons
Gross Vehicle Weight	62	tons
Overall Dimensions (L×W×H)	8.75×3.25×3.7	m
Maximum Speed	49	km/h
Minimum Ground Clearance	380	cm
Minimum Turning Radius	0.011	m
Maximum Gradeability	35	%
Approach Angle	30	°
Departure Angle	45	°
Engine Parameters
Engine Model	Weichai WD12.375 (Optional: Yuchai YC6M375-20)	-
Maximum Output Power	276	kW
Maximum Horsepower	375	HP
Maximum Torque Speed	1500/1550	rpm
Emission Standard	National III / Euro III	-
Transmission Parameters
Transmission Model	FAST 9JS180	-
Number of Gears	9	gears
Superstructure Parameters
Vehicle Brand	Zhengzhou Yutong	-
Lifting Type	Offset Reversible Floating Type	-
Maximum Tipping Angle	22	°
Other Specifications	Spring energy storage air brake; Cargo box volume: 26 m³ (level) / 31 m³ (heaped); Braking distance: 16 m	-
Chassis Parameters
Front Axle Load	13	tons
Rear Axle Load	25	tons
Tires
Number of Tires	10	pcs
Tire Specification	14.00-24	-
