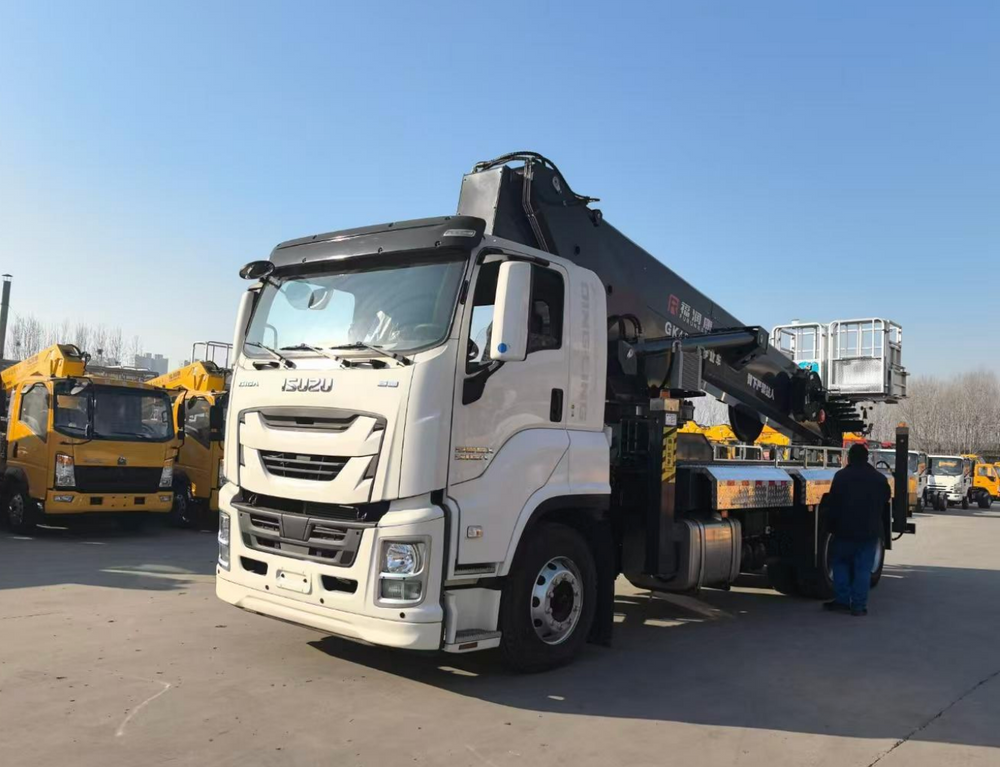

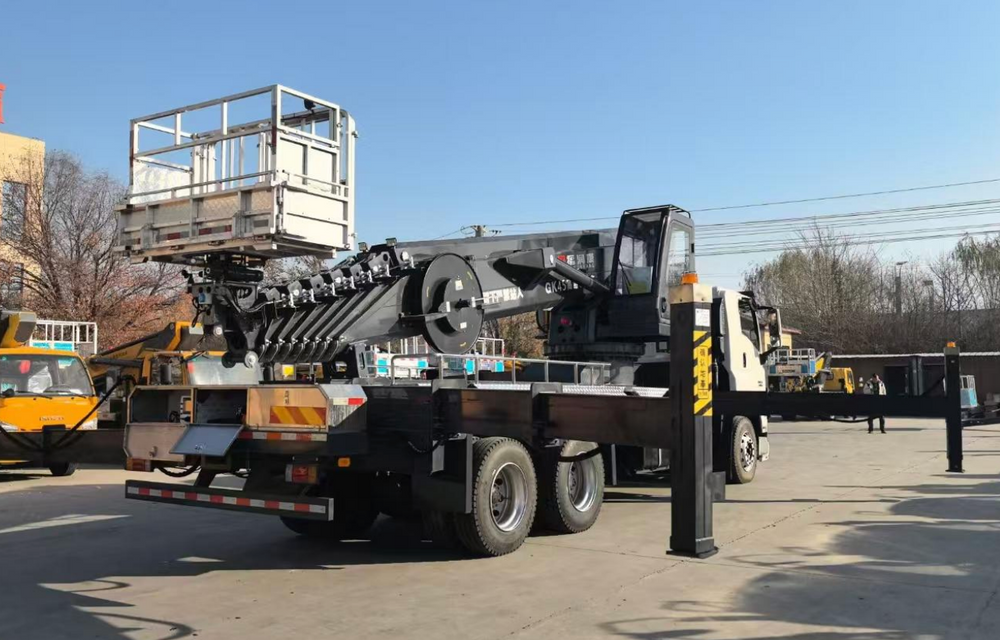

60M Aerial Work Truck
Request a Quote Now
60M Aerial Work Truck
|
Chassis Brand |
ISUZU |
|
Drive Type |
Left Hand Drive 6X4 |
|
Vehicle Size(mm) |
10650mm*2515mm*3910mm |
|
GVW |
25000KG |
|
Engine Model |
6HK1-TCG60 |
|
Engine power |
221KW/300HP |
|
Engine capacity |
7.79L |
|
Emission Standard |
Euro 6 |
|
Wheelbases |
4650+1370mm |
|
Transmission |
9JS119 TA |
|
Tires |
295/80R22.5 18PR |
|
Front/Rear Axle |
7.5T/13T |
|
Fuel Tank |
400L |
|
3. Upper Configuration |
|
|

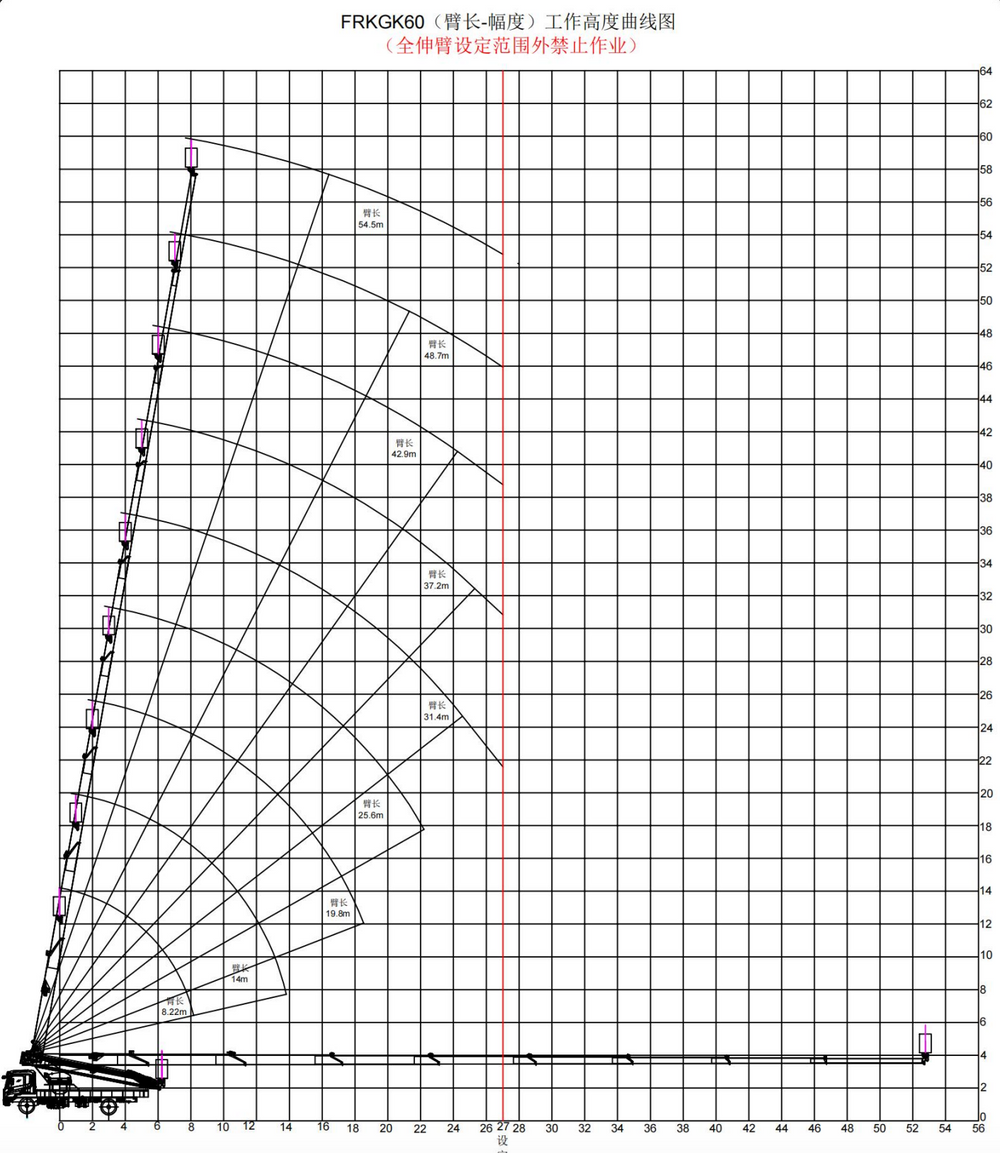

Maximum working height |
60meters |
|
Maximum working radius |
27meters |
|
Platform rated load |
400KG |
|
Boom slewing angle |
360 degrees |
|
Platform size |
3200mm*1000mm*1100mm |
|
Platform Slewing Range |
Infinite 360 degree rotation |
|
Maximal Arm |
9-section boom |
|
Operating System |
Domestic well-known electronic control system, equipped with wireless remote control |
|
Hydraulic System |
Electro-hydraulic proportional valve, infinitely adjustable speed, with emergency power source |
|
Hydraulic outriggers |
X-legs, 4 double-section legs, individually adjustable |
|
Aisle Plate |
Four extra large tool boxes made of steel, steel non-slip walkway. |
|
Safety Device |
Upper and lower vehicle interlock, emergency power source, bi-directional hydraulic balancing valve |
