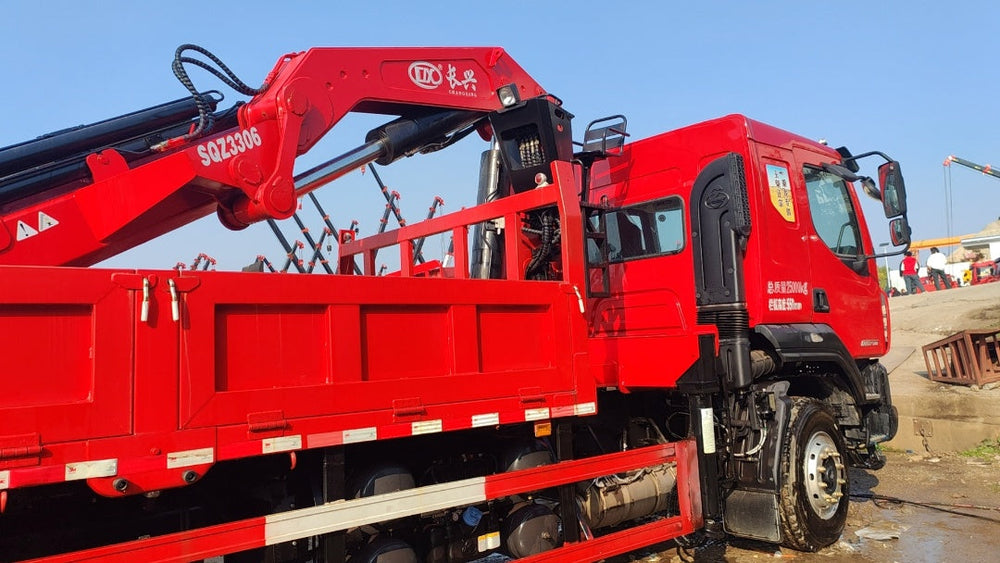

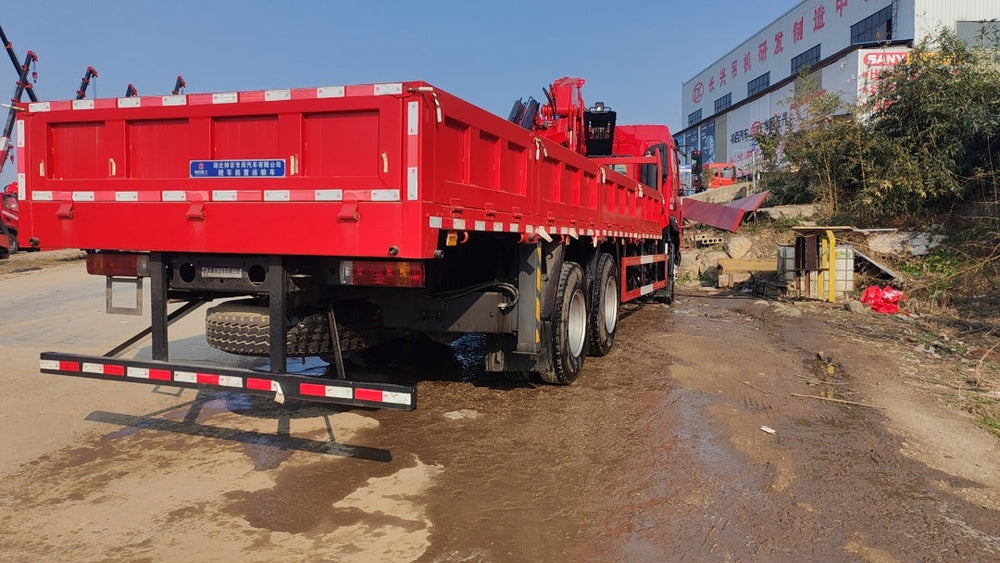

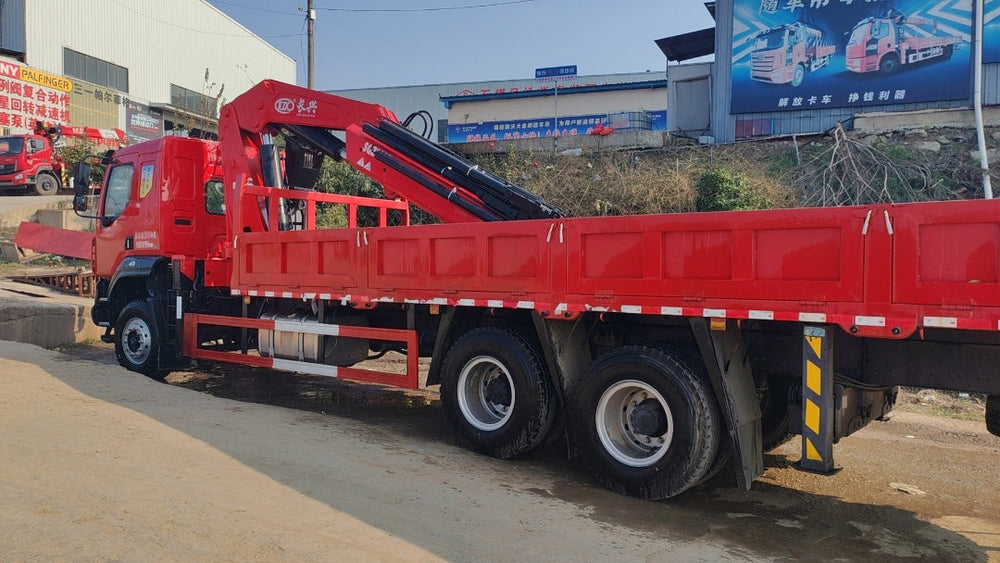

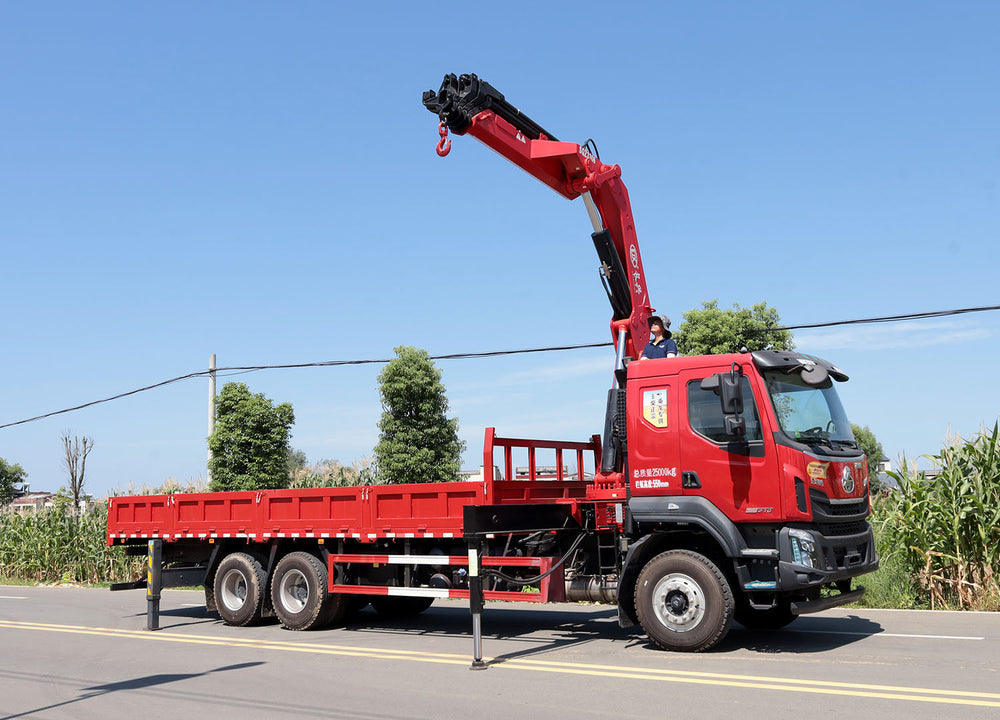

DongFeng 300HP Knuckle Boom Crane
Request a Quote Now
| Item | Parameter |
|---|---|

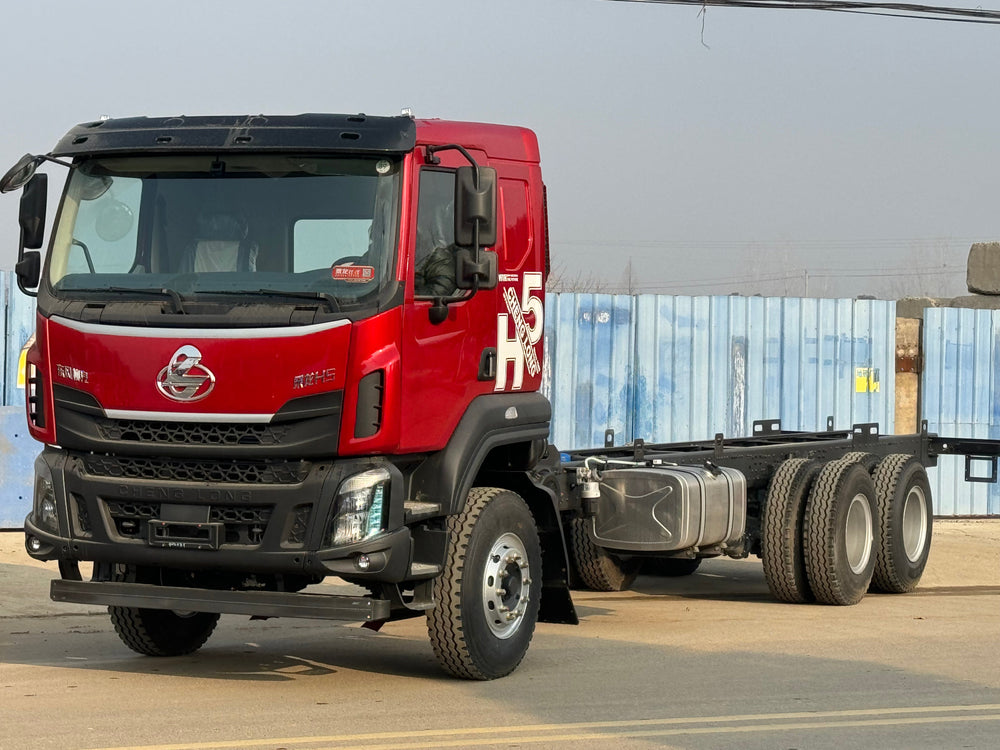

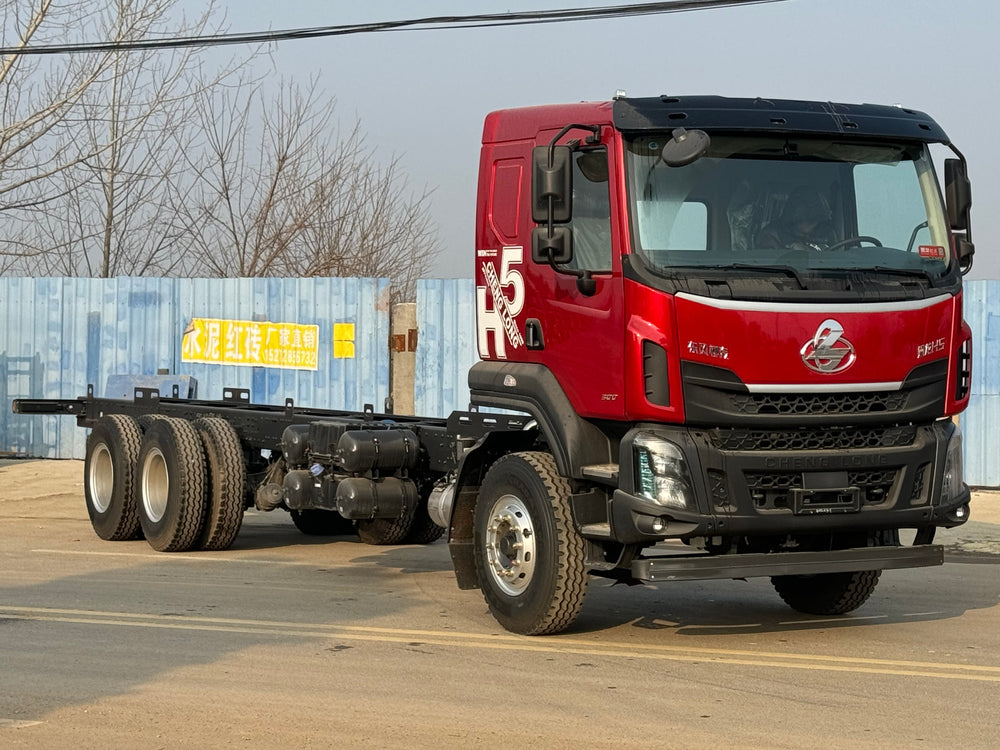

| Chassis Model | LZ1255H5DCT |
| Kerb Weight | 19000/18500/18000/17600/16800/16100kg; covers 12-14 ton domestic crane registration |
| Wheelbase | 5850+1350/4800+1350/4350+1350/3850+1350mm; long/short wheelbase optional |
| Overall Vehicle Dimension | 12000/10900/10300/9580mm |
| Cargo Box Dimension | 8400/7200/6600/6000mm |
| Engine | YCS07L300-66, 7L displacement |
| Gearbox | Fast 9JS119T-B, with QHG50 flange PTO |
| Front/Rear Axle Load | Front 6.5T / Rear 2×13T, final drive ratio 5.143 |
| Differential Lock | Inter-wheel & inter-axle differential lock, oil-lubricated wheel hub |
| Clutch | Φ430 pull-type clutch |
| Leaf Spring | 11/10 leaf spring with double U-bolts, reinforced front spring |
| Frame | 300(8+8+4) Baosteel 750 3-layer laminated integral frame, with reinforced sub-beam & outrigger connecting plates, 14-step plastic spraying & alkali washing process |
| Fuel Tank | 350L aluminum fuel tank |
| Tire | 11.00R20 steel wire tire |
| Electrical System | 150AH battery, 80A alternator, maintenance-free battery |
| Control Configuration | Double U-bolts, rocker-type self-return remote throttle, under-vehicle start/stop function |
| Bumper | Two-tone bumper + fender, high-position bumper |
| Cab Model | H51S low-height cab, with H5 decal |
| Cab Suspension | 4-point fine-tuned full-floating cab suspension (exclusive domestic technology) |
| Cab Tilt | Manual hydraulic tilt |
| Seat | Knitted airbag driver seat, knitted fixed passenger seat |
| Steering Wheel | Leather steering wheel |
| Door & Window | Electric window lift, remote central locking |
| Air Conditioning | Manual air conditioning |
| On-board Terminal | Driving recorder + Beidou GPS compatible, Chenglong V+ connected car system |
| Other Cab Equipment | External sun visor, multi-state switch, right turn reminder, overspeed alarm, MP3 + radio, 5-inch B&W combination meter, standard logo, halogen headlamp, ABS |
