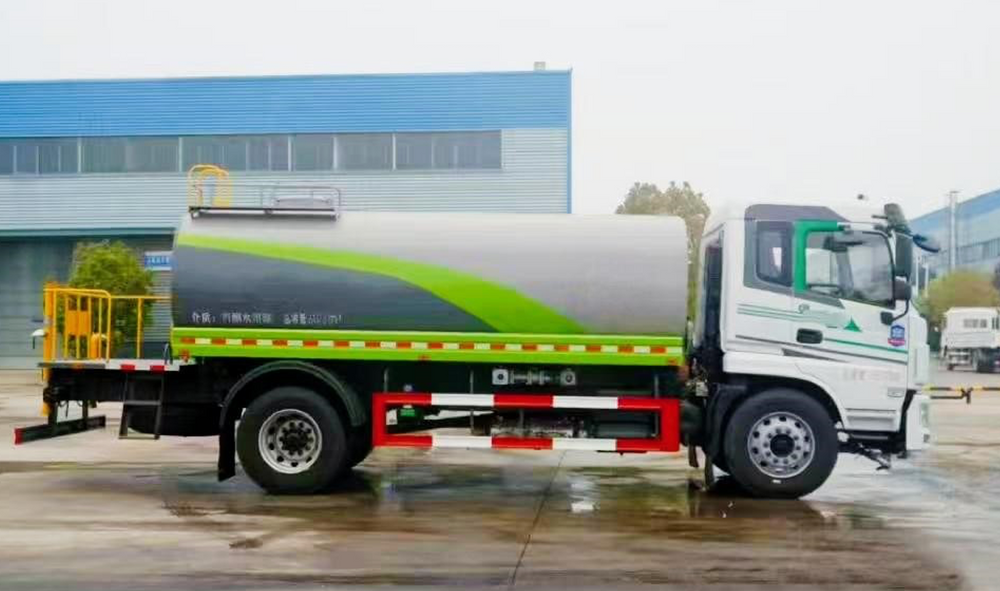

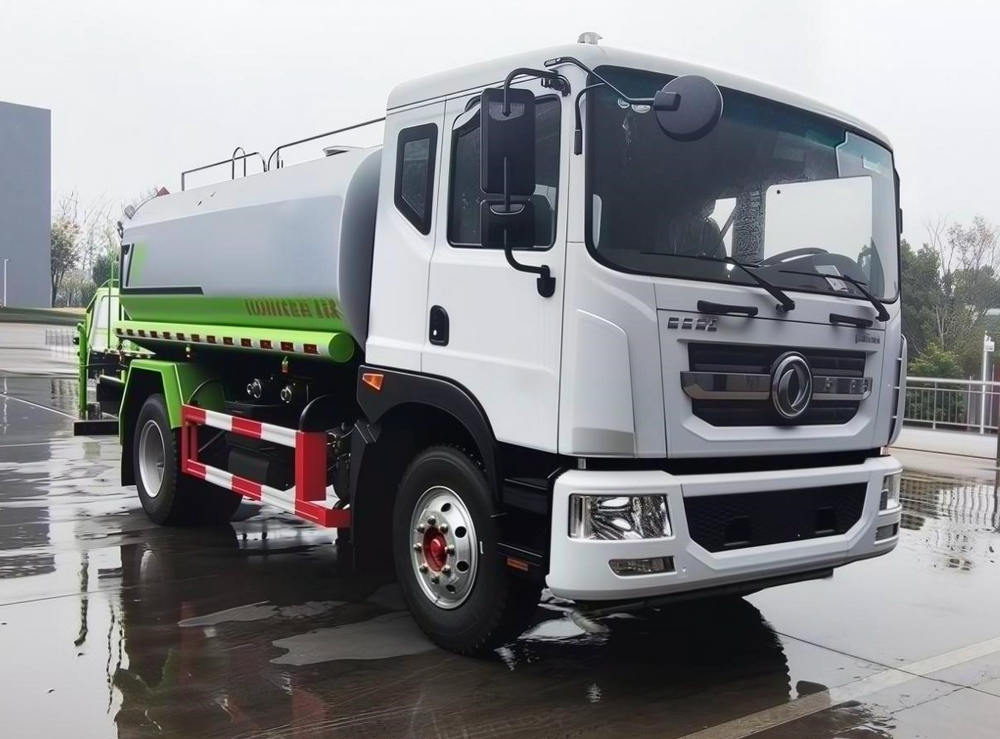

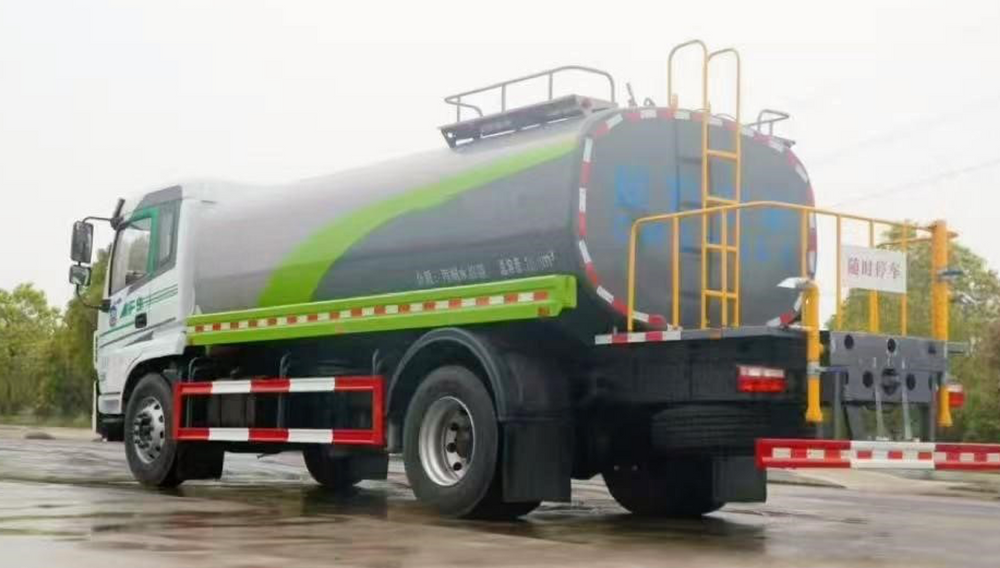

Dongfeng 4X2 10 m³ Water Tank Truck
Request a Quote Now
No1.Basic parameters of vehicle：
|
Model,Specification,Value |
|
|
Chassis Brand |
Dongfeng |
|
Vehicle Size(L*W*H) |
7660×2500×3200 |
|
GVW(kg) |
16200 |
|
Cab Capacity |
3 |
|
Drive Type |
4X2(Left Hand Drive) |
|
EngienType |
D4.5NS6B240 |
|
Engine brake |
Air brake |
|
Power |
240HP/176KW |
|
Displacement |
4.5L |
|
Maximum torque |
850N・m |
|
Emission Standard |
Euro 6 |
|
Wheelbase(mm) |
3900 |
|
Tire size |
9.00R20 |
|
Tyre number |
6 |
|
Maximum speed |
89 |
|
Gearbox |
manual |
|
Transmission |
8-speed gearbox |
|
Front axle/ Rear axle |
3.9T/8T |
|
Suspension |
Leaf spring suspension |
|
Brake |
Front and rear dual-circuit drum brakes; exhaust brake |
|
Configuration |
With air conditioning, ABS,,Rearview mirror, seat belt, sun visor, fire extinguisher, floor mat, emergency warning triangle |
No2. Special function parameters of vehicle:
|
Title |
Model,Specification,Value |
|
Tank volume |
10 m³ |
|
Tank material |
Carbon steel |
|
Tank thickness |
4MM |
|
Tank shape |
Oval-shaped tank,Three horizontal anti-surge baffles divide the water tank into four interconnected compartments. |
|
|
Two inspection wells, each with an opening diameter of 50 centimeters. |
|
Configuration |
The top has a perforated steel plate walkway |
|
3-inch galvanized pipe and rear ball valve |
|
|
Two 30-meter-long hoses and connectors |
|
|
Mudguards, overflow hose, loading ladder, hose box, rear bumper, spare tire rack, rear hook |
|
|
Drive Pump |
Model：80QZF-60/90N |
|
Flow：60 m³/h |
|
|
Lifting Head：90M |
|
|
Import and export：80 mm |
|
|
Equipped |
Includes all necessary adapters, valves, valve caps, short pipes, elbows, and tees. |
|
Durable truck vinyl stickers, 100 x 100 cm, 120 microns, 2 stickers per vehicle. |
