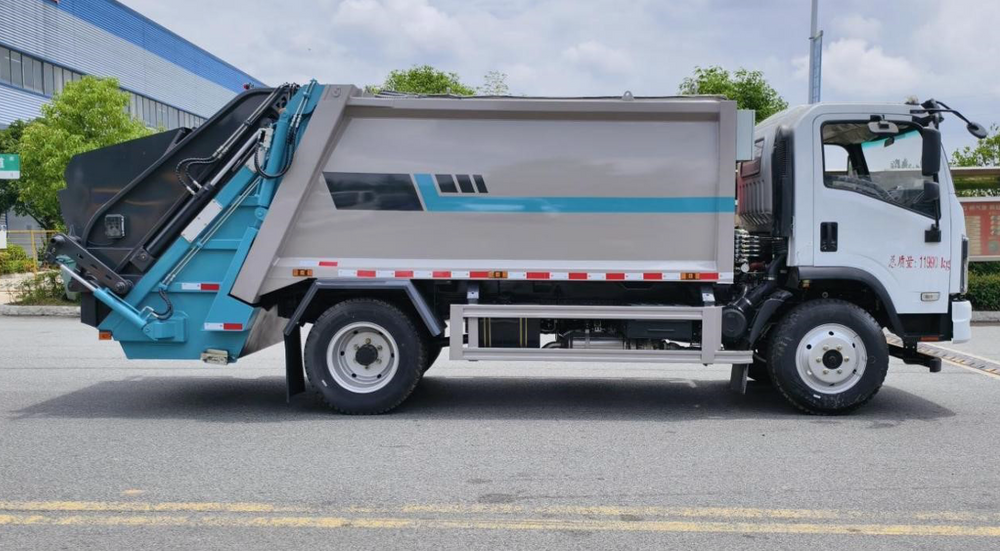

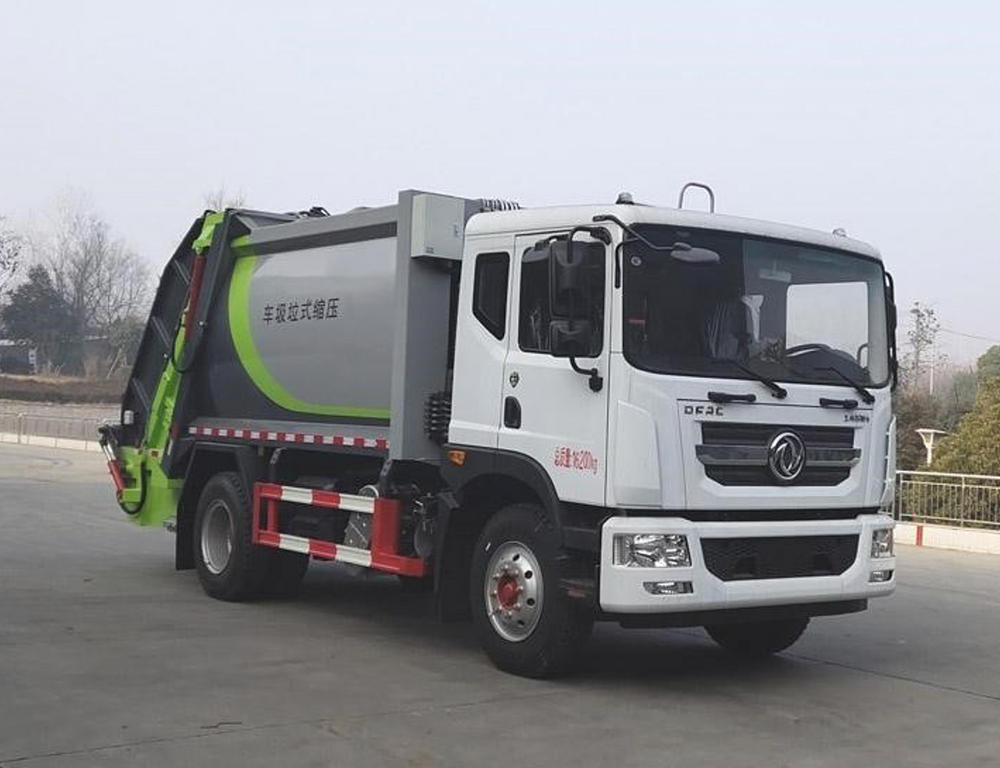

Dongfeng 14m³Compactor garbage truck
Request a Quote Now
No1.Product parameters
|
Model,Specification,Value |
|
|
Chassis Brand |
Dongfeng |
|
Vehicle Model |
CL5181ZYS6AQC |
|
Vehicle Size(L*W*H) |
8530x2550x3500 |
|
Total mass(kg) |
16000 |
|
Curb weight(kg) |
10500 |
|
Rated mass(kg) |
5900 |
|
Cab Capacity |
3 |
|
Drive Type |
LHD 4×2 |
|
Fuel Type |
Diesel |
|
Fuel tank |
400L |
|
Engine Type |
Inline-six, turbocharged and intercooled |
|
Engine Make &Model |
ISD300 50 |
|
Power |
221kw/300HP |
|
Displacement |
6.7L |
|
Maximum Torque |
1100N.m |
|
Emission Standard |
Euro 5 |
|
Wheelbase(mm) |
4500 |
|
Tire size |
10.00R20 |
|
Tyre number |
6+1 |
|
Maximum speed |
90km/h |
|
Transmission |
9JS119TB |
|
Paint |
Customization |
|
Front axle/ Rear axle |
6.5T/13T |
|
Other Configurations |
Air conditioning, ABS, multi-function steering wheel |
|
Effective volume of box (m3) |
14CBM |
|
Case material |
Q355 manganese steel |
|
Box wall thickness |
5MM |
|
Bottom thickness of the casing |
5MM |
|
Operation mode |
electronic/manual/remote control |
|
Compression ratio |
7:1 |
|
Hydraulic system pressure |
18Mpa |
|
Cyclic efficiency |
Loading ≤15s compression ≤25s unloading ≤110s |
|
Electro-hydraulic configuration |
Gear pump, multi-way valve, balance valve, compression valve, shut-off valve, hydraulic cylinders (all cylinders are heat-treated and have buffers), high-pressure oil pipes (3 layers of steel wire), universal steel pipes (2.2mm thick) 18# thickened, hydraulic oil tank with 3-stage filter screen, all cylinder shaft pins are hardened to increase hardness and prevent bending and breakage, CAN bus intelligent screen one-button operating system with wireless remote control, system program can be customized on the intelligent screen according to user needs, automatic operation switching time and throttle control can be set, with automatic fault detection and alarm functions. |
