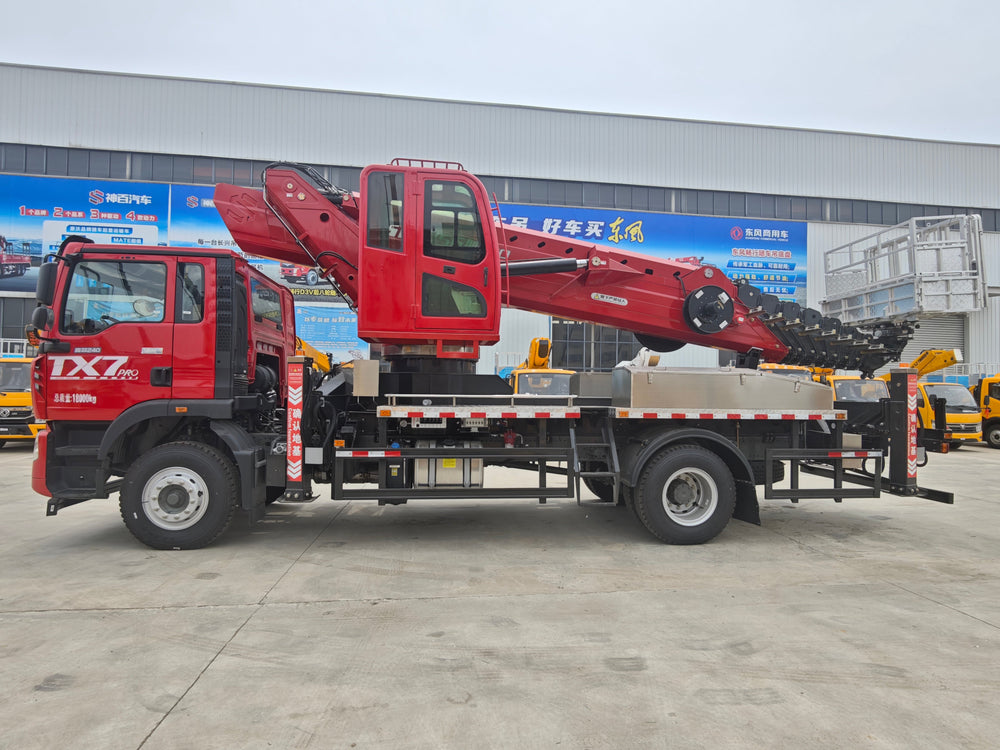

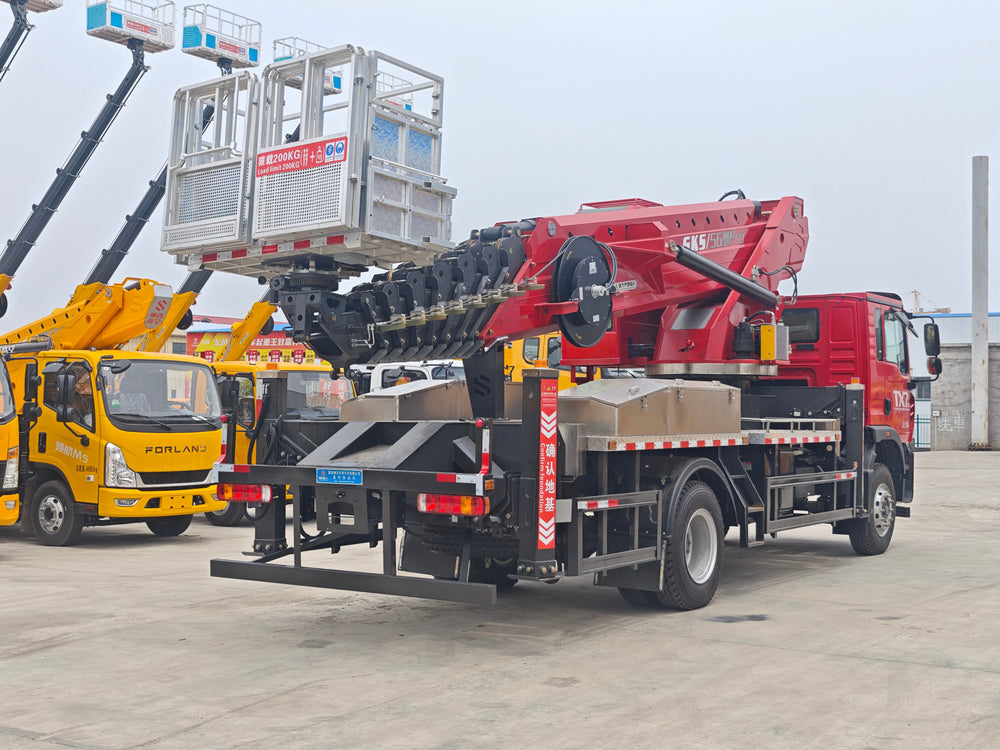

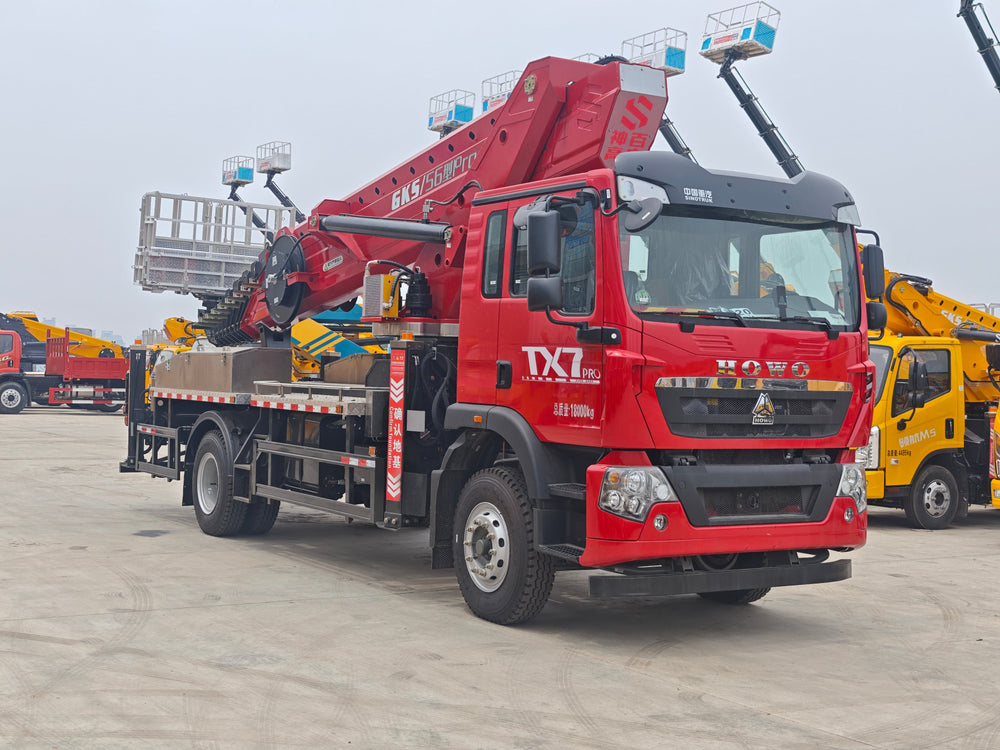

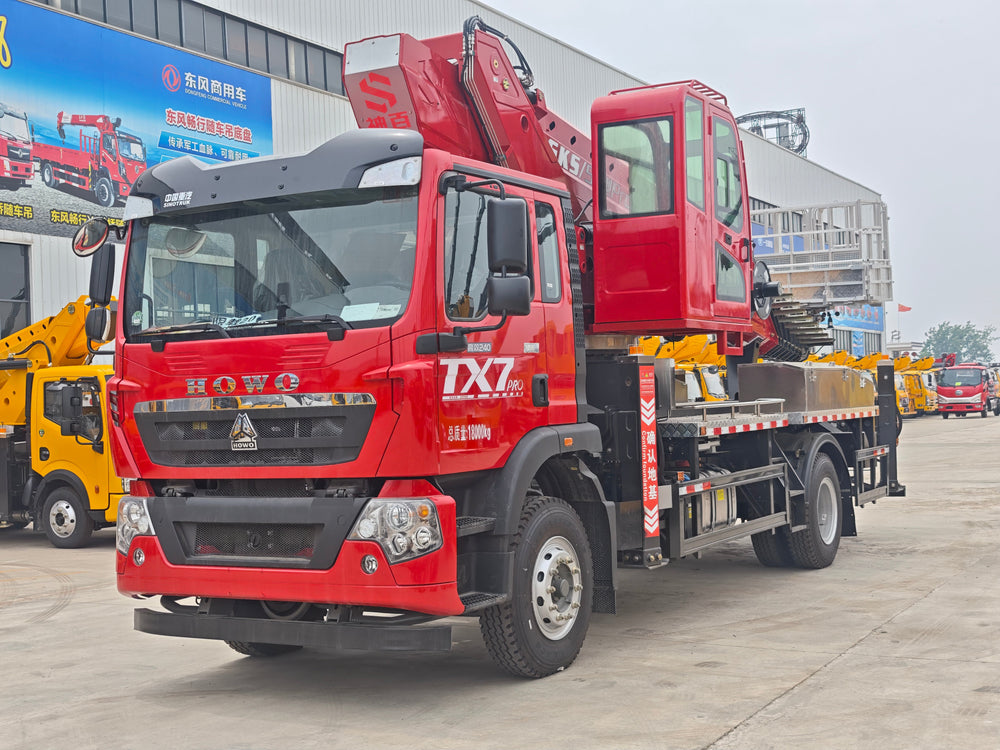

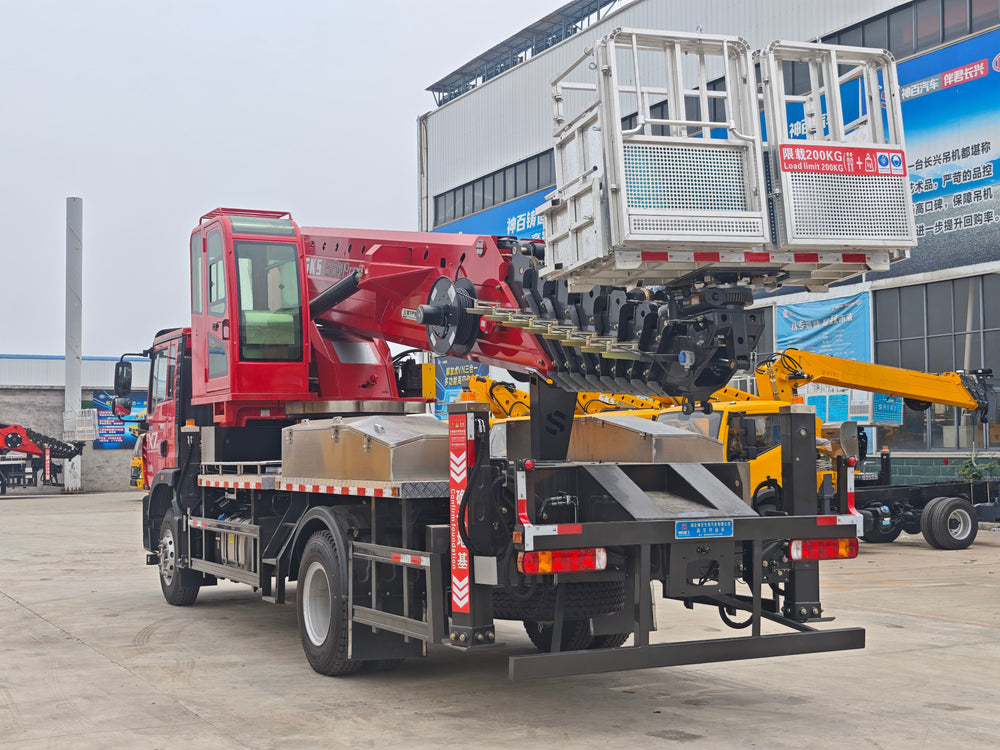

HOWO GKS56Pro Aerial Work Platform Truck
Request a Quote Now
Chassis
| Item | Specification |
|---|---|
| Chassis Model | HOWO TX 4×2 |
| Engine | Weichai, 240 HP, 4.6L displacement |
| GVW | 18000KG |
| Curb Weight | 17870KG |
| Transmission & PTO | HW95508STC2 gearbox + HW45ZC flange-type power take-off |
| Wheelbase Options | 5000mm / 4700mm / 4500mm |
| Frame | 3-layer reinforced frame (8+5+5/303) |
| Overall Dimension | 9650×2500×3930mm |
| Tire | 10.00R20, mixed tread, 18PR |
| Axle Load | Front axle:7t; Rear engineering axle:13t |

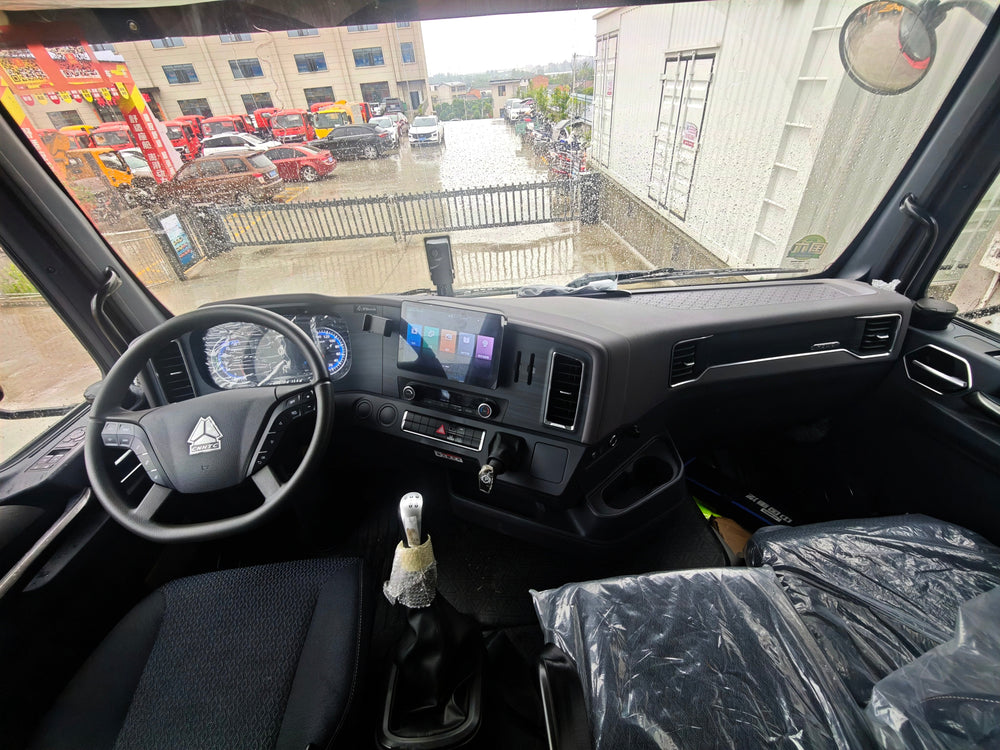

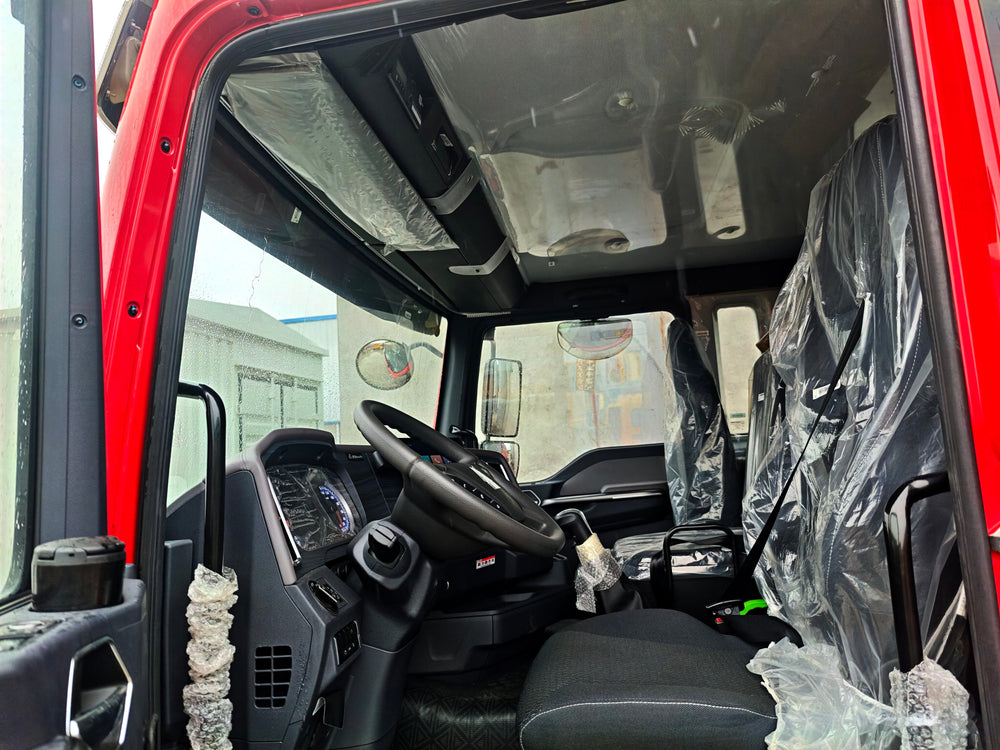

| Cab & Fittings | TX-D cab, multifunctional steering wheel, manual rearview mirror; main air suspension + auxiliary basic seat, 7-inch full HD MP5 touch screen, 200L fuel tank |
Upper Body (GK56 Pro)
| Item | Specification |
|---|---|
| Model | GK56 Pro |
| Max Working Height | 52m |
| Max Working Outreach | To be confirmed |
| Rated Platform Load | To be confirmed |

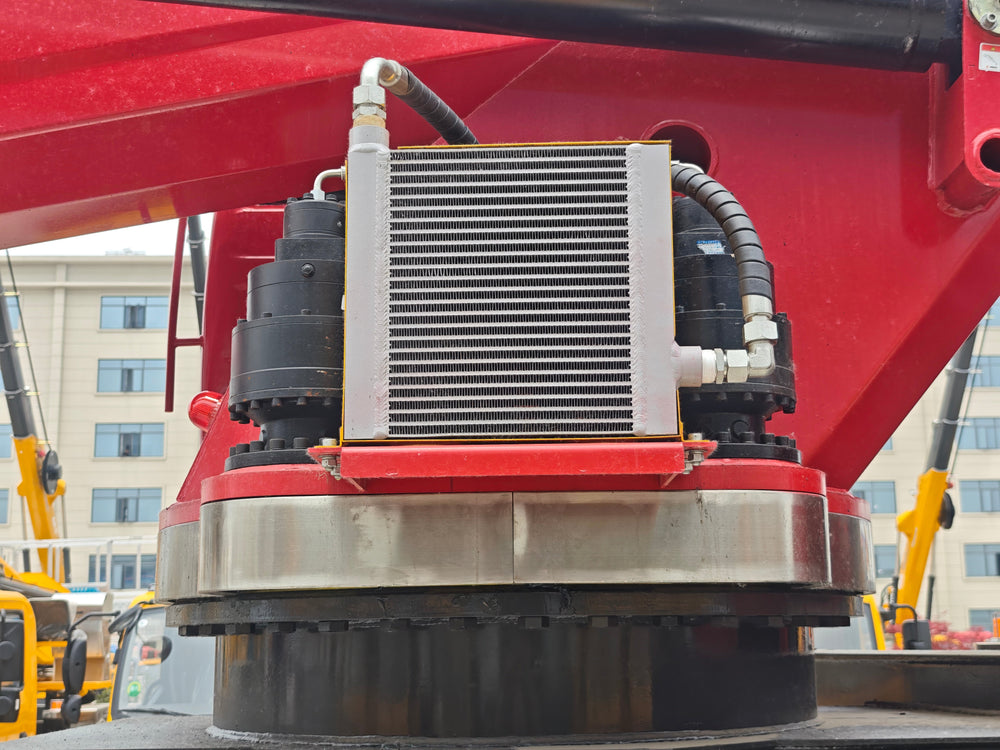

| Boom Slewing | 360° full rotation |
| Platform Size | 3200×1000×1100mm |

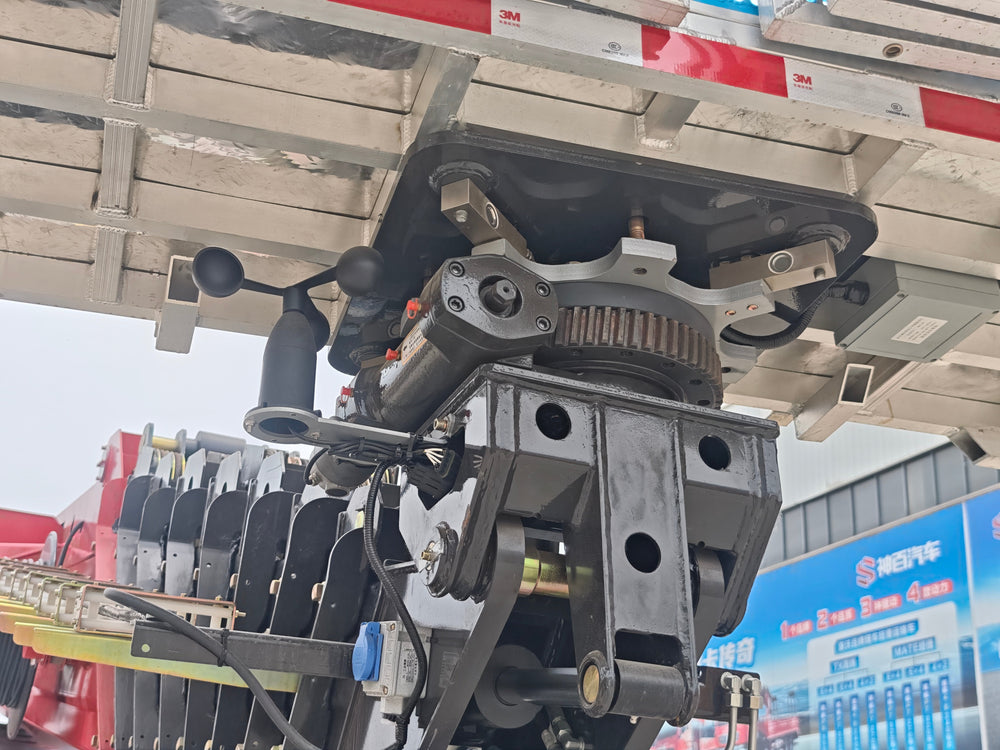

| Platform Rotation | 360° continuous rotation |
| Boom Structure | 9-section boom, 8-section synchronous extension; 4-wire-rope design for second boom |
| Control System | Domestic premium ECU with wireless remote controller |
| Hydraulic System | Electro-hydraulic proportional valve, stepless speed regulation, emergency power unit |
| Outriggers | 4pcs 3-stage X-type outriggers, independent bidirectional adjustment |
| Outrigger Span | Cross:9050mm, Longitudinal:9000mm |
| Walkway & Storage | Stainless steel large toolbox, anti-slip aluminum walkboard with stainless steel guardrail |
| Safety Devices | Upper operation cabin, interlock system, limit protection, hose safeguard, emergency power, double-way hydraulic balance valve, load detection, wind speed sensing, outrigger length protection |
