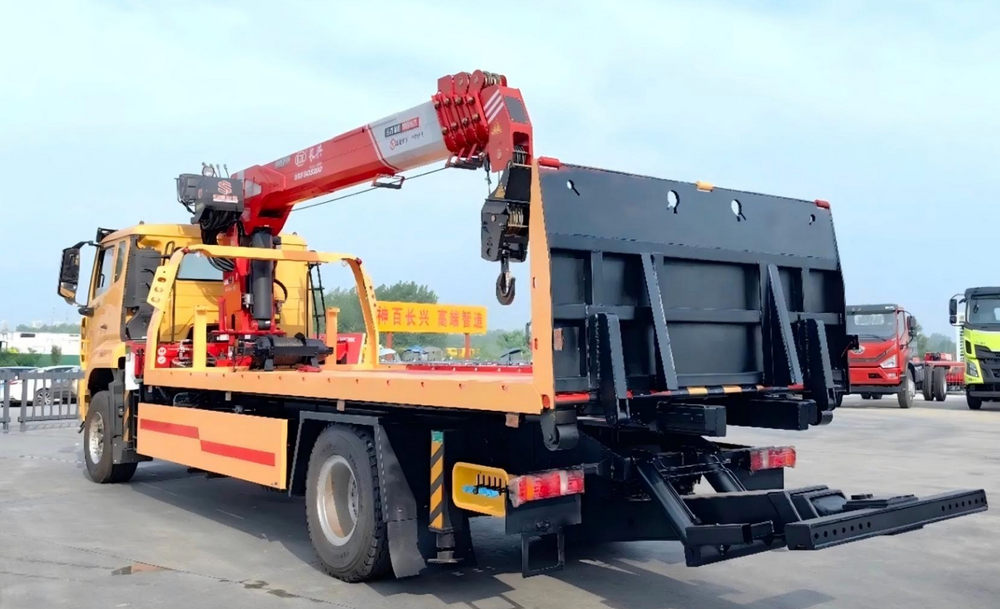

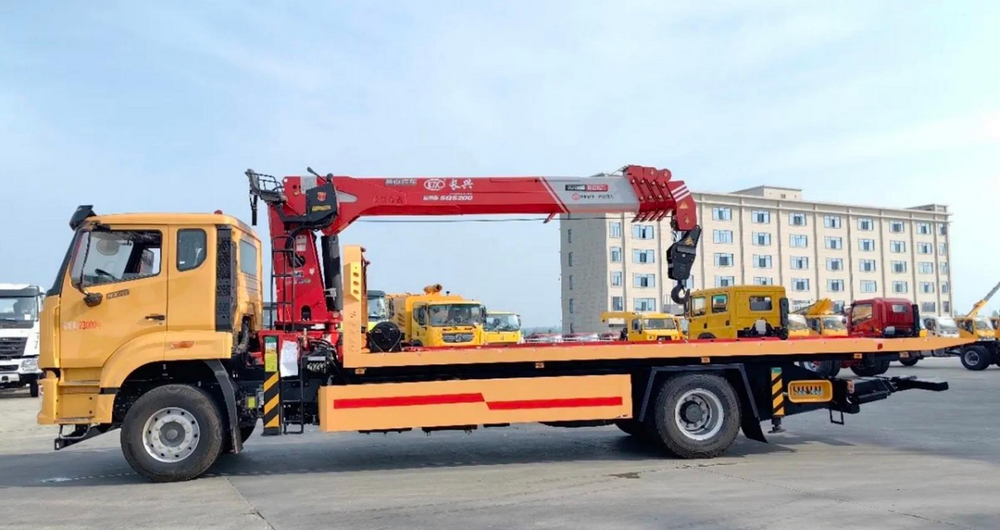

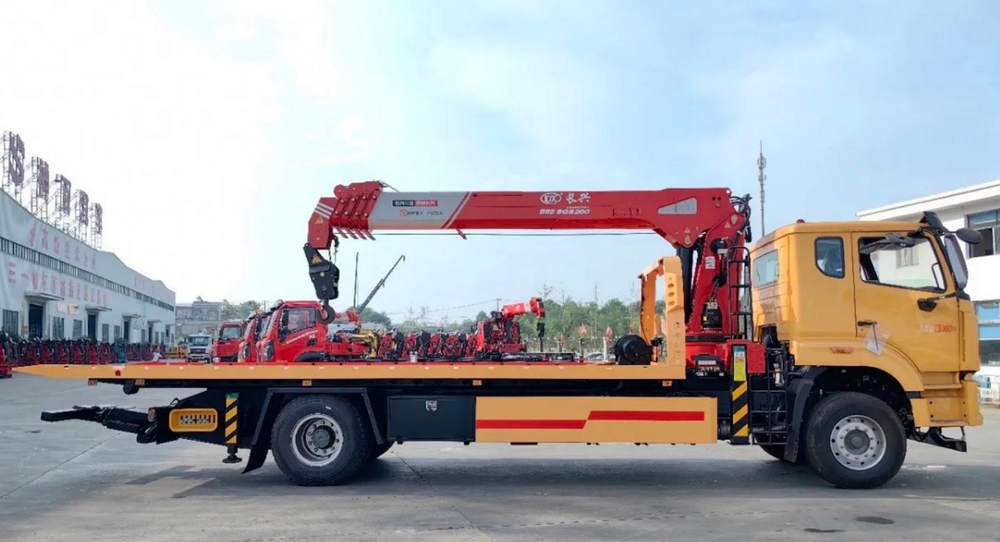

HOWO4*2 8T Wrecker truck with Crane
Request a Quote Now
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
HOWO |
|
Drive Type |
Left Hand Drive 4*2 |
|
Vehicle Size(mm) |
9650*2550*3680 |
|
G.V.W(kg) |
18000 |
|
Engine Model |
WP10.300E22 |
|
Engine power |
300HP/220KW |
|
Displacement |
9.726L |
|
Emission Standard |
Euro 2 |
|
Wheelbase |
5000mm |
|
Cab Capacity |
2 |
|
Transmission |
HW19710 gearbox + HW70 flange power take-off unit |
|
Front Axle |
VGD71 front axle (drum) |
|
Rear Axle |
MCX16ZG single rear axle (drum) with differential lock |
|
Gear ratio |
4.803 |
|
Tyre Size |
12.00R22.5 |
|
Fuel tank |
400L |
|
Cab configuration |
French-style instrument panel, fire extinguisher, reversing buzzer, metal bumper protective grille, front and rear headlight protective covers, three straps for the air tank, battery box anti-theft device, and split-type fuel tank anti-theft device. |
|
Special parameters |
|
|
Container Size |
7200 × 2500mm |
|
Container material |
carbon steel |
|
Container thickness |
6mm thick patterned plate |
|
Standard parts |
Imported valves and balancing valves, reinforced crossbeams, added vertical linings, and triangular plates for added strength. |
|
Container parameters |
It has a ground clearance of 1.2 meters, a 12-ton three-section rear tow arm, and a 12-ton centrally mounted hydraulic winch. It features a dual-side linkage operation device, 10mm thick slide rails, and a 1.2-meter hydraulic tilting mechanism at the rear. |
|
Equipped |
Includes: zip ring encryption, 1 toolbox, 2 rear work lights, 2 L-shaped tire holders, 2 auxiliary trolleys, 2 tire guards, 4 tie-down straps, 2 tow fork mounts, and 2 tow forks. |
|
Crane Brand |
CX/SQS200-4 |
|
Maximum lifting weight |
8T |
|
Working angle |
360-degree rotation |
|
Maximum lifting height |
16M |
|
Working radius |
14.6M |
|
Quantity of telescopic arm |
4-section |
|
3 |
|
