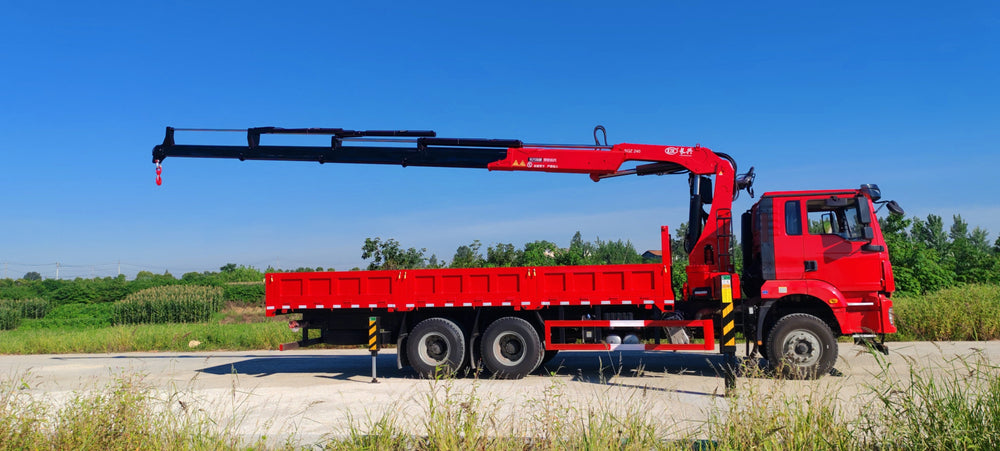

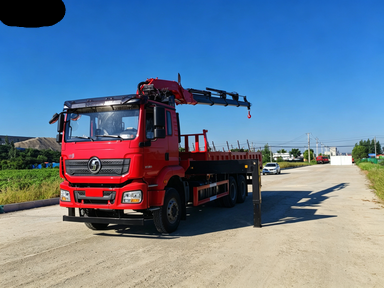

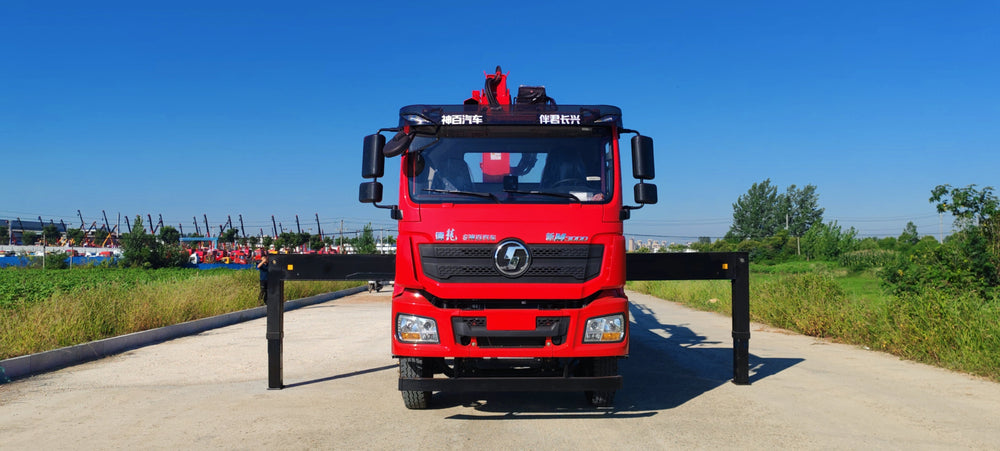

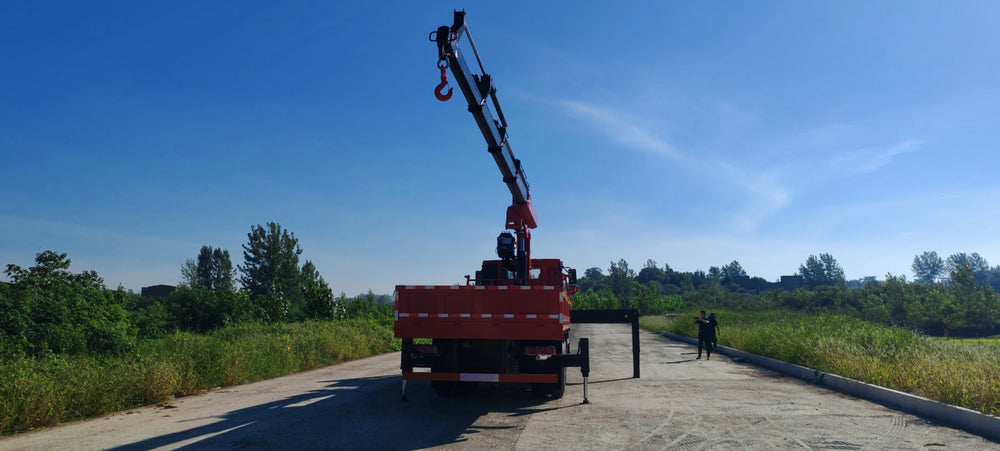

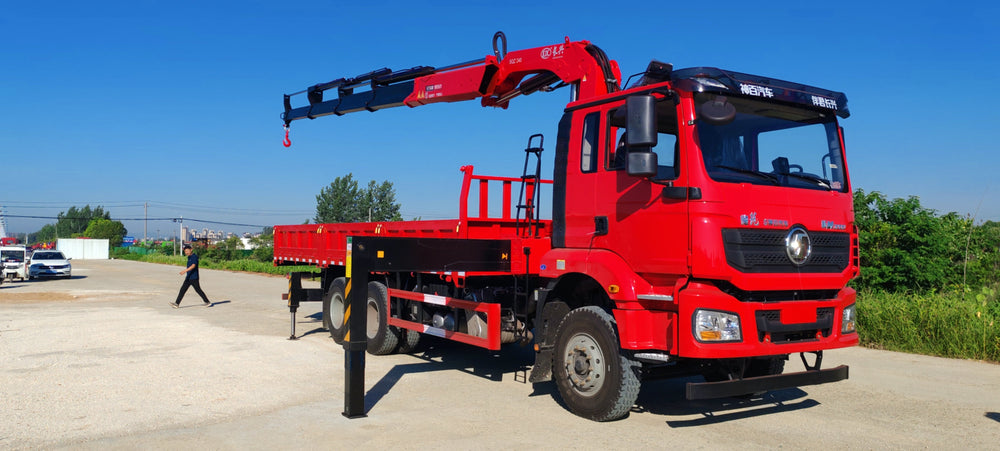

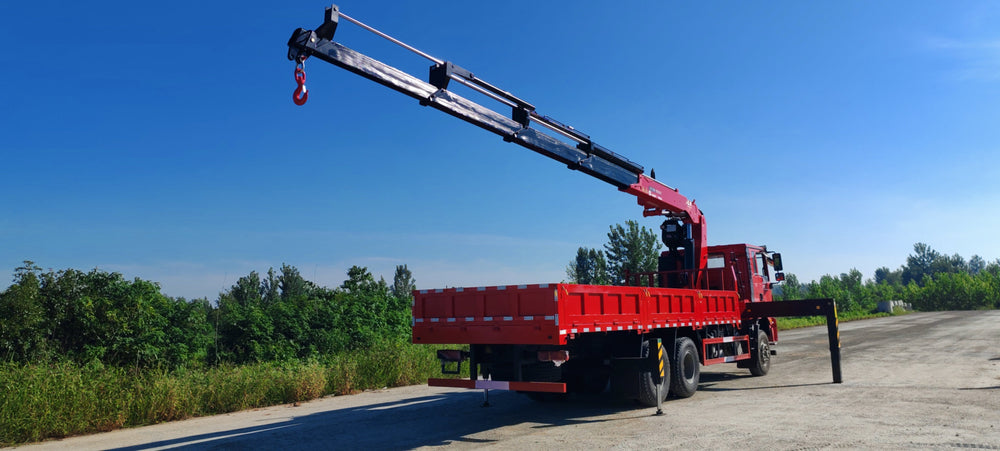

SHACMAN 6×4 270HP Knuckle Boom Crane
Request a Quote Now
| Item | Parameter |
|---|---|
| Chassis Model | SX1259MB4F1 |
| Engine | Weichai 270HP, National VI Emission Standard |
| Wheelbase | 5775+1400 mm |
| Gearbox | Fast 9-speed with synchronizer & high-low range |
| Front/Rear Axle | 5.5t / 11.5t, HanDe maintenance-free type |
| Tire Size | 11.00R20 |
| GVW (Gross Vehicle Weight) | 25000kg |
| Kerb Weight | 16500/17000/17600/18000/18800/19500kg; optional 9500kg |
| Cab | New M3000 standard cab, no air deflector |
| Clutch | Domestic clutch |
| Axle Type | Drum front axle & drum drive axle, final drive ratio 4111 |
| Air Filter & Radiator | DC air filter, aluminum radiator |
| Exhaust | Standard exhaust system |
| Suspension | Multi-leaf spring front & rear suspension (rear with U-bolt) |
| Steering | Domestic steering gear, standard steering wheel |
| Frame Size | 866×308(8+5+8) |
| Fuel Tank | 300L steel fuel tank |
| Safety & Electric | ABS, maintenance-free battery, electric A/C, power window, central locking with remote key |
| Other Cabin Equip | Air suspension driver seat, single bunk, rod-type rearview mirror, halogen headlamp |
| Additional Config | Manual cab tilting, 2-step access footboard, engineering bumper, model 9JS119TB-QHG50 transmission, front/rear towing pin, max speed limited to 89km/h, economical version |
| Engine Code | WP7H270E68 |
| Rated Passenger | As per factory standard |
