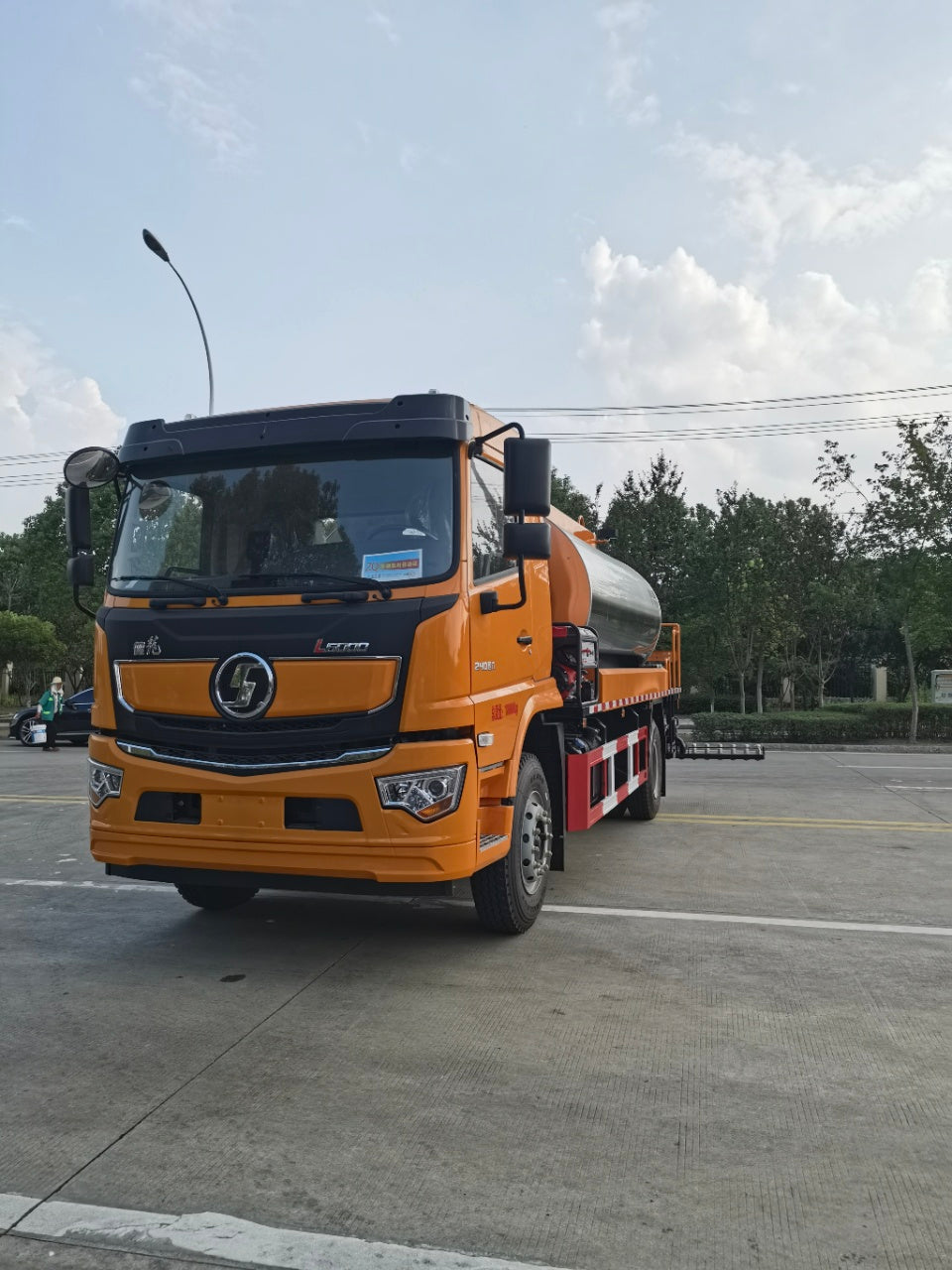

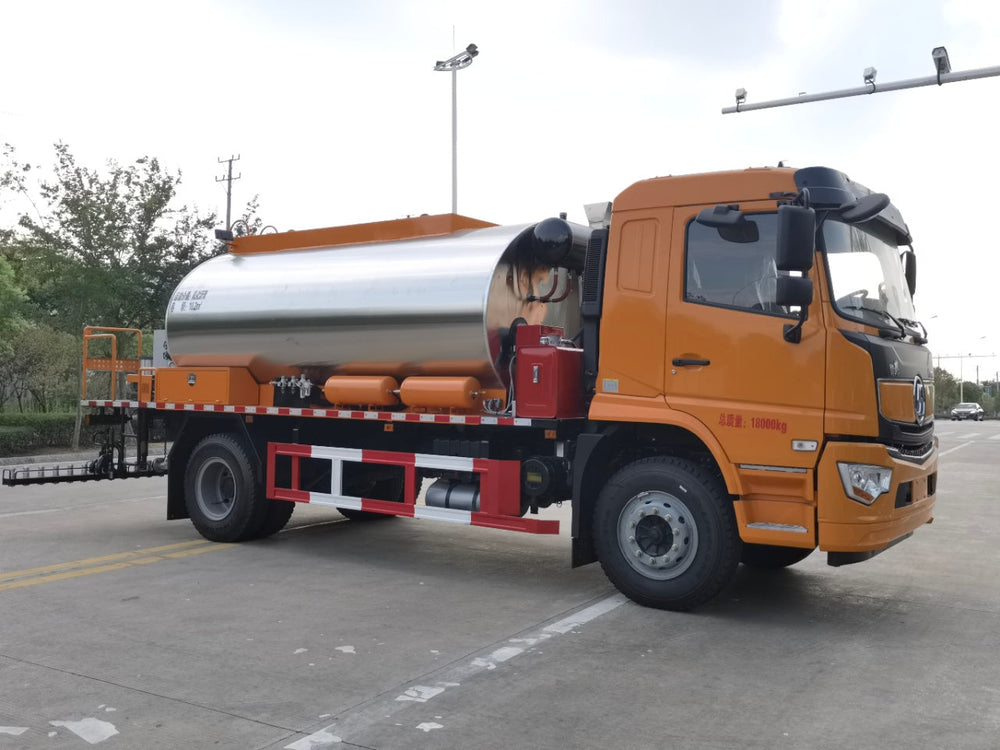

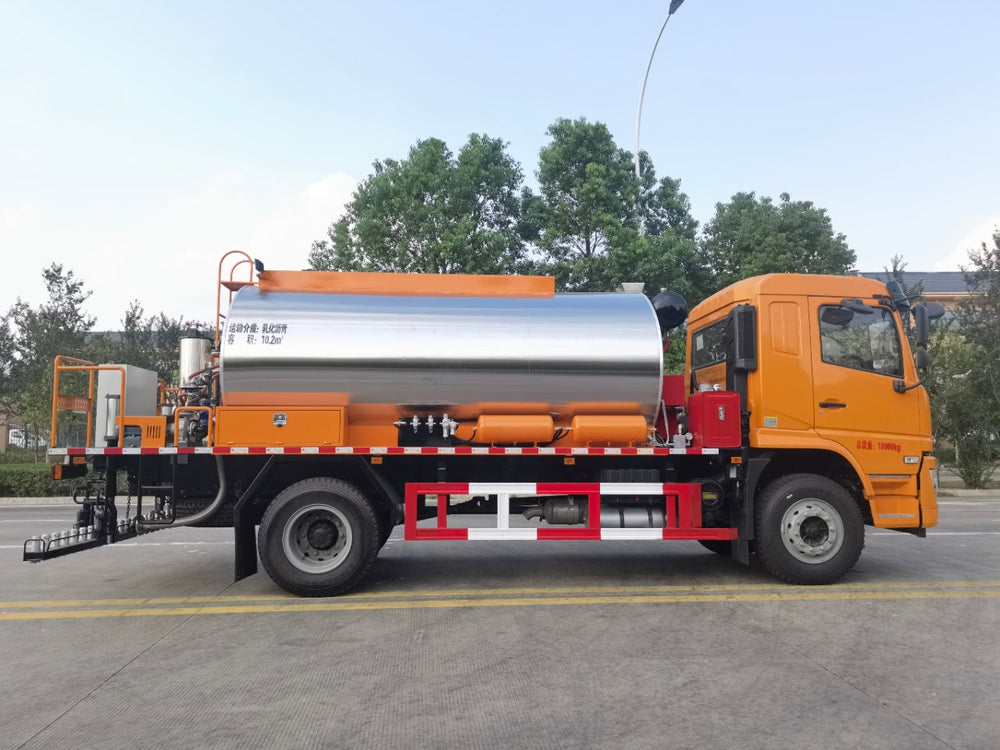

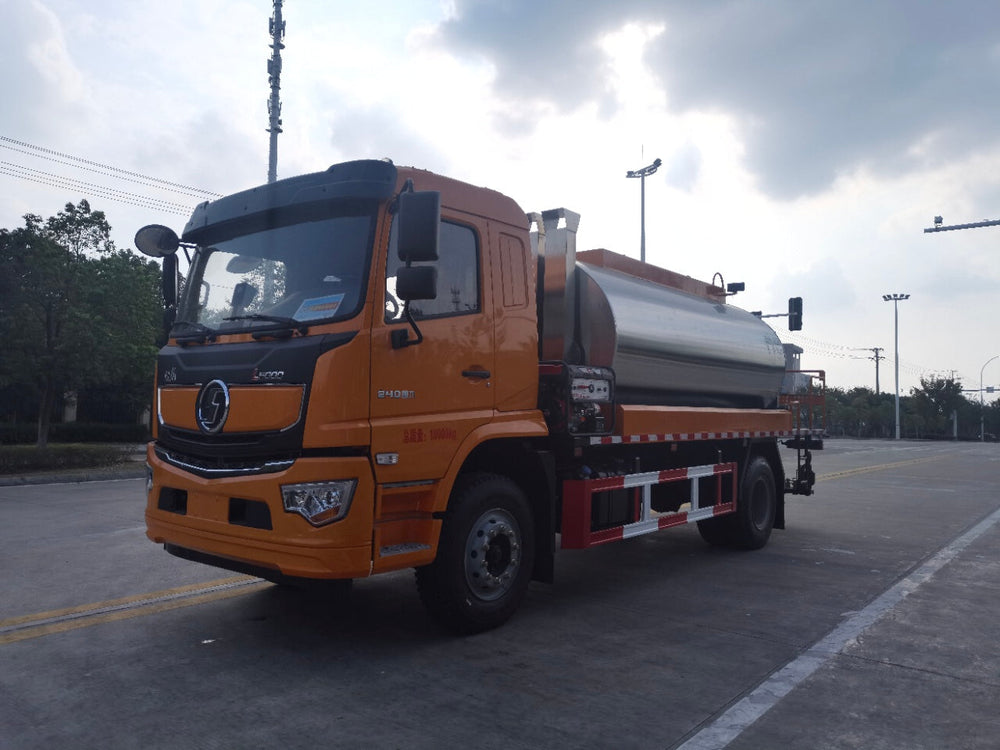

SHACMAN 10T Asphalt Distributor Truck
Request a Quote Now
1. Chassis Configuration
| Parameter | Value |
|---|---|
| Chassis Model | SX1189LA1F1C |
| Engine Model | WP4.6NQ240E62 |
| Engine Power | Weichai 240 HP |
| Cab Type | L5000V Cab |
| Wheelbase | 4500 mm |
| Front Axle Rated Load | 3.8 Tons |
| Rear Axle Rated Load | 8.7 Tons |
| Tire Specification | 10.00R20 Radial Tires |
2. Tank Body & Insulation System
| Parameter | Value |
|---|---|
| Tank Material | 5mm Carbon Steel Plate |
| Tank Volume | 10 m³ |
| Anti-Wave Baffles | Double anti-wave baffles |
| Insulation Structure | Three-Layer Insulation |
| Outer Insulation Layer | Stainless Steel Mirror Finish Cladding |
| Internal Insulation Filling | Flame-Retardant Rock Wool |
| Insulation Thickness | 50 mm |
3. Asphalt Pump & Hydraulic System
| Parameter | Value |
|---|---|
| Asphalt Pump Brand & Model | Shanggui QGB680 High-Viscosity Insulated Asphalt Pump |
| Asphalt Pump Drive Motor | Cycloidal Motor 2K-160 |
| Hydraulic Pump | F63 Aluminum Housing Gear Pump |
| Hydraulic Flow Control | Imported Electro-Hydraulic Proportional Flow Regulating Valve KUDSR3CB/FN9V (Rexroth) |
4. Heating & Temperature Control System
| Parameter | Value |
|---|---|
| Burner Brand & Model | Original Riyadh G20 Diesel Burner |
| Burner Type | Dual Burner System (Heat-Conducting Oil + Direct Combustion) |
| Heating Method | Full-Process Heat-Conducting Oil Heating (Tank & Pipelines) |
| Heating System | Large-Diameter U-Shaped Jacket Heating System |
| Expansion Joint | φ325 Stainless Steel Expansion Joint |
| Oil Pipe Arrangement | 14 heat-conducting oil pipes at tank bottom; guided heat-conducting oil pipes at oil suction port |
| Temperature Controller | Intelligent Integrated Controller + YuDian Temperature Controller |
| Heat-Conducting Oil Pump | BRY40-25-160 (Botou, Hebei) |
| Generator | Yihu 5KW Gasoline Generator |
| Radiator | AH1012-CD24-A |

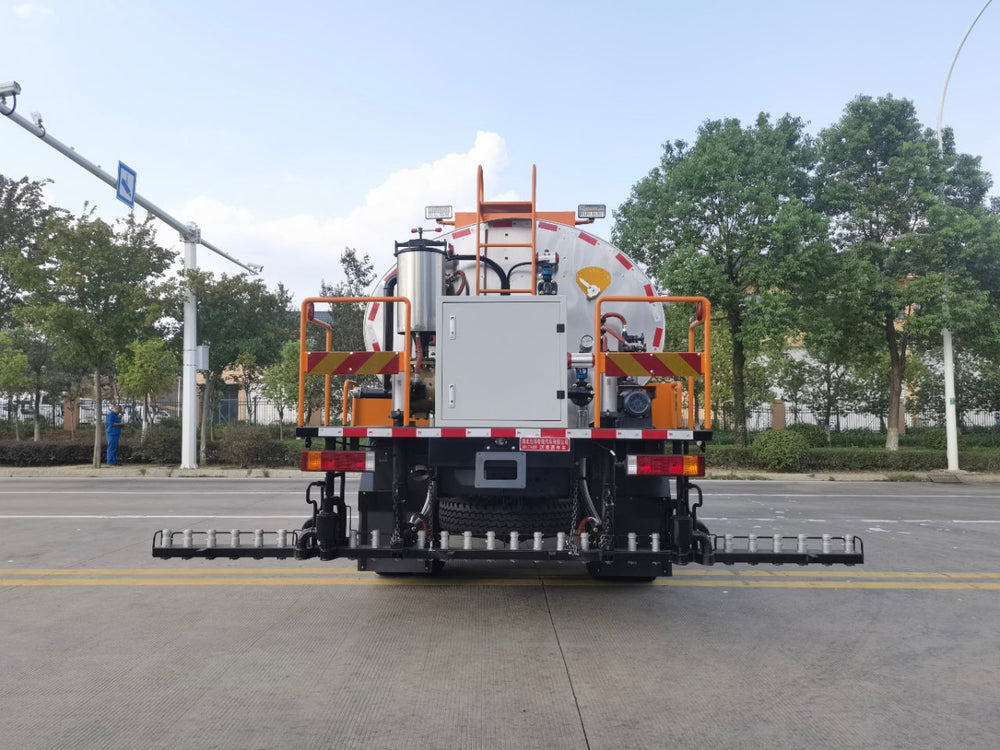

5. Spray Bar & Nozzle System
| Parameter | Value |
|---|---|
| Spray Width Range | 0.2 m – 4.5 m (triple overlap) |
| Spray Volume Range | 0.2 – 2 kg/m² |
| Electric Control Cylinders | 30 sets of stainless steel full electric-control cylinders |
| Nozzles | Pure copper nozzles |
6. Control System
| Parameter | Value |
|---|---|
| Spray Volume Controller | Intelligent Integrated Controller (Yisilu, IP67 protection grade) |
| Control Feature | Spray volume automatically linked with vehicle speed |
| In-Cab Display | Kunlun Tongtai 10-inch Touch Screen Control System |
| Pump Speed Control | Potentiometer-adjustable asphalt pump speed |
| Temperature Controller | Independent temperature controller |
| Air Pressure Display | Equipped |
| Spray Cylinder Control | One cylinder per valve (one-to-one control) |
7. Standard Features & Accessories
| Feature | Description |
|---|---|
| Asphalt Circulation | Full-vehicle asphalt circulation, one-key pump suction/discharge function |
| Automatic Cleaning | Asphalt pipeline recovery, nozzle cleaning and hand-gun cleaning function via operation screen |
| Level Gauge | Float-type level gauge installed inside tank |
| Tank Thermometer | Metal thermometer installed outside tank body |
8. Applicable Spray Media
| Medium Type | Description |
|---|---|
| Emulsified Asphalt | Suitable |
| Hot Asphalt | Suitable |
| Modified Emulsified Asphalt | Suitable |
| Modified Asphalt | Suitable |
