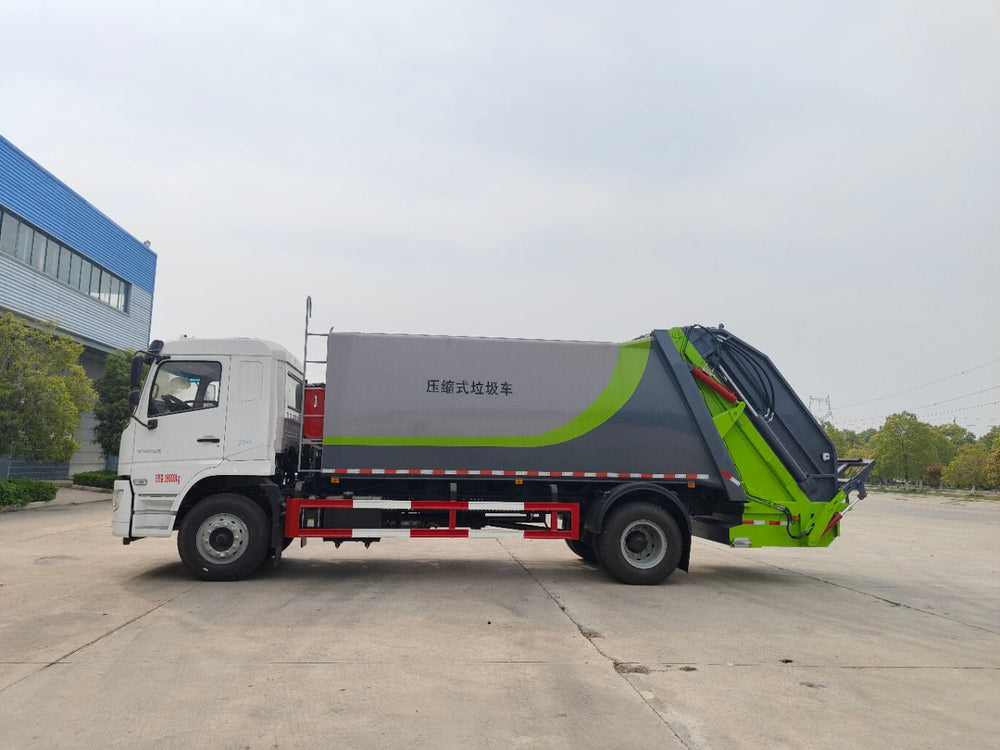

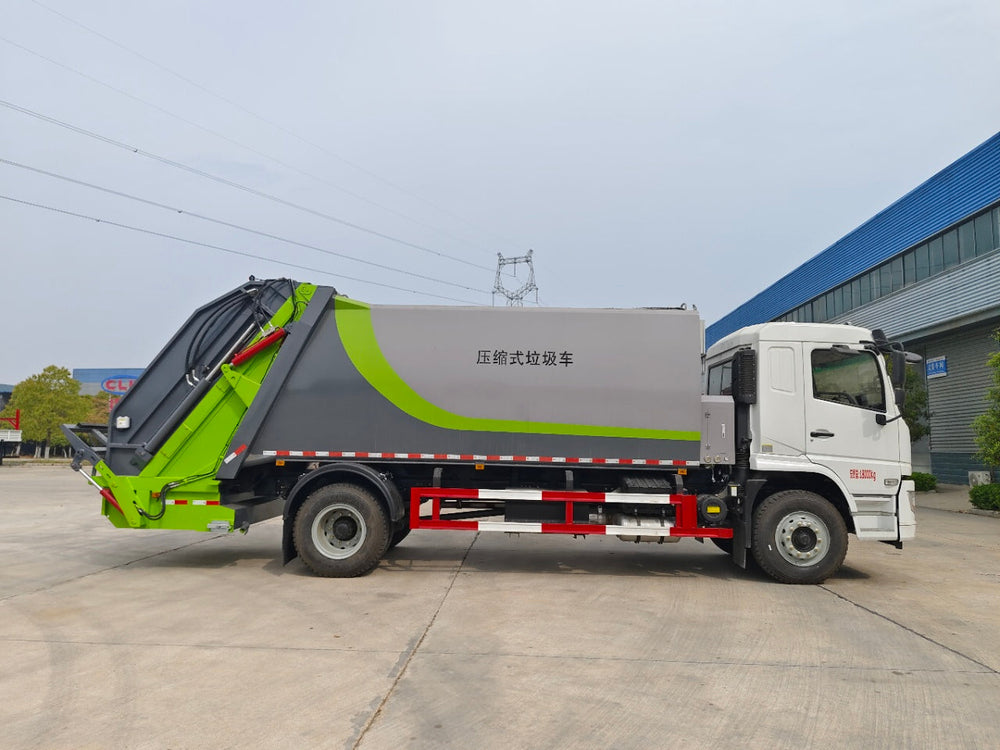

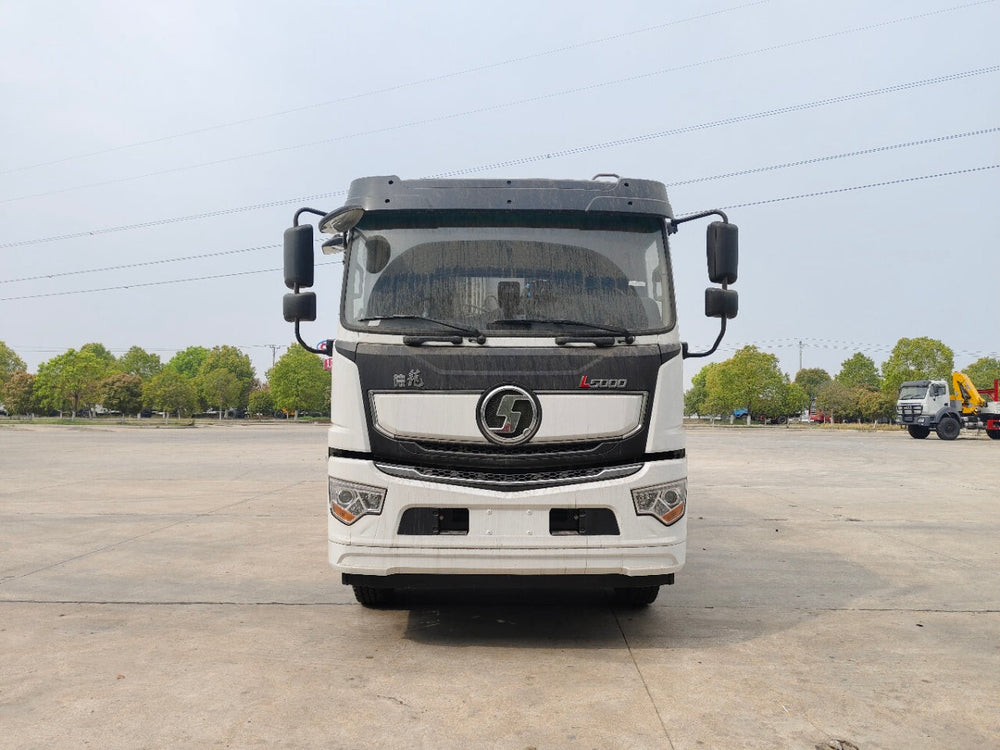

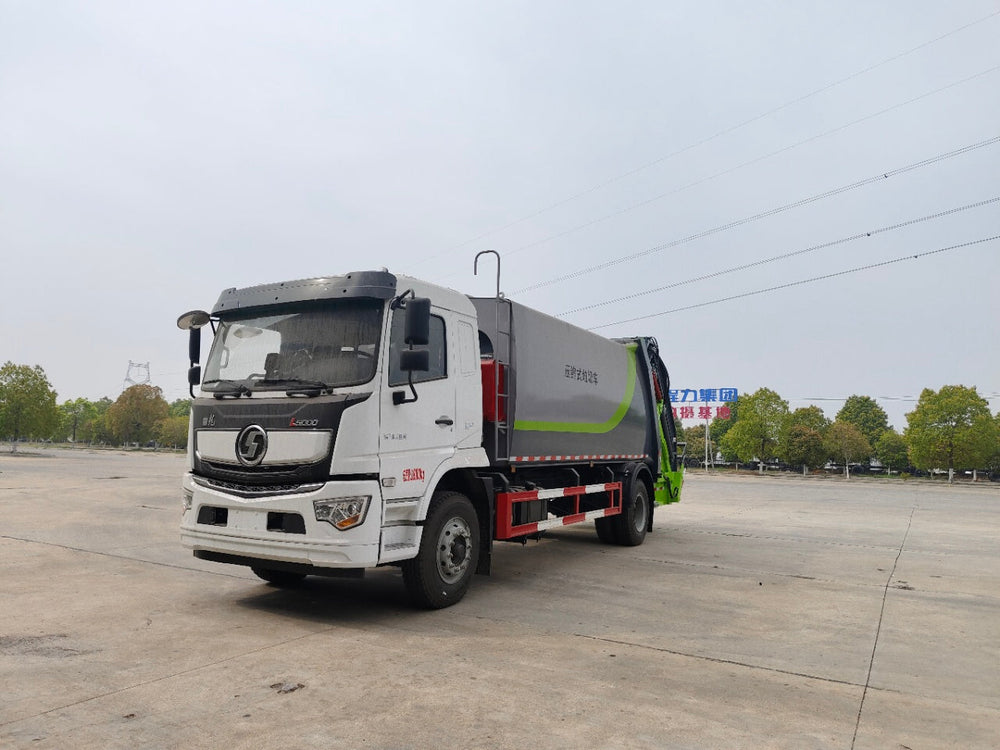

SHACMAN 10-18m³ Refuse Compactor Truck
Request a Quote Now
1. Chassis Configuration
| Parameter | Value |
|---|---|
| Cab Model | L5000 Cab |
| Engine Specification | Weichai 240 Horsepower |
| Transmission | Fast 8-speed Gearbox |
| Front Axle Rated Load | 4.8 Ton Front Axle |
| Rear Axle Type & Load | 10 Ton Single-stage Rear Axle |
| Tire Spec | 10.00R20 Steel Wire Radial Tire |
| Cab Interior Accessories | Original Factory Air Conditioner, Air Suspension Seat, Central Locking System, Electric Window Lifters |
2. Superstructure Tank Body Configuration
| Parameter | Value |
|---|---|
| Optional Tank Net Volume | 10 / 12 / 14 / 16 / 18 Cubic Meters |
| Main Body Material | High-strength Wear-resistant Steel Plate for Whole Body |
| Tank Plate Thickness | Side Plate: 5mm, Bottom Plate: 6mm |
| Filler Plate Thickness | Side Plate: 6mm, Bottom Plate: 8mm |
| Slide Plate & Slideway Thickness | 8mm |
| Pusher Cylinder Process | Quenching & Tempering Treatment, 3-stage Structural Design |
| Structural Advantage | Minimize space occupied by pusher plate, maximize tank volume for larger garbage loading capacity |
3. Electro-hydraulic System Configuration for Superstructure
| Parameter | Value |
|---|---|
| Power Take-off | Fengzheng Power Take-off Unit |
| Hydraulic Pump | Gear Pump |
| Multi-way Valve | Wesenbore Multi-way Valve |
| Auxiliary Valves | Balance Valve, Compression Valve, Throttle Valve |
| Hydraulic Cylinder | Liancheng Hydraulic Cylinder (all cylinders with quenching & tempering treatment and buffer structure) |
| High-pressure Hose | 3-layer Steel Wire Reinforced High-pressure Tubing |
| Steel Pipe Spec | Global-through Thickened 22# Steel Pipe, Wall Thickness: 2.2mm |
| Hydraulic Oil Tank | Equipped with 3-stage Filter Screen |
| Cylinder Pin Shaft Treatment | Surface Quenching Treatment, High Hardness, Anti-bending & Anti-fracture |
| Control System | CAN Bus Intelligent Touch Screen Operating System with Wireless Remote Control |
| Programmable Functions | Custom auto-cycle switching time, throttle output adjustment on touch screen |
| Diagnostic Function | Automatic Fault Detection & Alarm Reminder Function, Other Standard Full Accessories |
