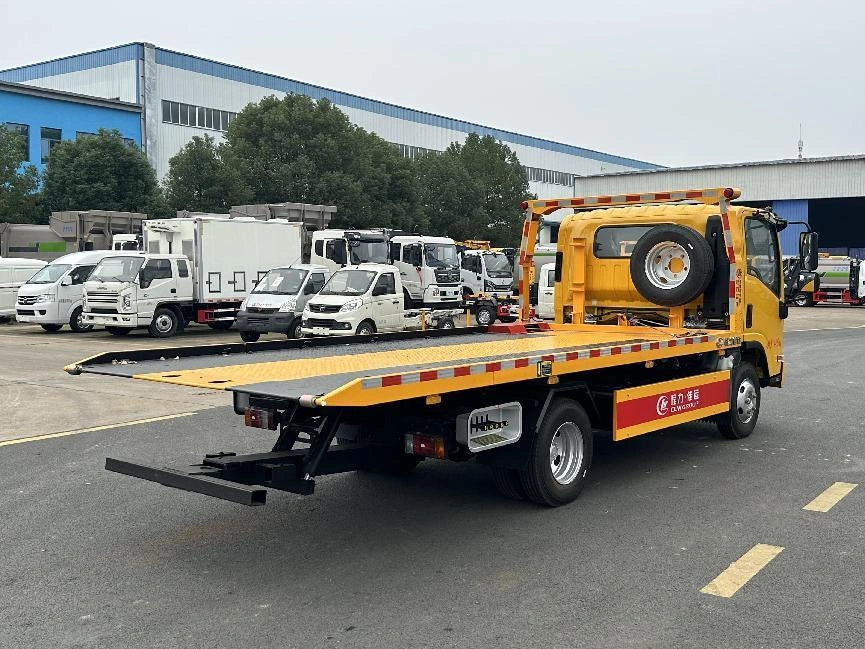

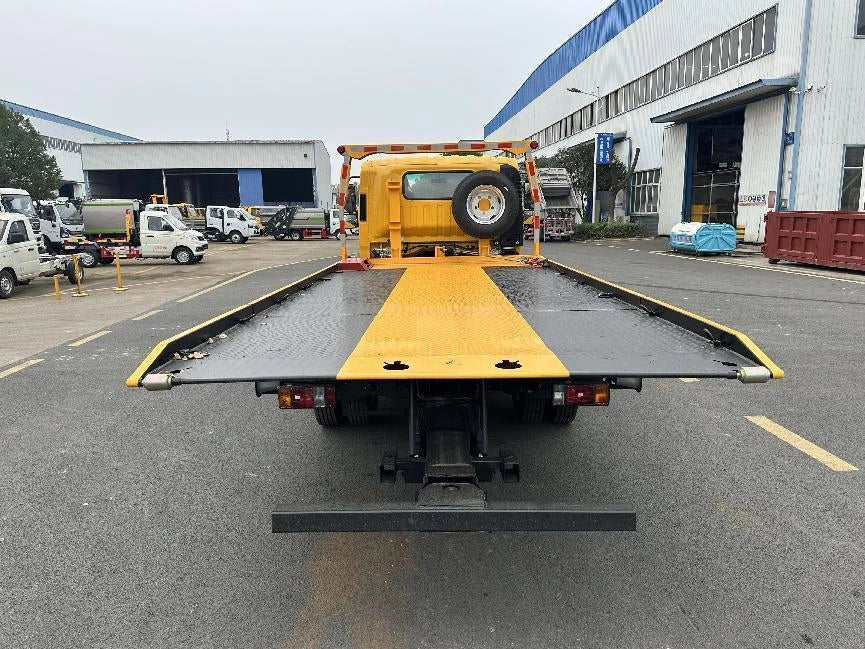

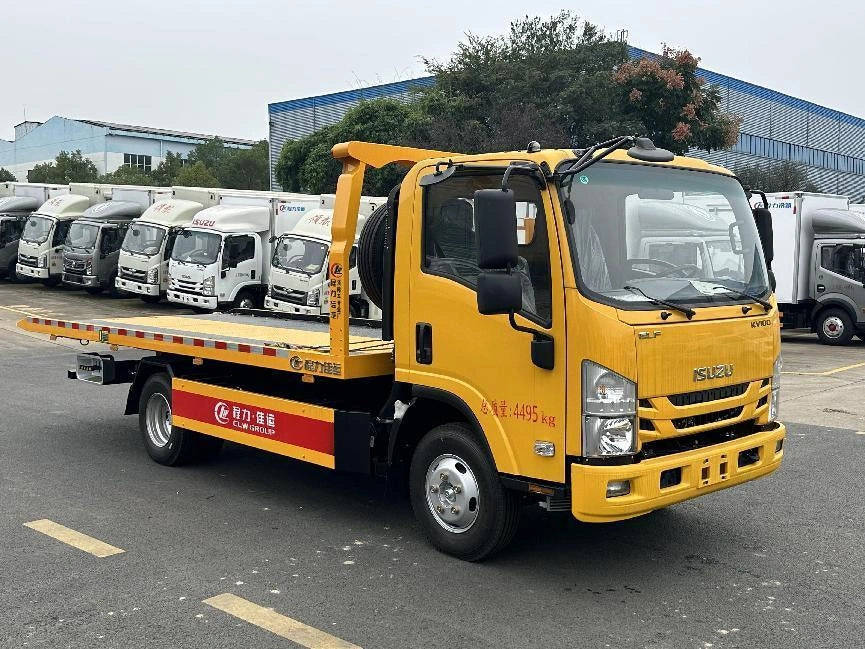

ISUZU Tow Truck (5-10T)

ISUZU Tow Truck (5-10T)
ISUZU Tow Truck (5-10T)
ISUZU Tow Truck (5-10T)
ISUZU Tow Truck (5-10T)
1 / 4
ISUZU Tow Truck (5-10T)
ISUZU Tow Truck (5-10T)
ISUZU Tow Truck (5-10T)
ISUZU Tow Truck (5-10T)

ISUZU Light/Medium-Duty Wrecker / Tow Truck (5–10T) – Key Specifications



Parameter Specification
Vehicle Type Light to Medium-Duty Wrecker / Flatbed Recovery Tow Truck
Chassis Series ISUZU N-Series (NLR / NMR / NPR / NQR) / KV800 / 700P / 100P
Drive Configuration 4×2
GVWR 4,500 – 10,550 kg
Curb Weight ~4,280 – 5,000 kg

Engine & Drivetrain



Parameter Specification
Engine Model ISUZU 4KH1CN5HS / 4JZ1-TCG62 / 4HK1-TC51 / 4KB1-TCG60
Horsepower 106 – 180 HP
Displacement 2,999 – 5,000+ cc
Emission Standard Euro V / VI / China VI
Transmission ISUZU MSB-5 / MYY-6 speed manual

Performance & Capacity



Parameter Specification
Max Towing / Loading Capacity 5 – 10 tons
Flatbed Platform Dimensions (L×W) 5,600 – 6,000 × 2,200 – 2,350 mm
Max Speed 110 – 115 km/h

Chassis & Dimensions



Parameter Specification
Overall Dimensions (L×W×H) ~7,280 – 7,950 × 2,200 – 2,400 × 2,400 – 2,450 mm
Wheelbase 2,475 – 4,475 mm
Tire Specification 7.00R16 / 7.50R16LT
Brake System Air brake, ABS
Suspension Leaf spring (8/6+5)

Recovery Equipment



Parameter Specification
Platform Type Full-floor flatbed, anti-slip perforated steel deck
Winch 1 × 4-ton hydraulic winch
Wire Rope Length 21 – 25 meters
Rear Support Arm 3.5-ton capacity
Control Dual-side linkage + wireless remote control
Accessories Tow forks, L-shaped tire holders, binding straps, chain hook, LED warning lights

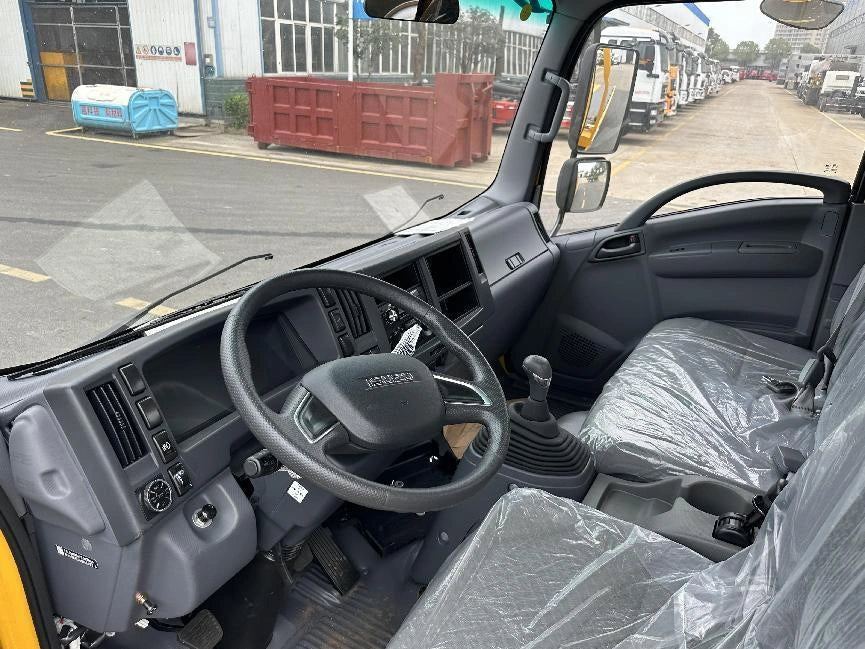

Cab & Features



Parameter Specification
Cab Type ISUZU KV800 / N-Series single row, 3 seats
Steering LHD / RHD available
Air Conditioning Standard
Additional Hydraulic tailgate, rotary wrecker option available
