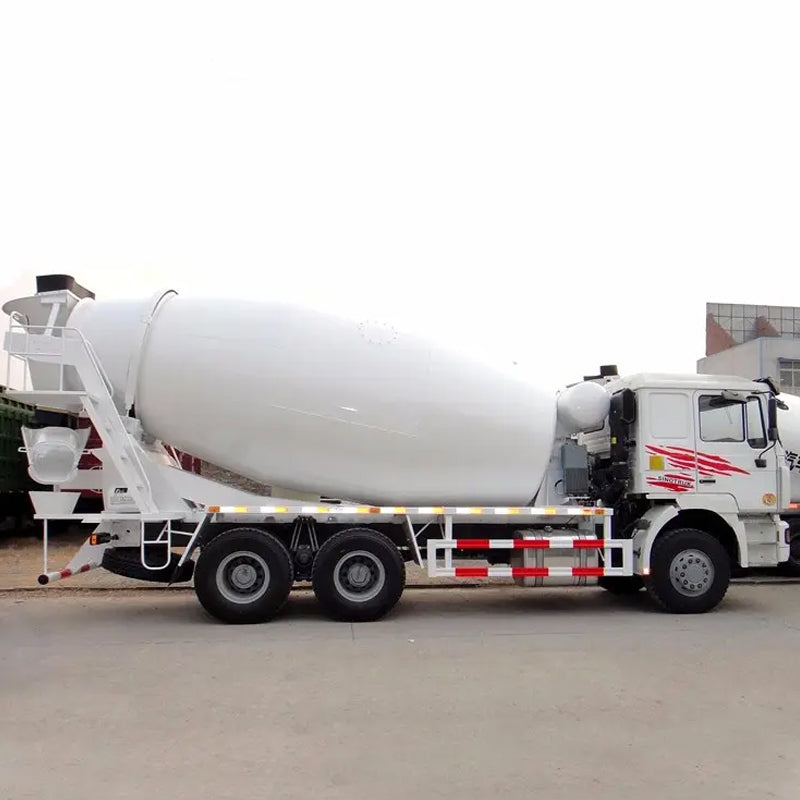

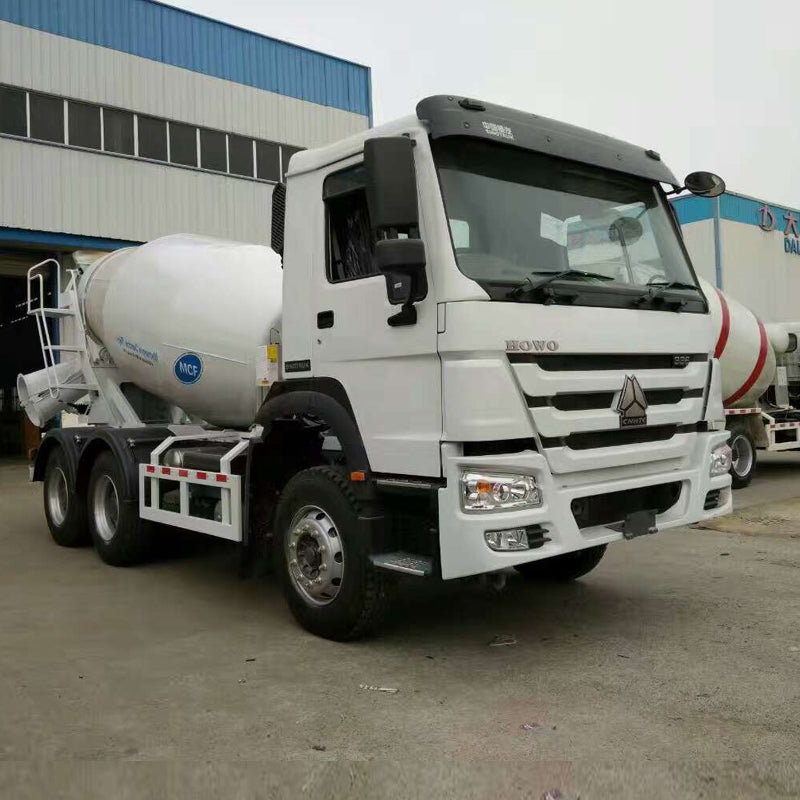

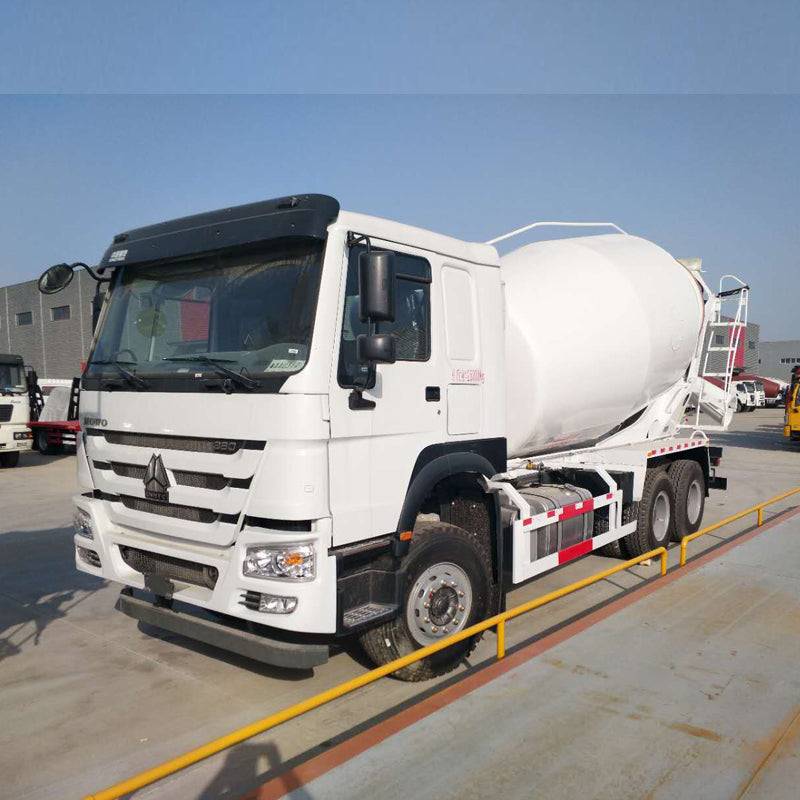

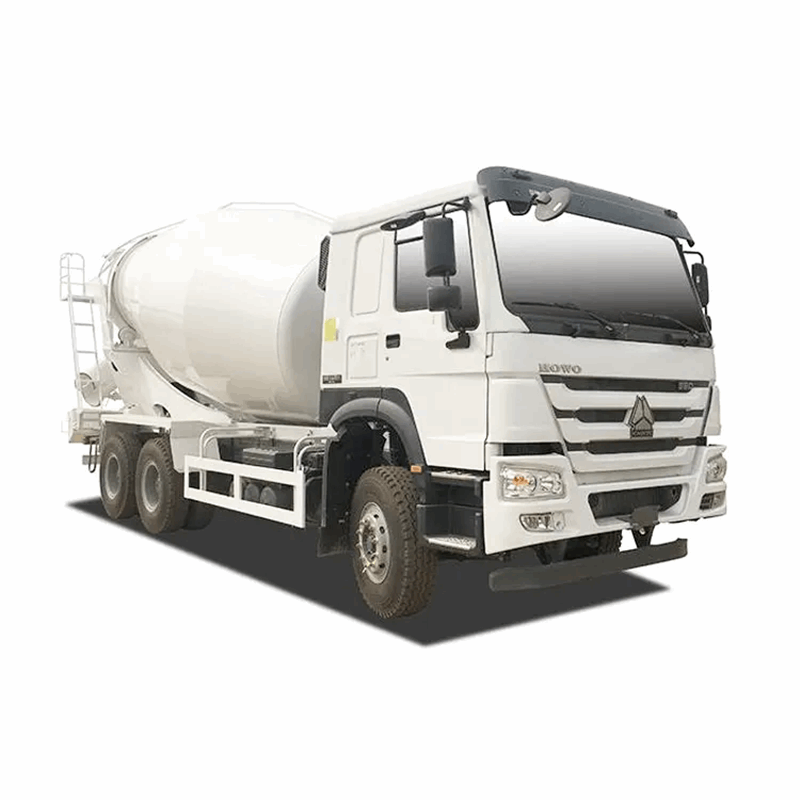

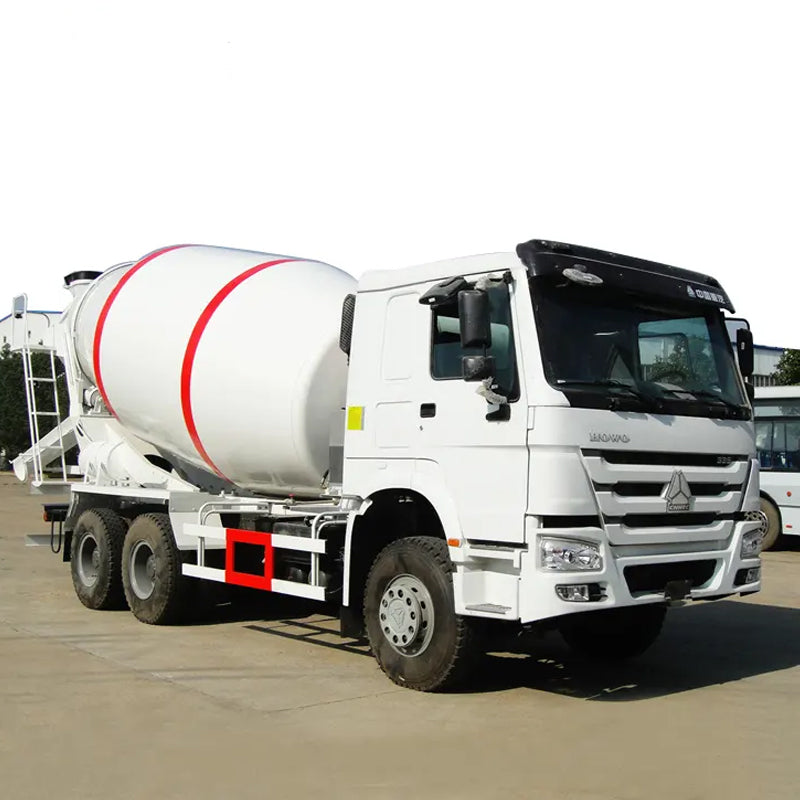

Concrete mixer truck is the fist product of CLW GROUP with a long history of manufacturing. The truck has compact structure design, advanced technology, convenient operation, excellent performance, beautiful and generous appearance, elaborate surface paint spraying, and the ability to transport a variety of collapse degrees and grades. This series of concrete mixer truck is a special vehicle to load, unload and transport concrete by adding a force extractor, reducer, hydraulic pump and hydraulic motor system and operating system to the second class chassis. Optional imported hydraulic parts can be installed to meet the needs of transporting different quality of concrete. The tank material can be selected from carbon steel, opaque steel, manganese steel, etc. to meet the needs of transporting different concrete.

Model:	ZZ1257N3847	Volume:	8cbm
Total Weight:	25000kg	Curbe Weight:	12800kg
Size of Outter:	9100×2496×3950(mm)	Drive style：	6x4
WheelBase:	3825+1350mm	Tire Size:	12.00R20
Transmission:	10-Speed	Tire Number:	10+1
Maximum speed (km/h):	90	Brake System:	Air Brake
Fuel Type:	Diesel	Emission Standard:	Euro 2
Engine Model:	WD615.69	Power:	336HP
Displacement:	9726ml

Standard Equipments:

Concrete mixer truck is mainly composed of automobile chassis, tank assembly, oil pump, oil motor, reducer radiator and pipe network system and transmission device, etc.
