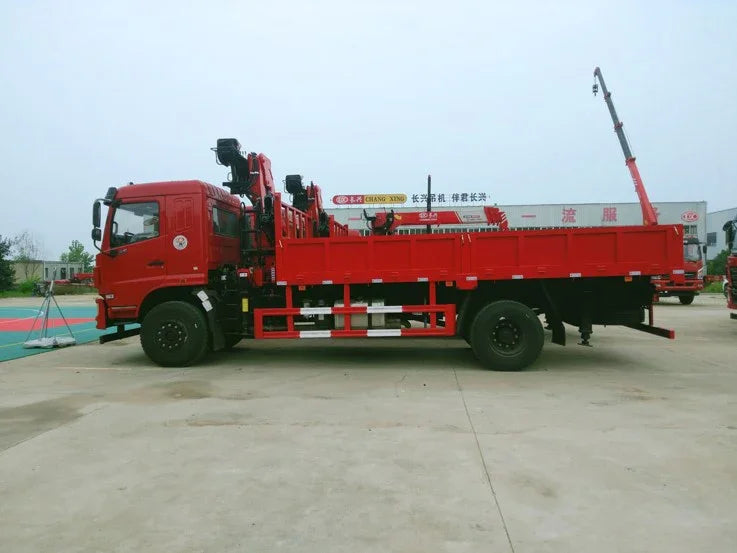

HOWO 5T Knuckle Boom Crane
Request a Quote Now
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
HOWO |
|
Chassis Model |
ZZ1187K501GF1 |
|
Drive Type |
Left Hand Drive 4*2 |
|
Vehicle Size(mm) |
8700*2500*3650 |
|
G.V.W(kg) |
18000 |
|
Engine Model |
WP4.6NQ240E62 |
|
Engine capacity |
4.58L |
|
Engine power |
240HP/177KW |
|
Emission Standard |
Euro 6 |
|
Wheelbase |
4500mm |
|
Cab Capacity |
3 |
|
Transmission |
HW95508STC2 gearbox + HW45ZC flange-type power take-off |
|
Front/Rear Axle |
7T/13T |
|
Tyre Size |
10.00R20 |
|
fuel tank |
200L |
|
Container Size |
5600 × 2400 × 600mm |
|
Container material |
Q235 carbon steel |
|
Container thickness |
Side panels 3 mm, bottom panel 5 mm. |
|
Crane Brand |
CX/SQZ100-3 |
|
Maximum lifting weight |
5T |
|
Working angle |
360-degree rotation |
|
Maximum lifting height |
10M |
|
Working radius |
7.67M |
|
Quantity of telescopic arm |
3-section |
|
Rear outriggers |
Equipped with |
|
3.Crane parameters |
|
|
|
|
