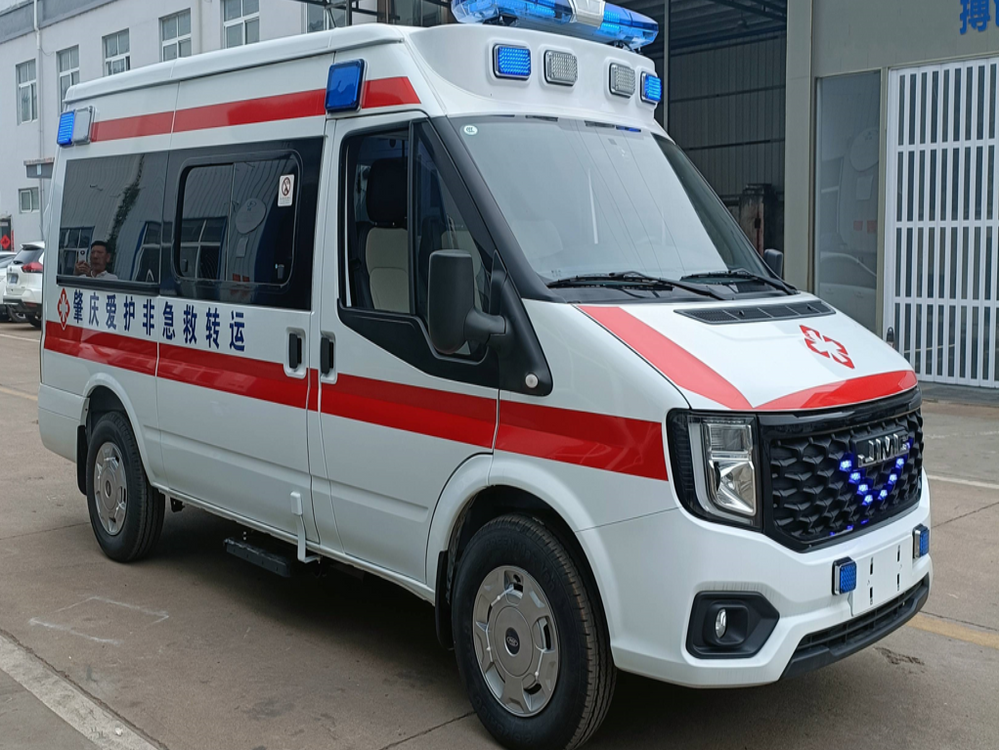

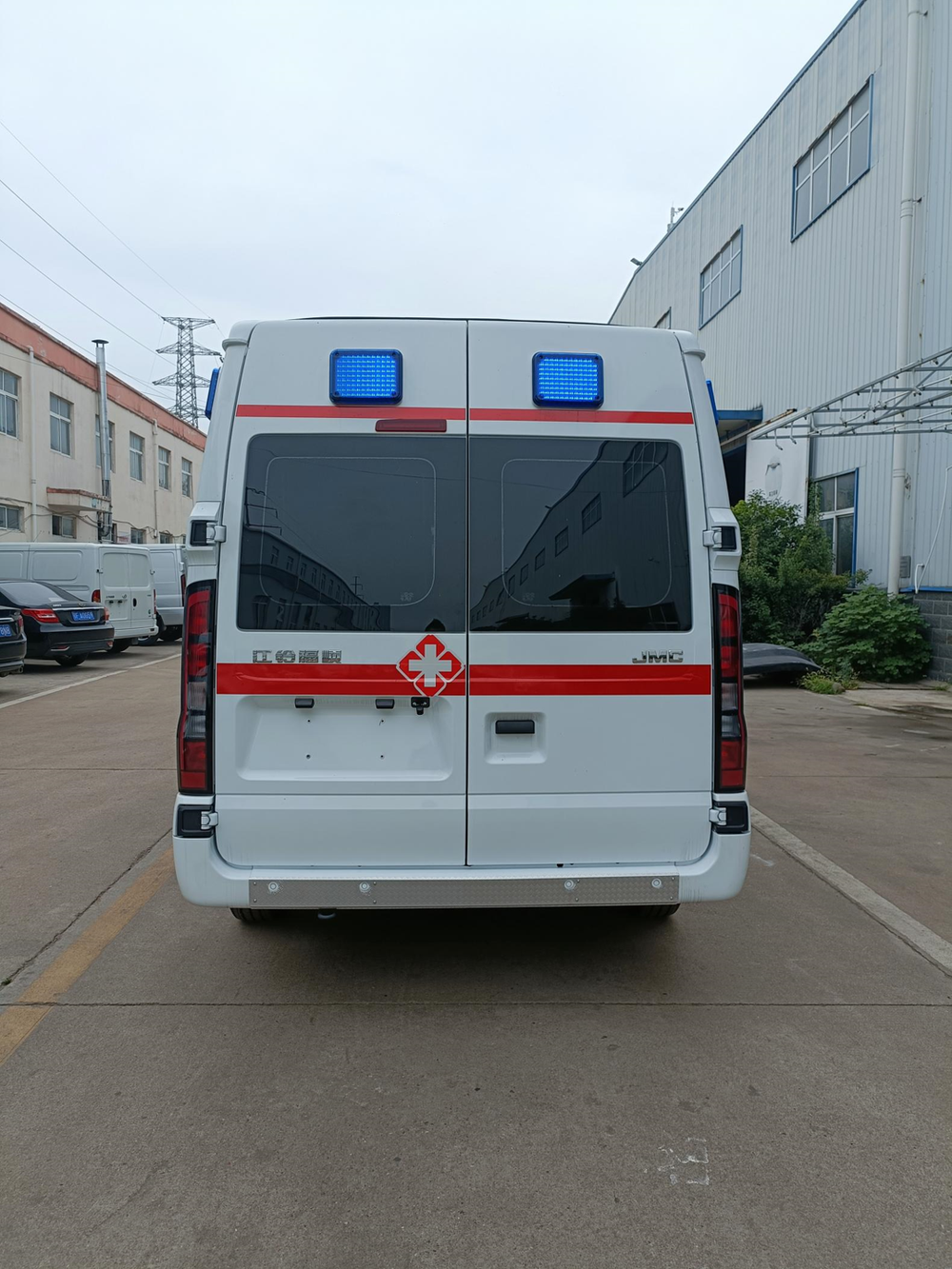

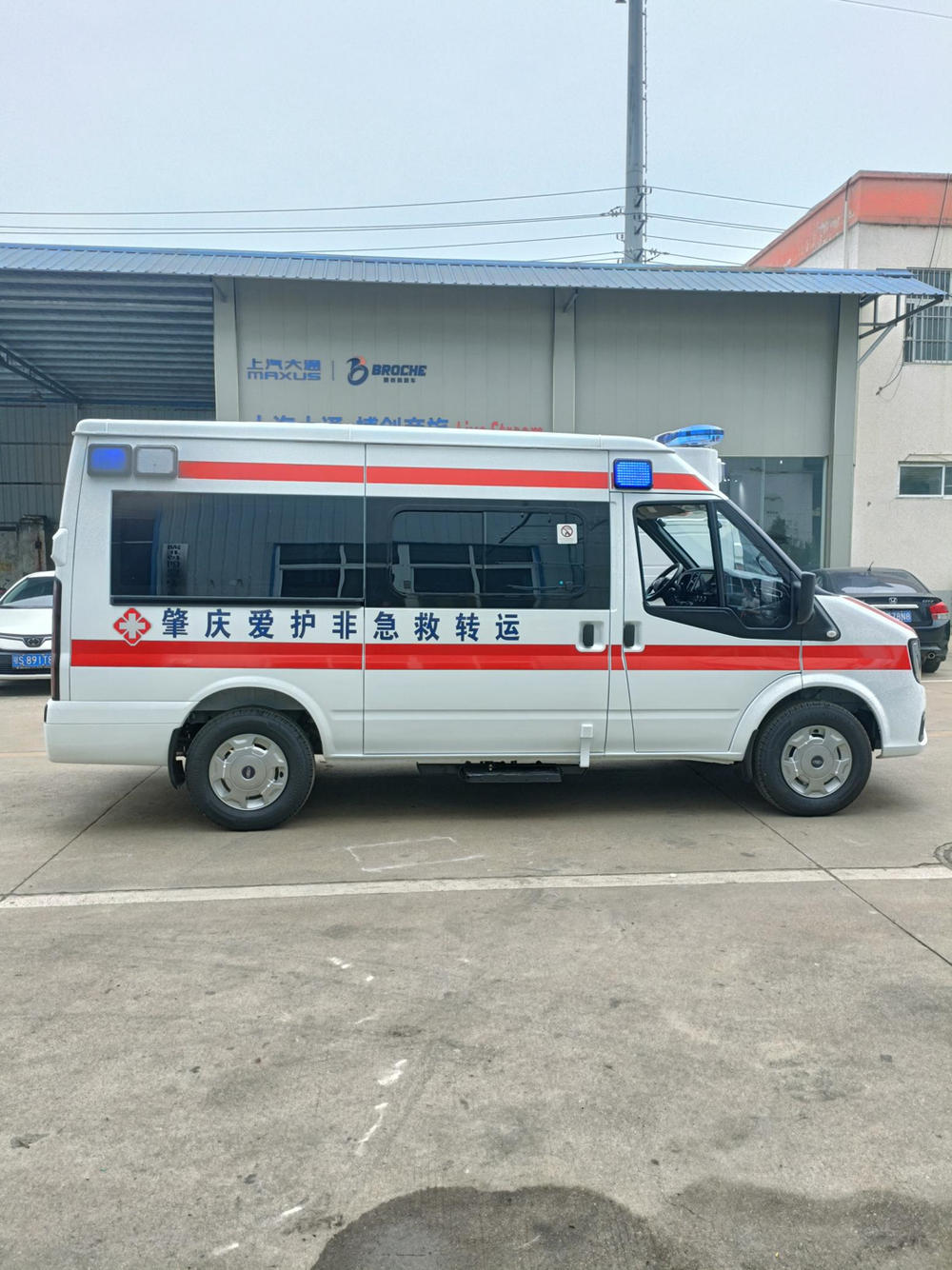

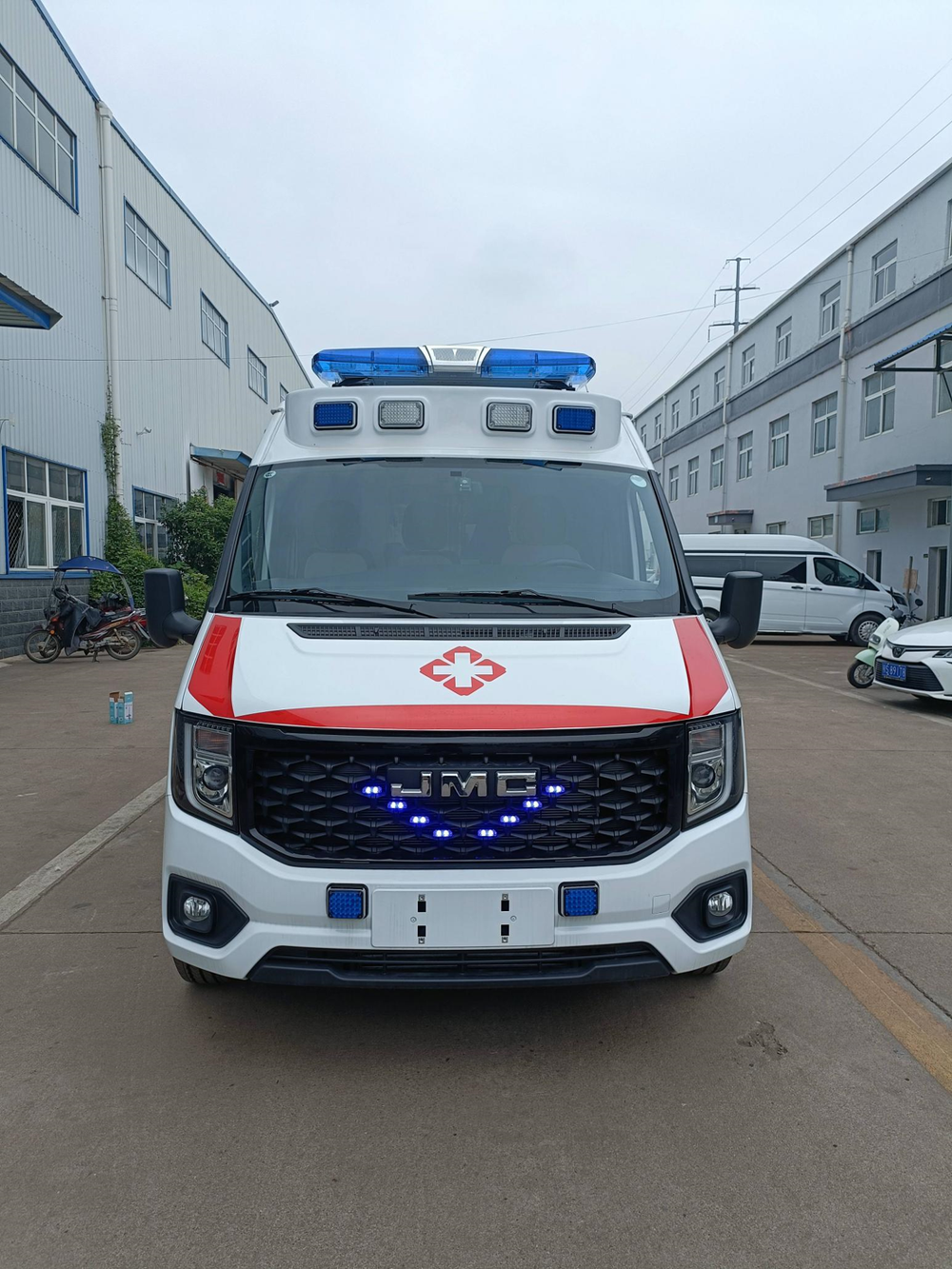

High-spec JMC Shunda Diesel Ambulance
Request a Quote Now
Parameter |
Value |
|---|---|
| Overall Length (mm) | 5495 |
| Overall Width (mm) | 1974 |
| Wheelbase (mm) | 3360 |
| Engine Model | JX4D20A6H National VI Engine |
| Power Output | 107 kW |
| Transmission | 6-speed Manual |
| Maximum Speed | 160 km/h |
| Fuel Tank Capacity |
80L |
Standard Equipment
| Item Description | Specification & Remark |
|---|---|
| Stretcher & Equipment | |
| A9 Premium Automatic Loading Stretcher, 1set | High-grade A9 type |
| Foldable Canvas Stretcher, 1set | Mounted at rear door |
| Track-type Stretcher & Guide Rail,1set | Fix loading stretcher |
| Sliding Infusion Hook,1set | Equipped with 2 movable hangers |
| Oxygen Supply System | |
| Two 10L Oxygen Cylinders,1set | Stored in left-rear oxygen cabinet of medical compartment |
| Oxygen Pressure Reducer,4sets | Regulate oxygen output pressure |
| Standard Oxygen Outlet,3pcs | National standard |
| Humidifier Bottle,2pcs | Moisturize inhaled oxygen |
| Quick Connector,1pc | Fast interface for ventilator |
| Appearance & Window Film | |
| Custom Decorative Stripe,1set | Made per client’s requirement |
| Full Black Solar Film + Frosted Semi-transparent Film for Cabin Window,1set | Protect patient privacy |
| Warning Lamp System | |
| Roof Front Row Convex Warning Light,1set | Nice outlook, strong warning effect |
| Convex Strobe Light on Cab,4pcs | Nice outlook, strong warning effect |
| Side Strobe Lights (4 white+2 blue),6pcs | Nice outlook, strong warning effect |
| Rear Door Top Blue Strobe Light,2pcs | Nice outlook, strong warning effect |
| Alarm & Light Control Box (inside cab),1set | Durable |
| Alarm Handle (inside cab),1set | Easy operation |
| Intelligent Power System | |
| 1000W+2000W Inverter,1pc | 24h uninterrupted power for medical cabin |
| 220V Power Socket,4pcs | Installed in medical cabin |
| 12V Power Socket,1pc | Installed in medical cabin |
| Independent Air Conditioner & Heater + Control Panel,1set | Separately controlled, integrated vehicle circuit panel |
| Multi-function Vent Fan,1set | Air intake & exhaust |
| LED Cabin Lamp,1set | Energy-saving & eco-friendly |
| LED Rear Cabin Lamp,1pc | Energy-saving |
| UV Disinfection Lamp,1pc | For sterilization |
| Door Courtesy Lamp,1pc | Energy-saving |
| Large-screen On-board Navigation,1set | |
| Dashcam + Rearview Camera All-in-one,1set | Integrated machine |
| Rear Radar + Medical Cabin Monitoring Camera,1set | |
| Front-rear Intercom,1set | Hands-free |

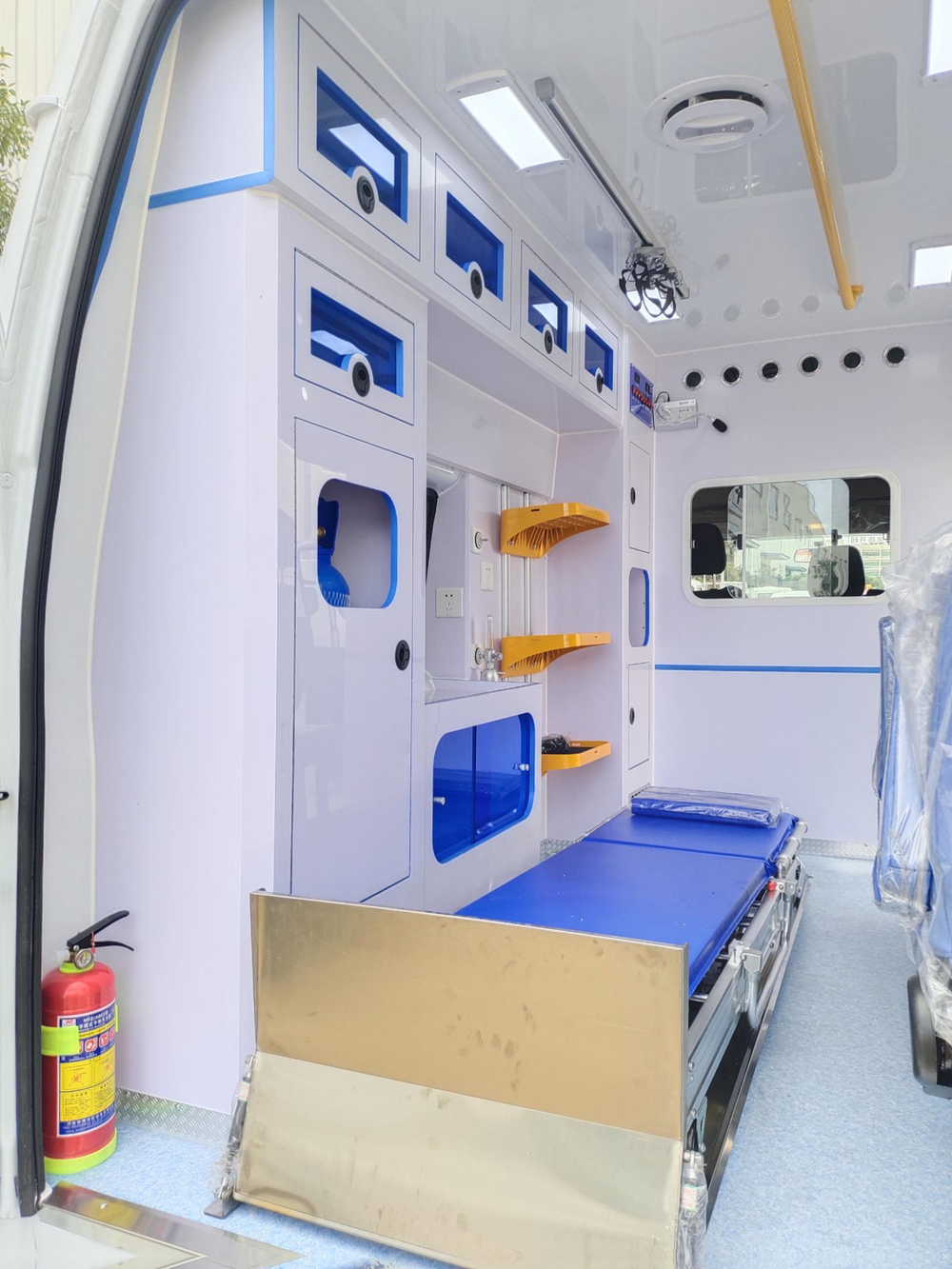

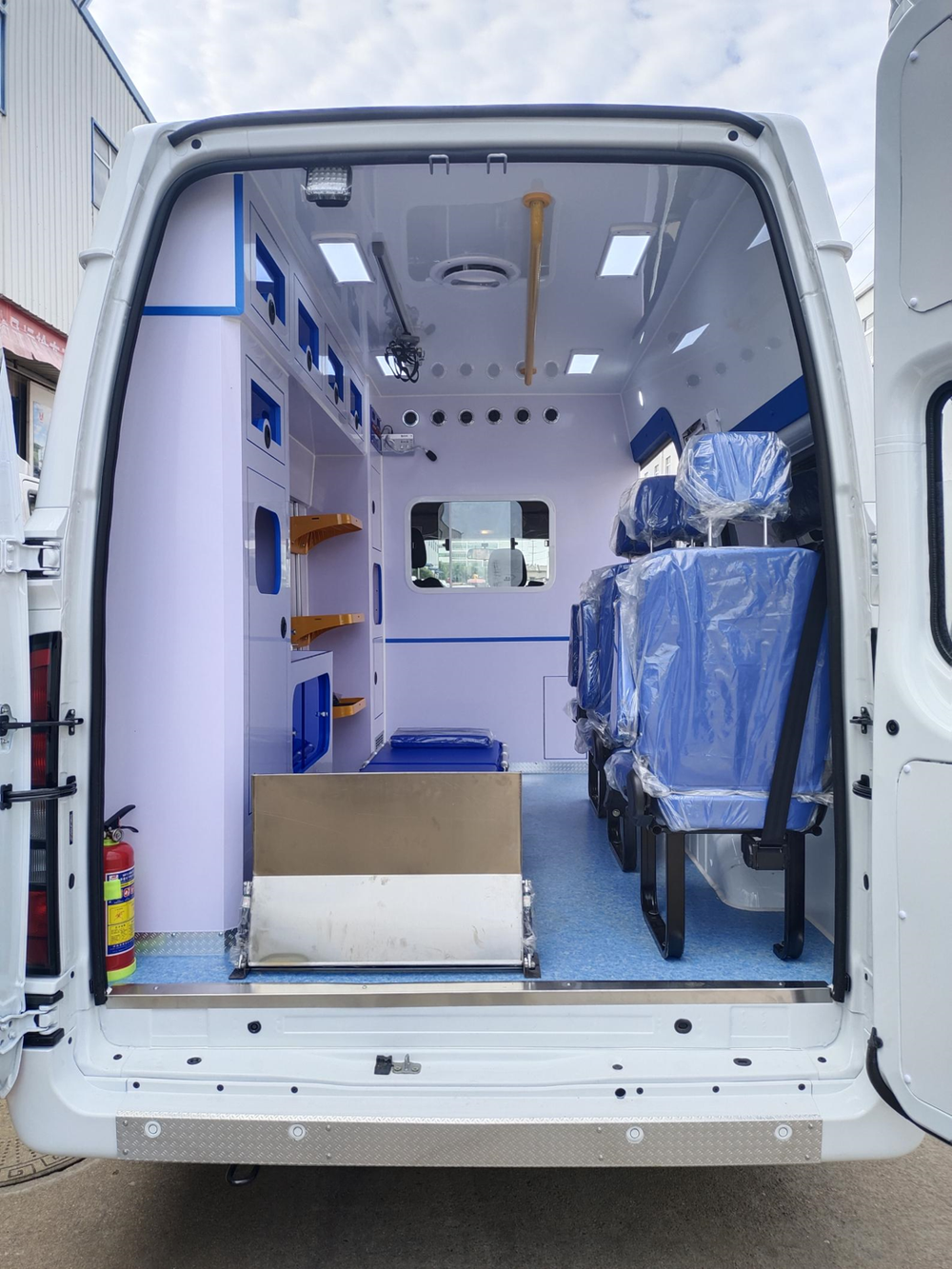

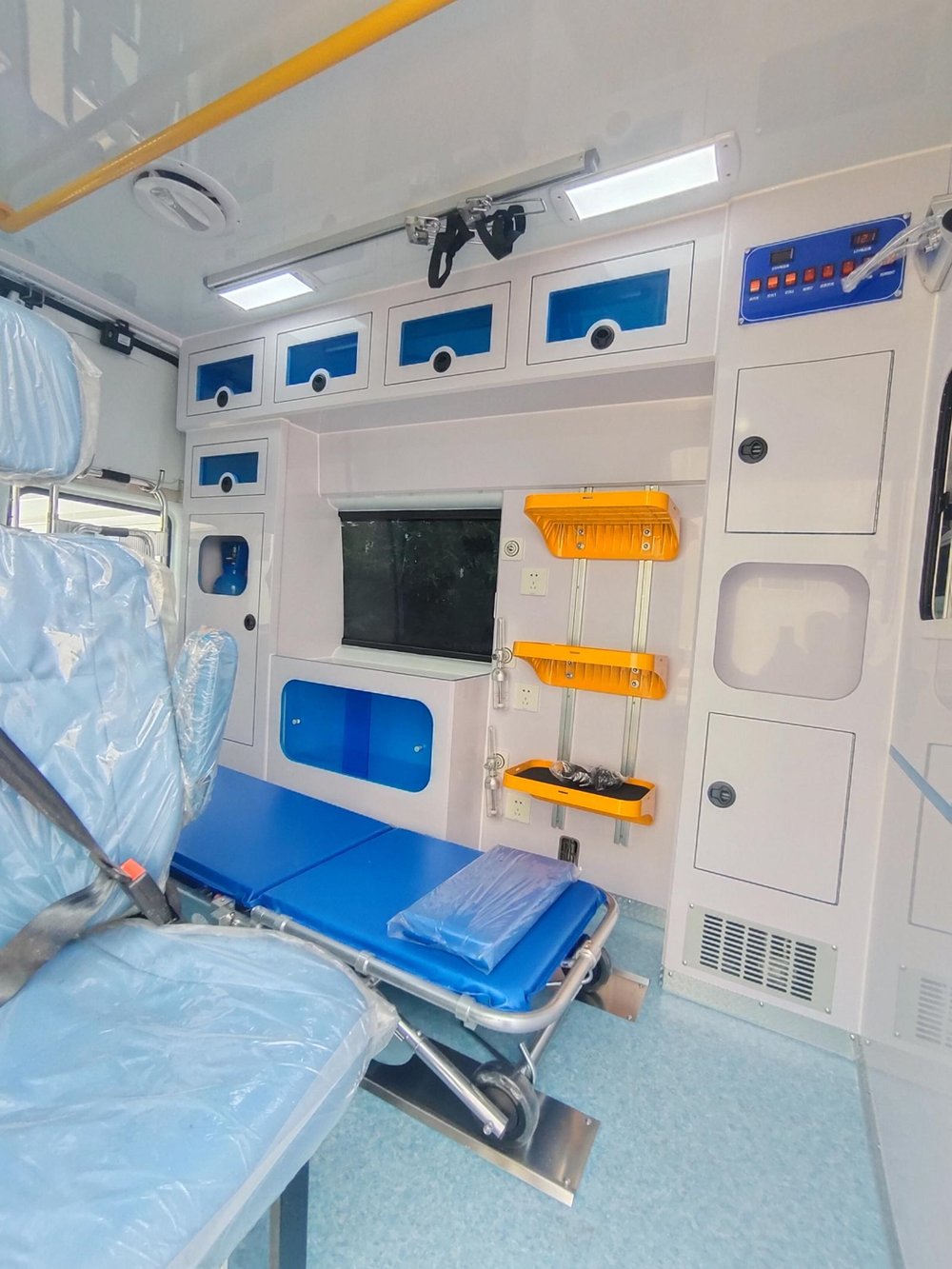

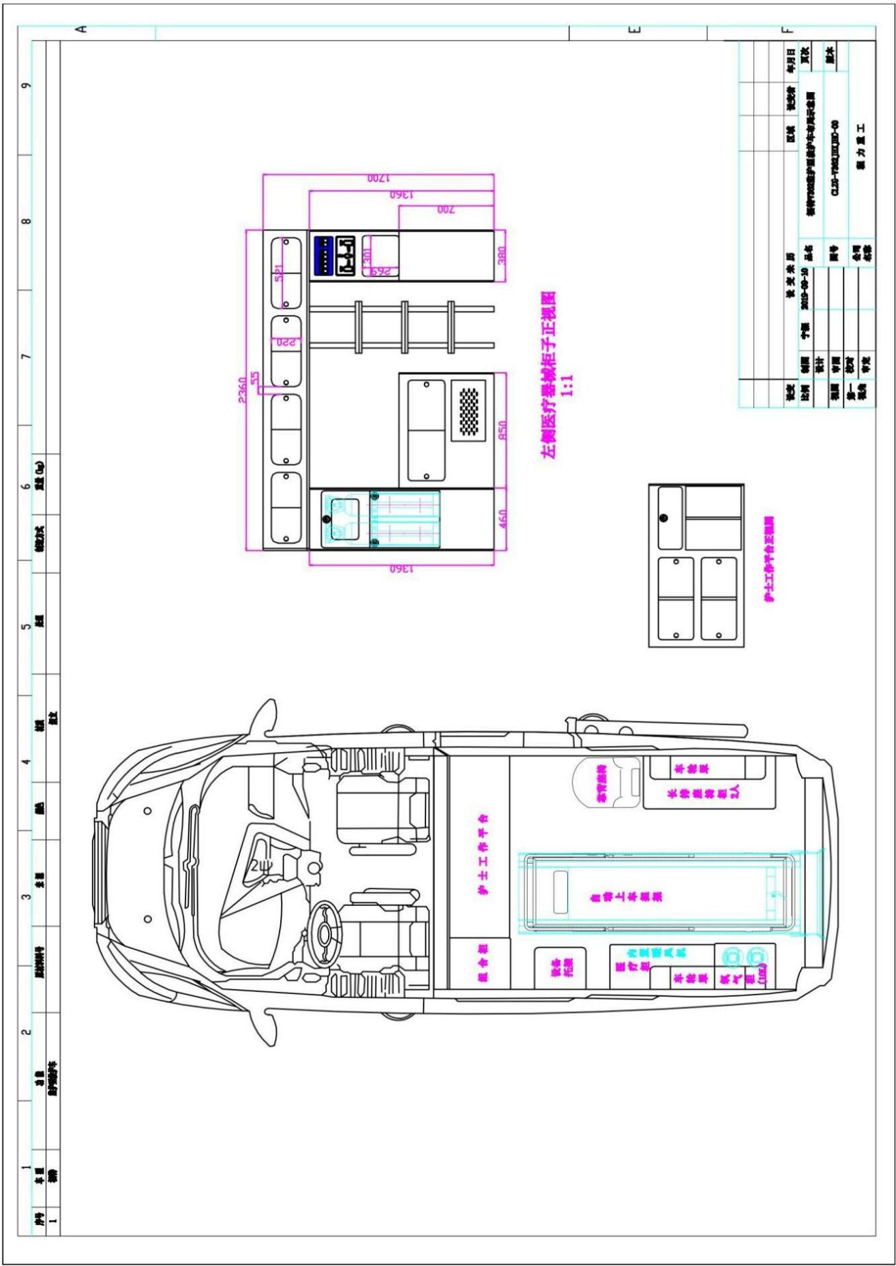

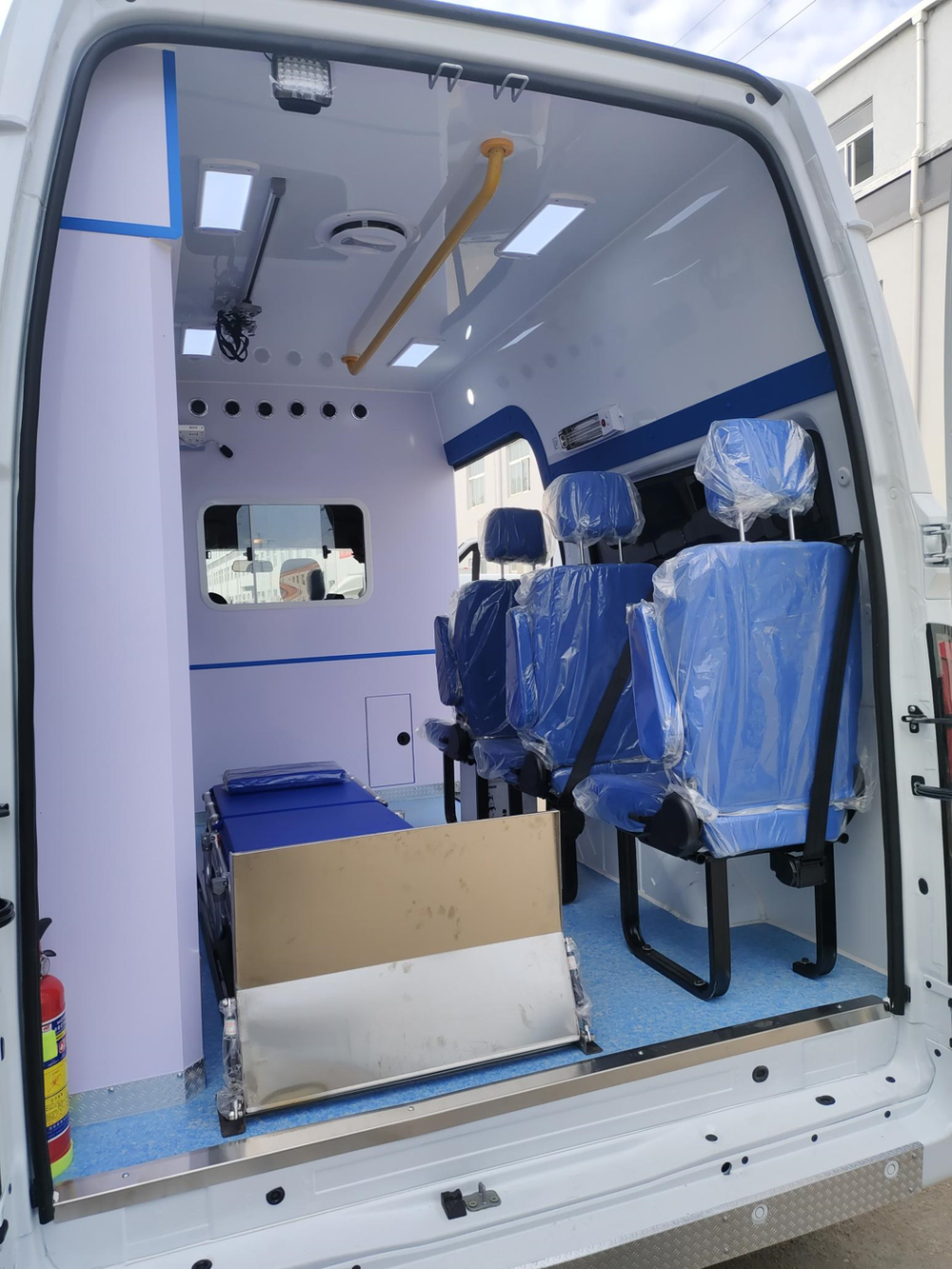

| Medical Cabin Cabinet & Seat System | |

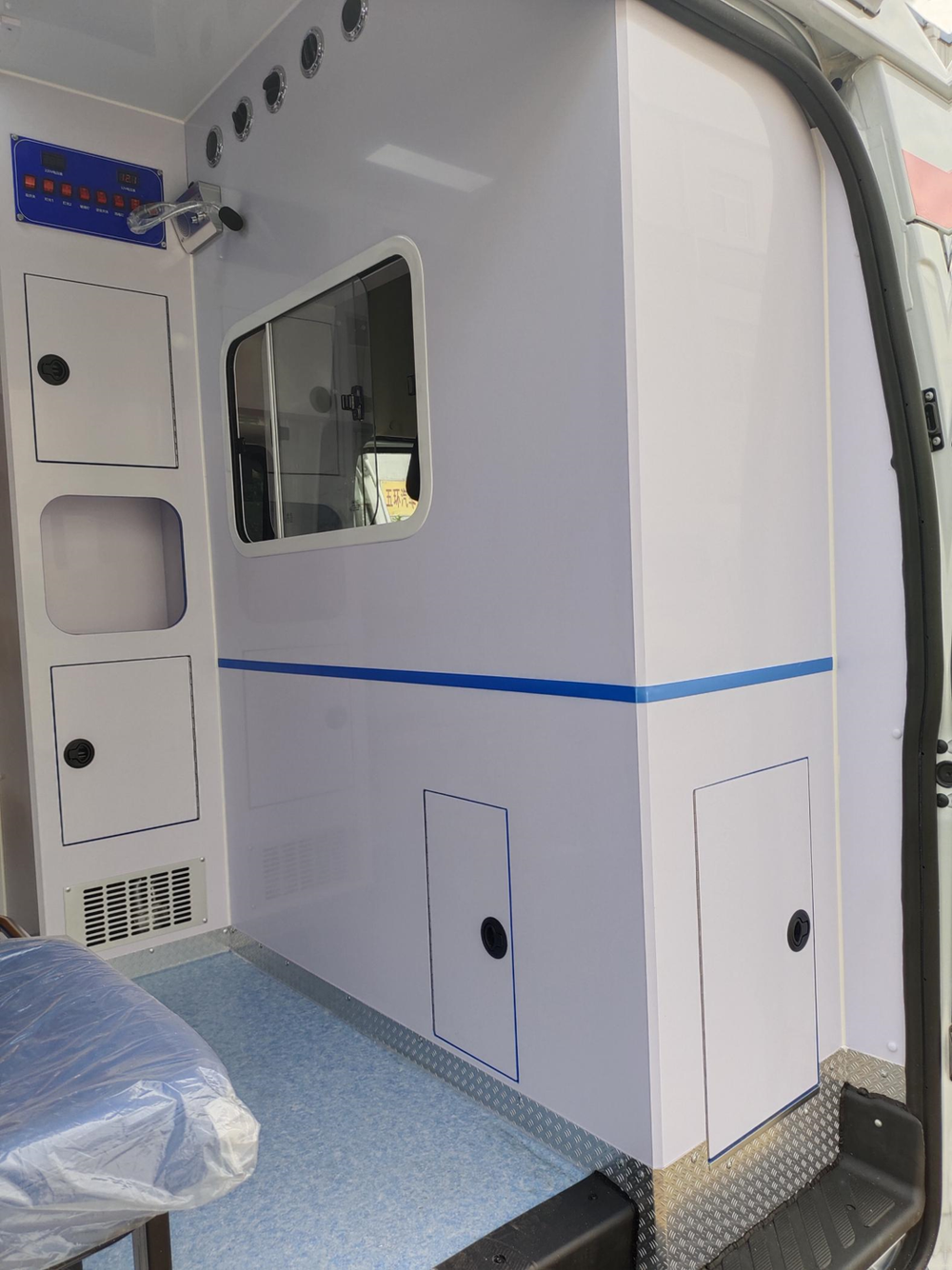

| Partition Assembly between Cab & Medical Cabin,1set | With sliding window |

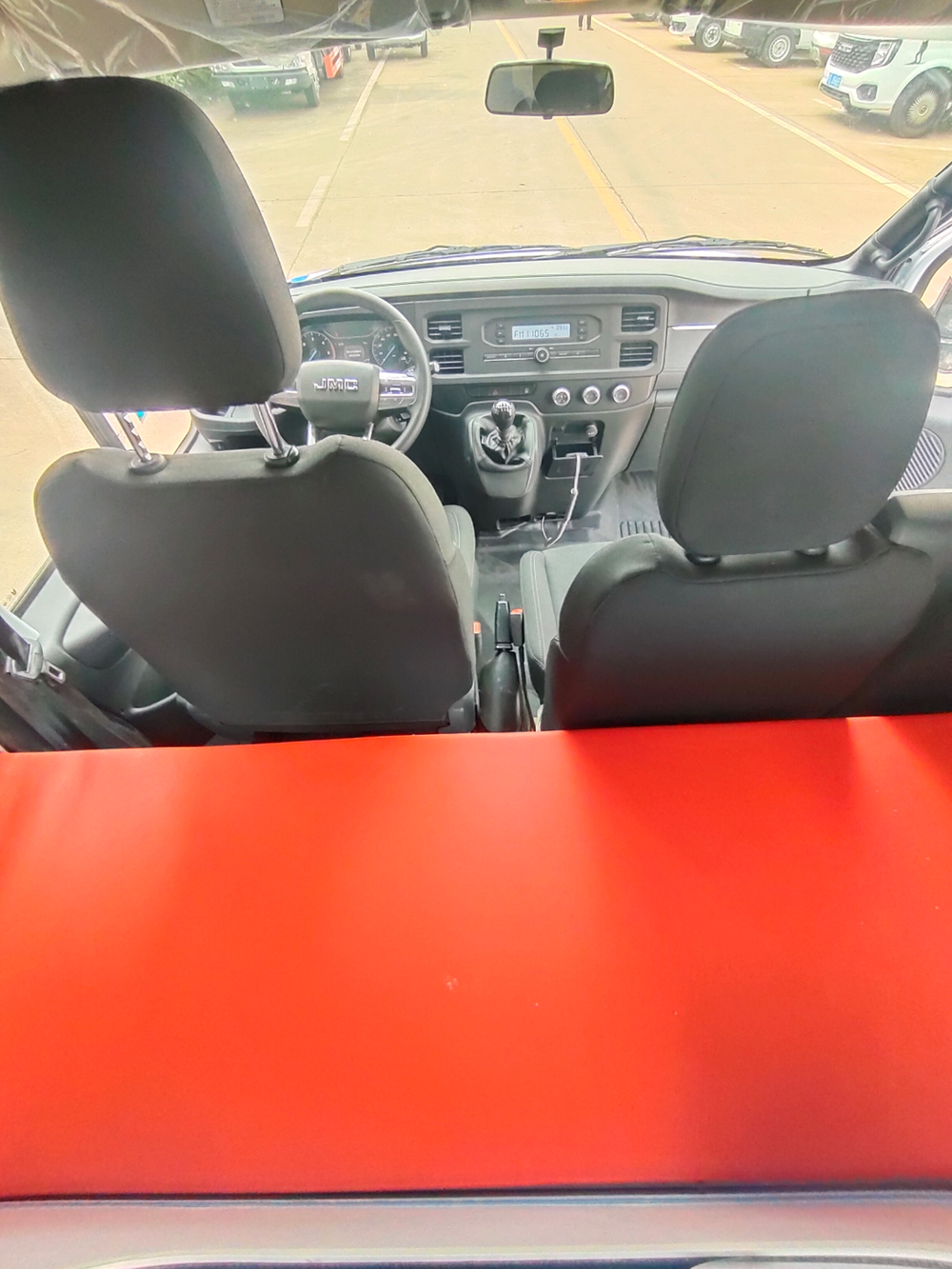

| Cab with Berth + Two 40L Oxygen Cabinets under berth,1set | Customized as per customer request |
| Left-front Storage Cabinet of Medical Cabin,1set | Store medical supplies |
| Window-side Medical Cabinet,1set | With equipment platform |
| Left-rear Oxygen Cabinet,1set | Hold two 10L oxygen bottles |
| Top Long Wall Cabinet on Upper Left,1set | For storage |

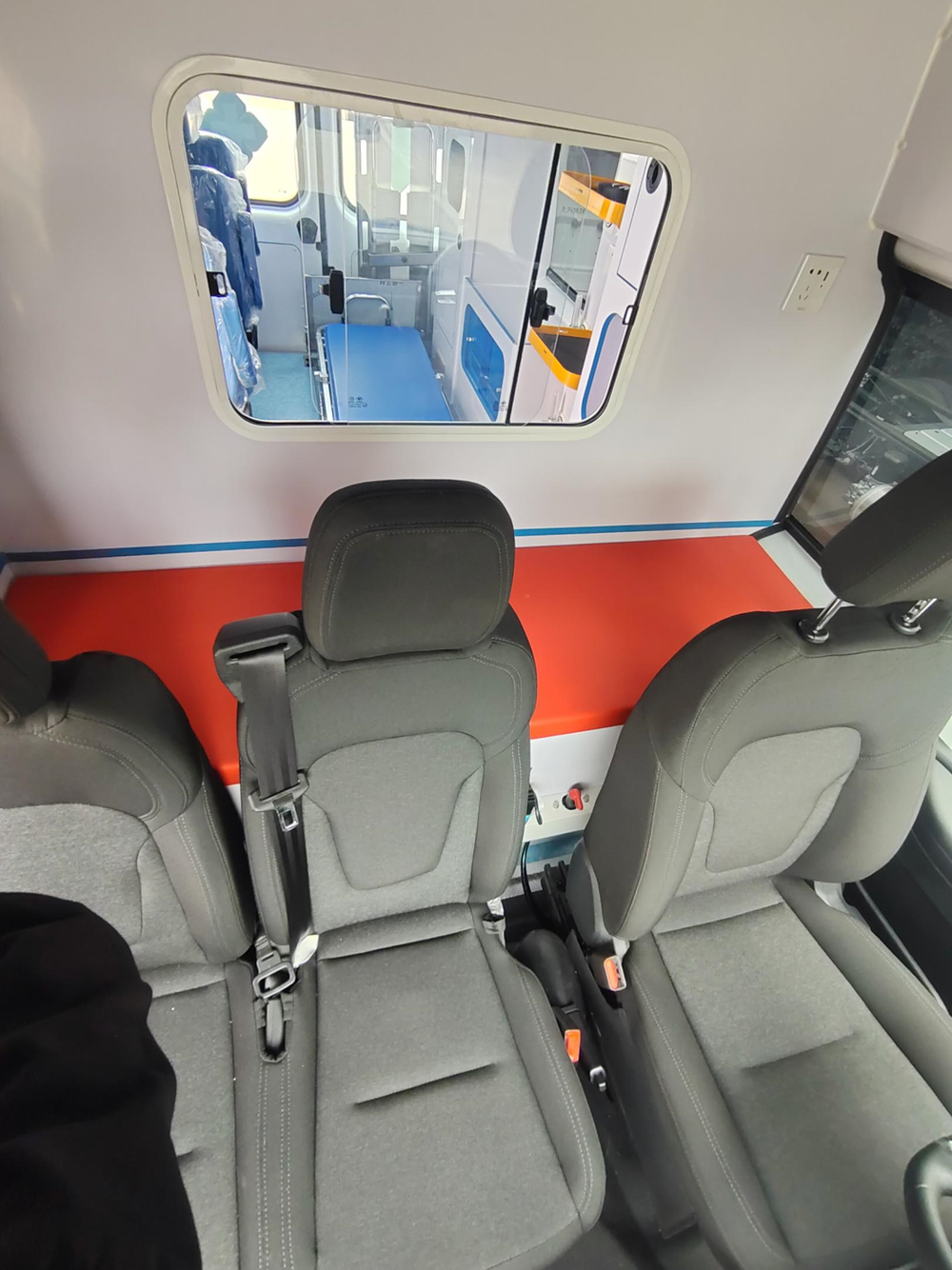

| Independent Right Seat + Long Bench,1set | For medical staff & patient families |
| Aluminum Composite Ceiling Liner,1set | Elegant & easy to clean |
| 3-tier Adjustable Equipment Rack,1set | Fix medical devices |
| Medical Grade Anti-bacterial Floor Mat,1set | Waterproof, anti-corrosion, wearproof & antibacterial |
| Full Cabin Surround Trim,1set | Anti-collision, neat & easy to clean |
| Auxiliary Accessories | |
| Ceiling Handrail,1pc | Yellow painted |
| Entry Handrail,1pc | Yellow painted |
| Middle Door Mechanical Foot Step,1pc | Mechanical pedal |
| Middle Door Sliding Window,1set | Improve cabin ventilation |
| Cab Seat Surround Wrap,1set | Beautiful & easy to clean |
| Foot-operated Medical Waste Bin,1pc | Pedal type |
| Dry-powder Fire Extinguisher for Cabin,1pc | Dry powder type |
