DongFeng 6×4 Palfinger Telescopic Boom Crane
Request a Quote Now
1. Basic Chassis & Mass Parameters
| Parameter | Value |
|---|---|
| Chassis Model | LZ1255H5DCT |
| Optional Curb Weight | 19000KG / 18500KG / 18000KG / 17600KG / 16800KG / 16100KG / 15800KG |
| Crane Approval Scope | 12–14 tons, complete official filing documents for all domestic truck-mounted cranes, trouble-free license registration |
| Optional Wheelbase Combinations | 5850+1350mm / 4800+1350mm / 4350+1350mm / 3850+1350mm (long & short wheelbase options) |
| Overall Length Options | 12000mm, 10900mm, 10300mm, 9580mm |
| Cargo Box Length Options | 8400mm, 7200mm, 6600mm, 6000mm |
2. Chassis & Powertrain Configuration
| Parameter | Value |
|---|---|
| Engine Model & Displacement | YCS07L300-66 engine, 7L displacement |
| Transmission Model | Fast 9JS119T-B with QHG50 flange power take-off |
| Axle Rated Load | Front axle: 6.5T, Rear tandem axles: 2×13T, Final drive ratio: 5.143 |
| Differential Lock | Inter-wheel differential lock + inter-axle differential lock, oil-lubricated wheel hub reduction |
| Clutch Specification | Φ430 pull-type clutch |
| Leaf Spring & Fastener | 11/10-leaf spring with double saddle bolts |
| Main Frame | 300(8+8+4) Baosteel 750 three-layer pressed through-type frame, with reinforcing subframe connecting plates & rear outrigger connecting plates; 4-stage plastic spraying, alkali cleaning & coating process |
| Fuel Tank | 350L aluminum fuel tank |
| Tire Size | 11.00R20 steel wire radial tire |
| Electrical System | 150AH storage battery, 80A alternator, maintenance-free battery, double saddle bolts |
| Throttle Control | Rocker arm self-reset remote accelerator |
| Auxiliary Function | Under-chassis start & stop function |
| Exterior Bumper Parts | Color-matched bumper & fenders, high-position bumper, reinforced front leaf spring |

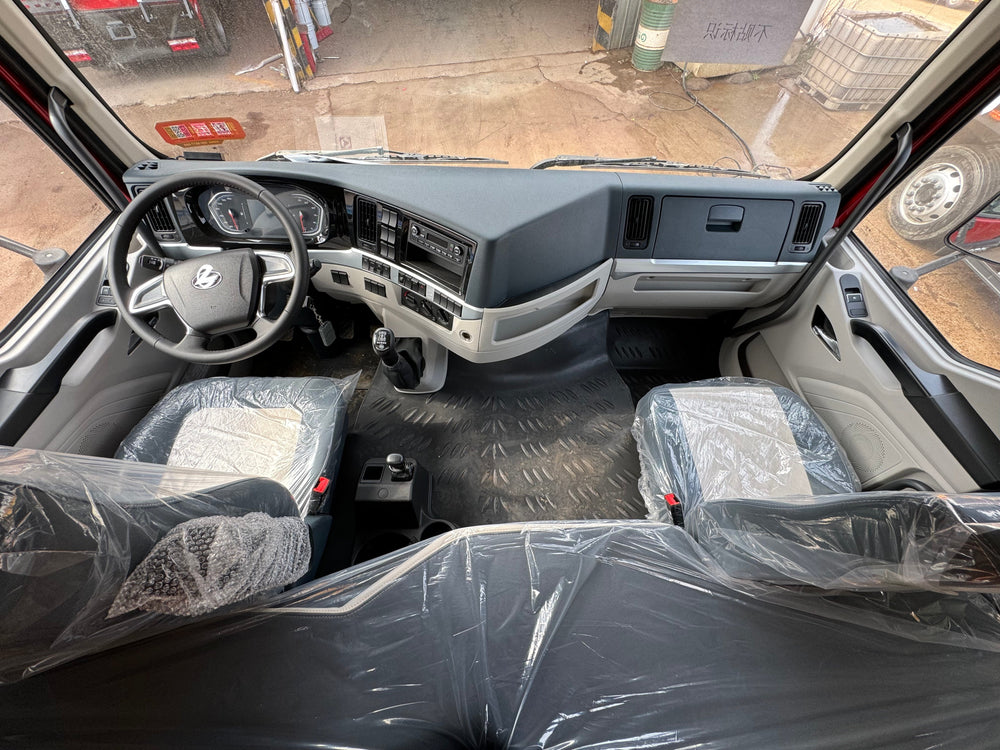

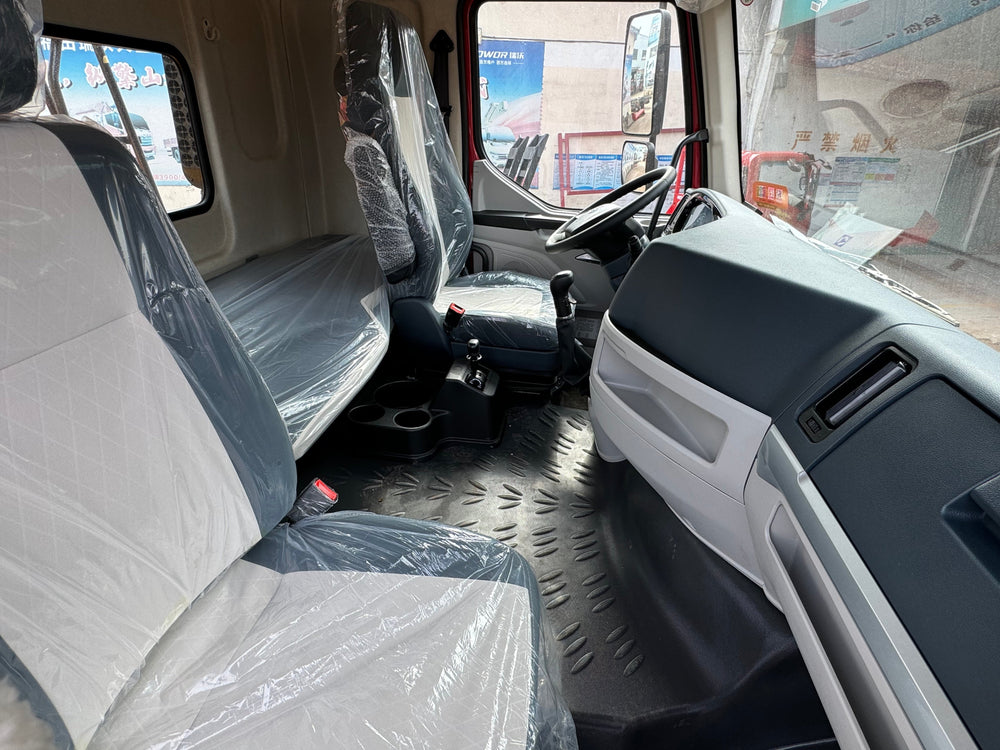

3. Cab Configuration
| Parameter | Value |
|---|---|
| Cab Type & Height Adjustment | H51S height-adjustable cab with H5 sticker |
| Cab Suspension | Four-point precisely adjustable full-floating cab suspension (exclusive domestic technology) |
| Cab Tilting System | Manual hydraulic tilting structure |
| Seating System | Knitted air suspension driver seat, fixed knitted passenger seat |
| Steering Wheel | Leather steering wheel |
| Window Control | Electric window lifters |
| Central Lock | Remote control central locking |
| Air Conditioner | Manual air conditioner |
| On-board Terminal | Driving recorder, compatible with Beidou & GPS positioning, Chenglong V+ internet of vehicles system |
| External Accessory | External sun visor |
| Control & Safety Switches | Multi-state switch, right-turn reminder function, overspeed alarm function |
| Audio System | MP3 + Radio |
| Instrument Panel | 5-inch black & white combination meter |
| Exterior Logo & Lighting | Standard brand logo, halogen headlamp |
| Brake System | Equipped with ABS |

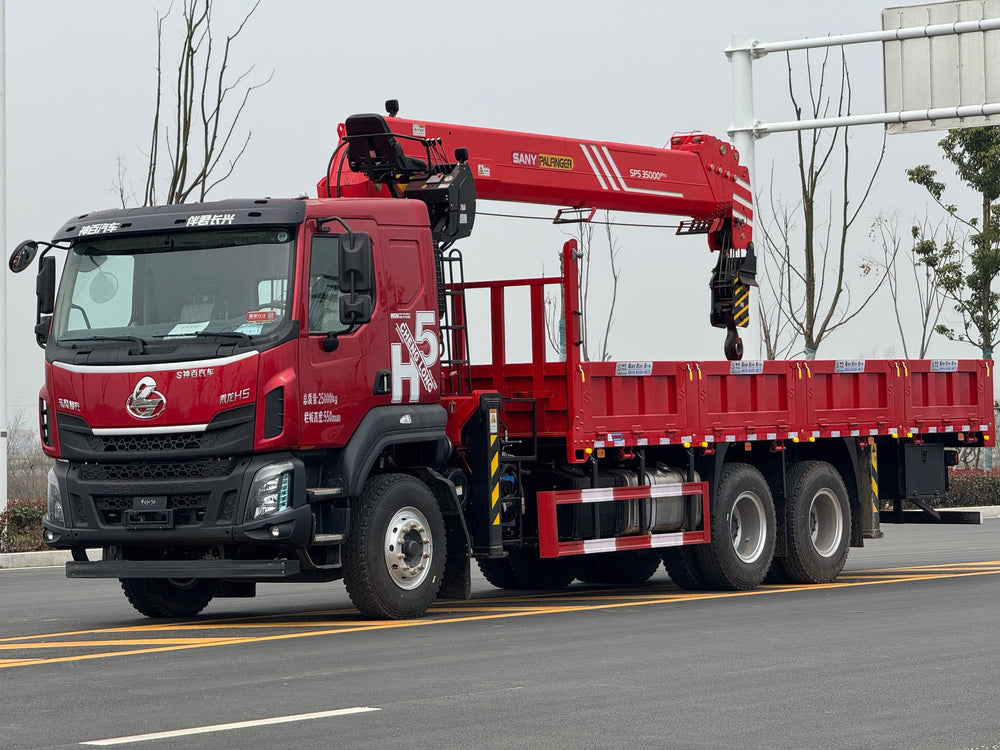

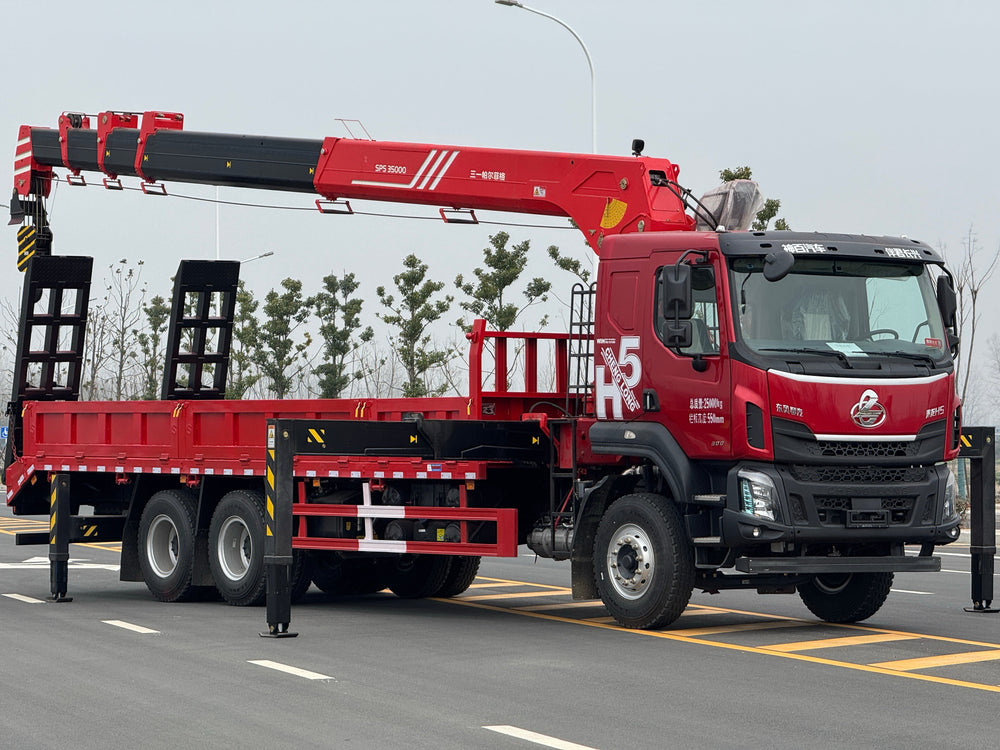

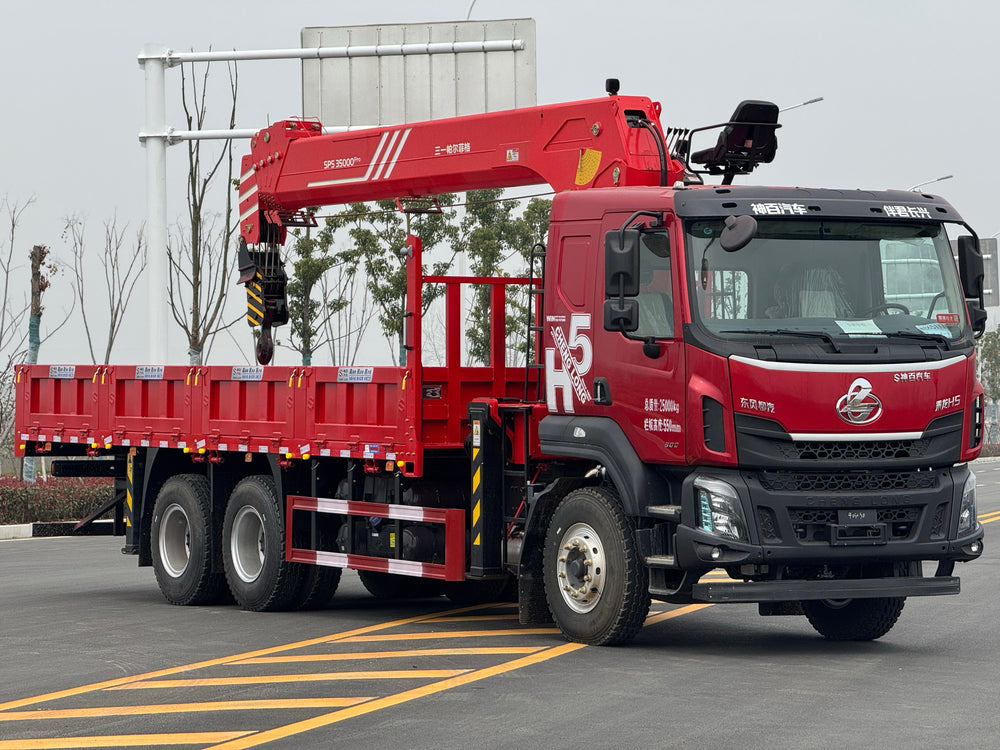

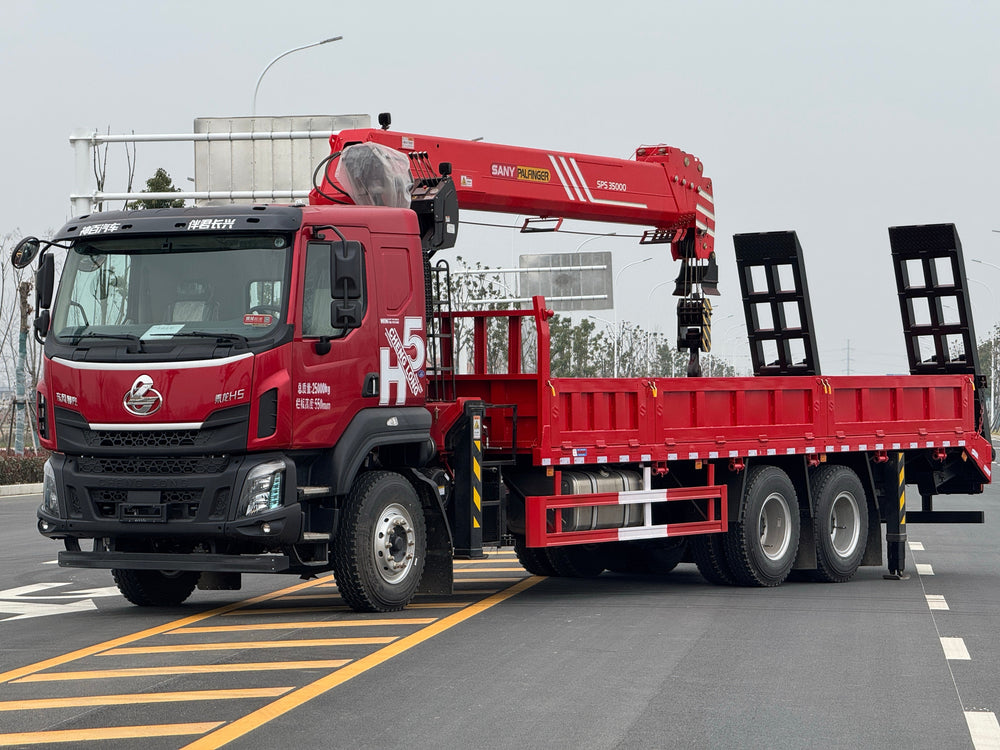

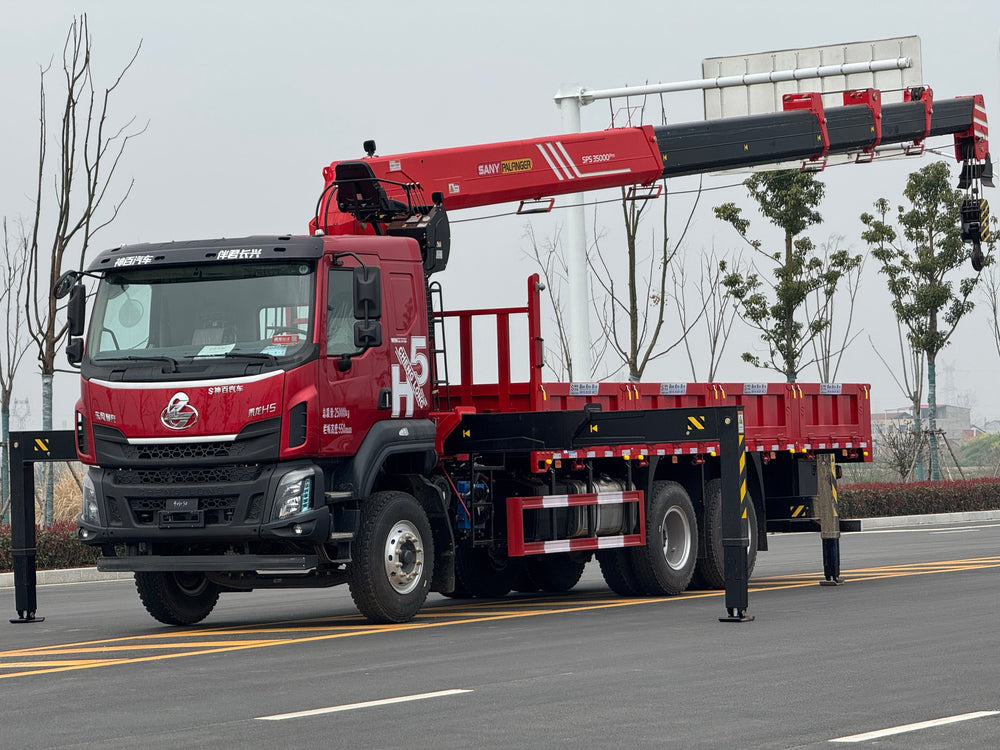

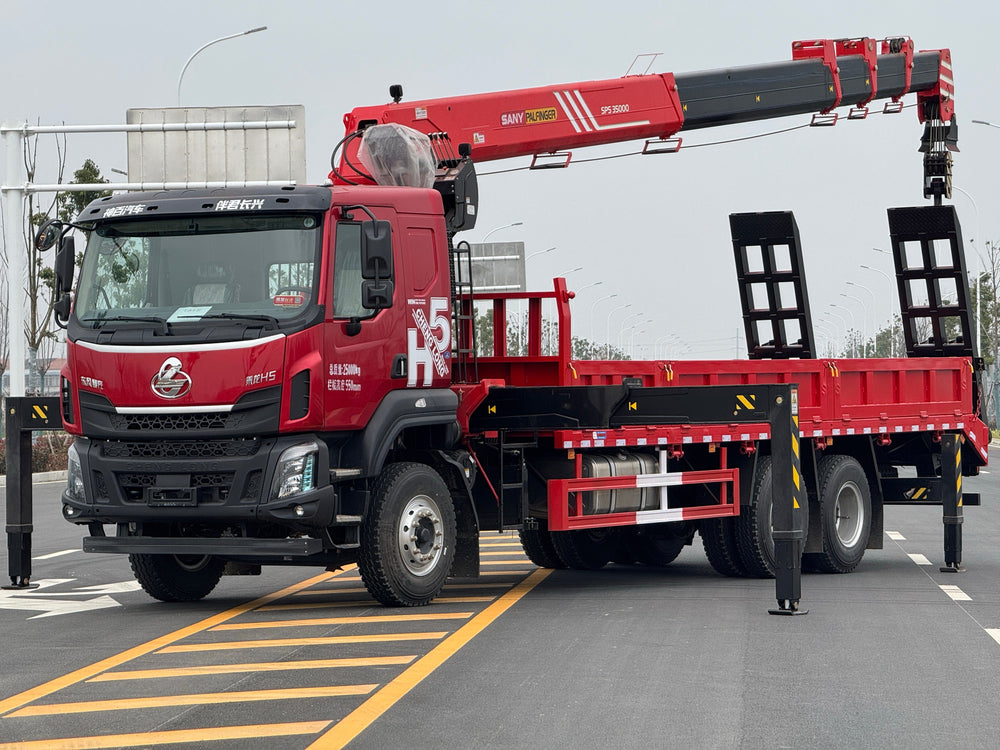

4. Upper Crane Assembly (Sany Brand)
| Crane Model Specification | Technical Configuration & Performance Parameters |
|---|---|
| Sany 12 Ton, 4-Section Boom Crane | Boom length: 14.8m, Lifting height: 16.8m, Top operation, through subframe, radiator, original Sany single-chamber rear outriggers |
| Sany 12 Ton, 4-Section Pro Version Crane | Boom length: 16.2m, Lifting height: 18.2m, Top operation, through subframe, radiator, original Sany single-chamber rear outriggers, automatic hook retraction |
| Sany 12 Ton, 5-Section Boom Crane | Boom length: 18.3m, Lifting height: 20.3m, Top operation, through subframe, radiator, independent extension of second boom section, original Sany single-chamber rear outriggers |
| Sany 12 Ton, 5-Section Pro Version Crane | Boom length: 19.8m, Lifting height: 21.8m, Top operation, through subframe, radiator, independent extension of second boom section, double-section composite front outriggers, original Sany single-chamber rear outriggers, automatic hook retraction |
| Sany 14 Ton, 5-Section Boom Crane | Boom length: 18.5m, Lifting height: 20.5m, Top operation, through subframe, radiator, independent extension of second boom section, original Sany double-chamber rear outriggers |
| Sany 14 Ton, New 5-Section Boom Crane | Boom length: 19.8m, Lifting height: 21.8m, Top operation, through subframe, radiator, independent extension of second boom section, dual slewing, double-section composite fro |
