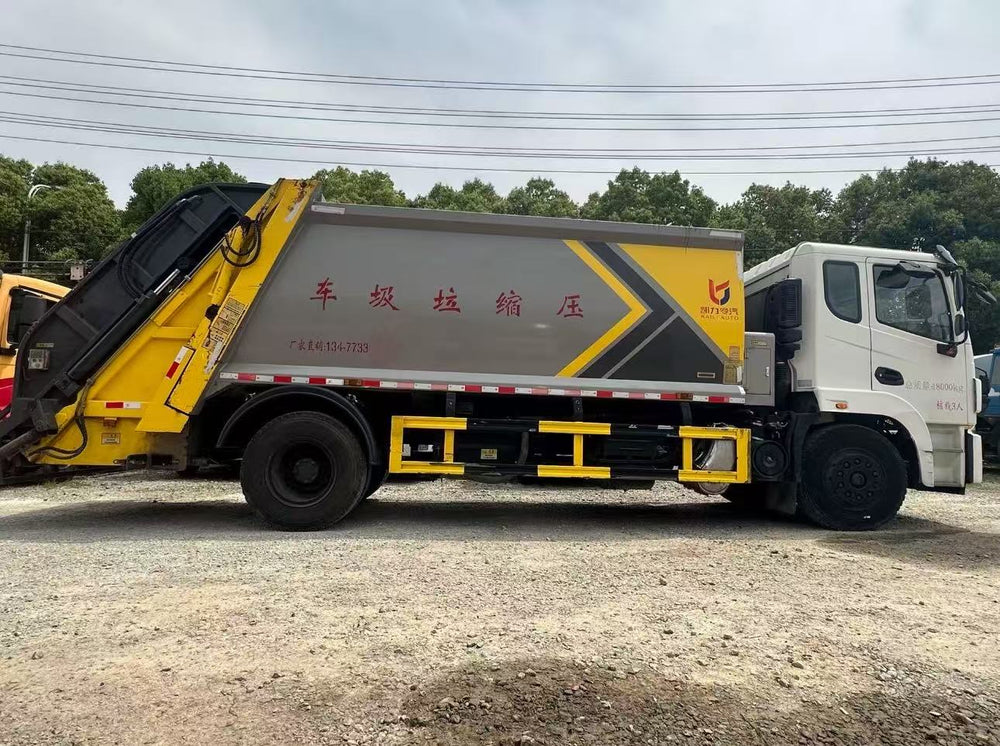

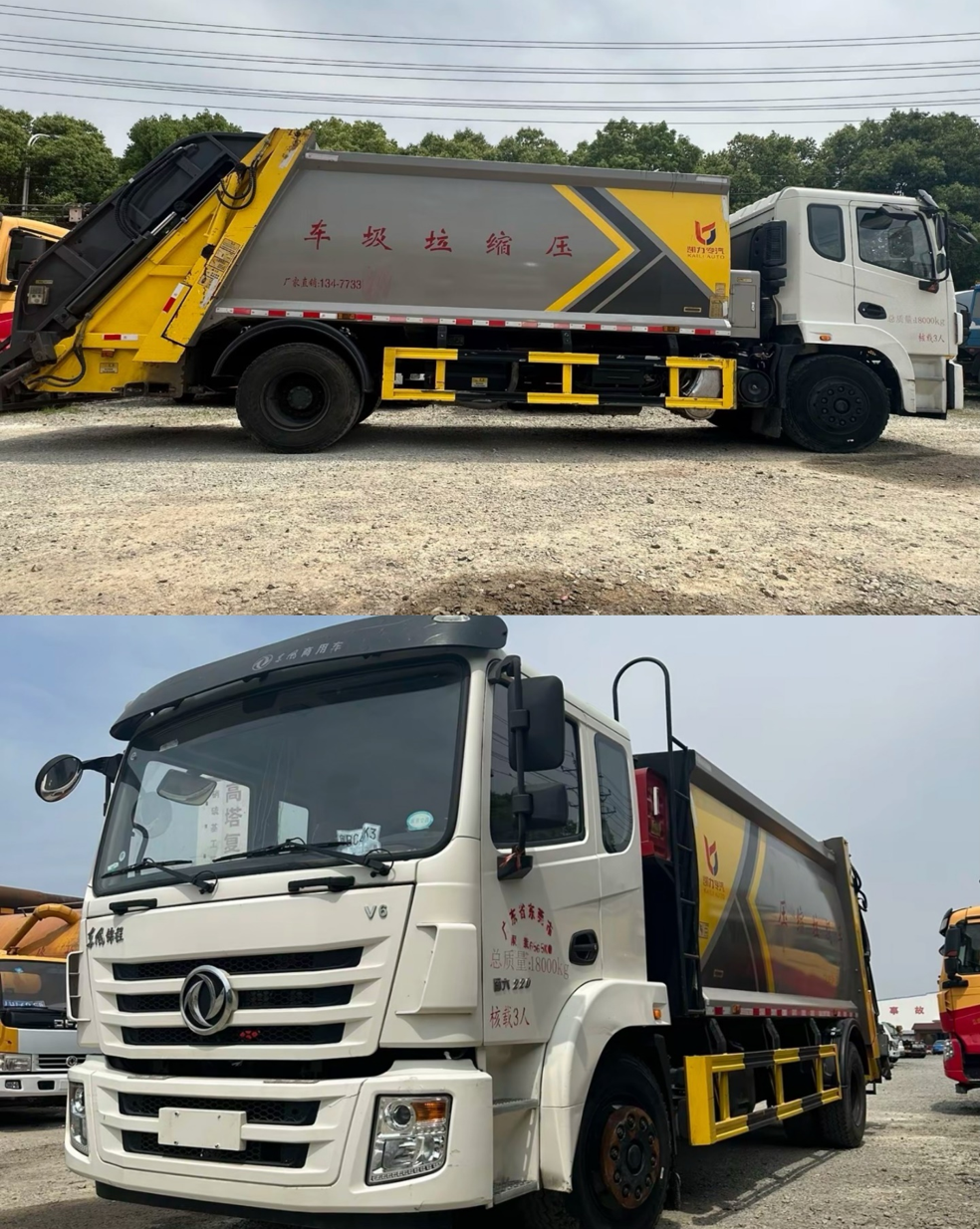

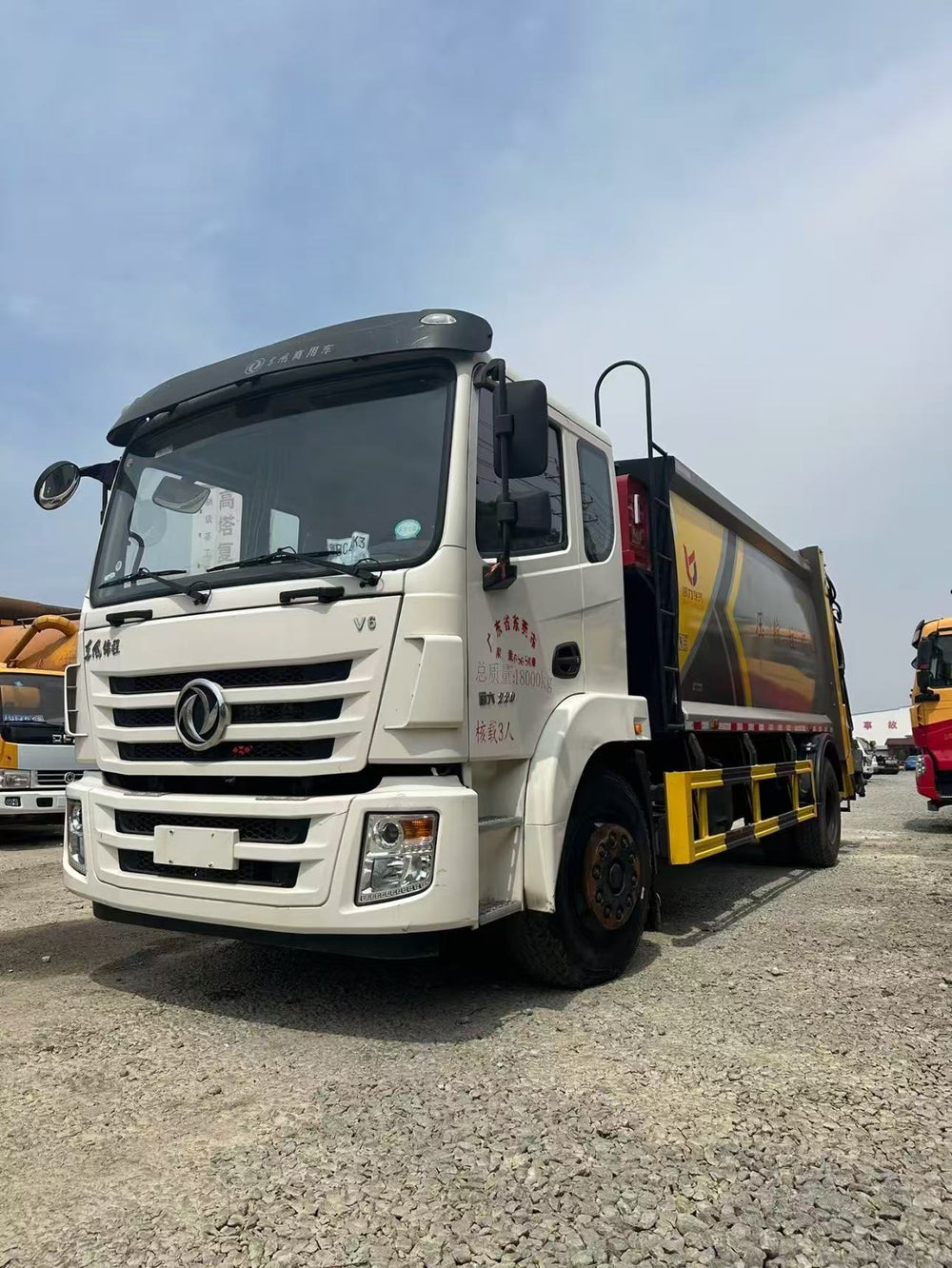

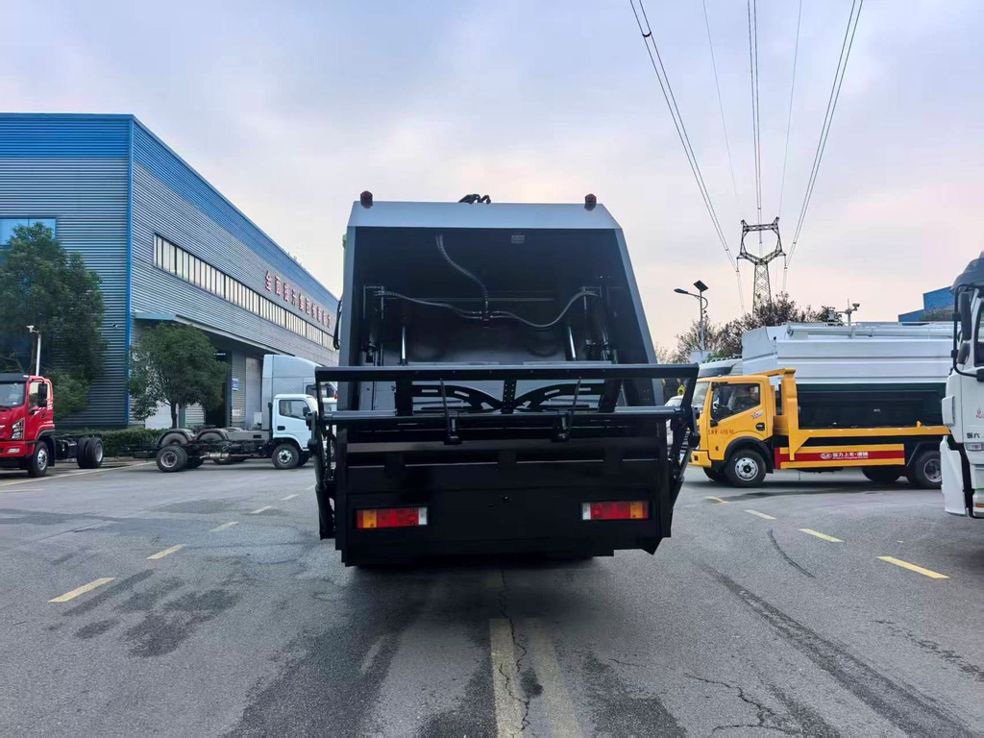

DongFeng 6×4 22m³ Compactor Garbage Truck
Request a Quote Now
No1.Product parameters
|
Model,Specification,Value |
|
|
Chassis Brand |
DONGFENG |
|
Vehicle Size(L*W*H) |
9500X2550×3500 |
|
Total mass(kg) |
25000 |
|
Curb weight(kg) |
12870 |
|
Front/Rear Axle Load |
5.5t/23t(Double rear axle,per11.5t) |
|
Cab Capacity |
2 |
|
Drive Type |
LHD |
|
Fuel Type |
Diesel |
|
Fuel tank |
280L |
|
Engine Model |
YCS06300-61 |
|
Engine Power |
300HP |
|
Engine displacement |
7.7L |
|
Emission Standard |
Euro 5（converted from Euro 6 base engine） |
|
Wheelbase(mm) |
4350+1350 |
|
Tire size |
11.00R20 |
|
Transmission |
Fast 9-speed transmission with synchronizer |
|
Standard features |
Color LCD combination instrument, black wire-drawing aluminum panel. Driver seat belt reminder, door ajar reminder.Electric windows, central control door lock.Huatai six-way adjustable shock-absorbing ergonomic seat (softness and hardness adjustable). Dual USB fast & slow charging ports. New standard visible driving recorder. Original Pane air conditioner, LED daytime running lights, sun visor. All-steel front mask and bumper, equipped with ABS system. |
|
Effective volume of box (m3) |
20m³ |
|
Compression Ratio |
0.65~0.75 |
|
Operation mode |
Automatic, Manual、Wireless remote control |
|
Hydraulic system pressure |
18Mpa |
|
Hydraulic Oil Pump |
Equipped with, WANY (Hefei Wanye) |
|
Hydraulic Cylinder |
All hydraulic cylinders are quenched and tempered, with built-in cushioning. |
|
Multi-way Valve |
WEISENBL Multi-way Valve |
|
Balance valve |
Equipped with |
|
Compression valve |
Equipped with |
|
Loading mechanism type |
Rear loading |
|
Rear board opening mechanism |
Hydraulic |
|
Waste loading hopper |
12000 |
|
Body material |
5mm steel plate for sides and 5mm for the floor. |
|
Unloading method |
Rear discharge |
