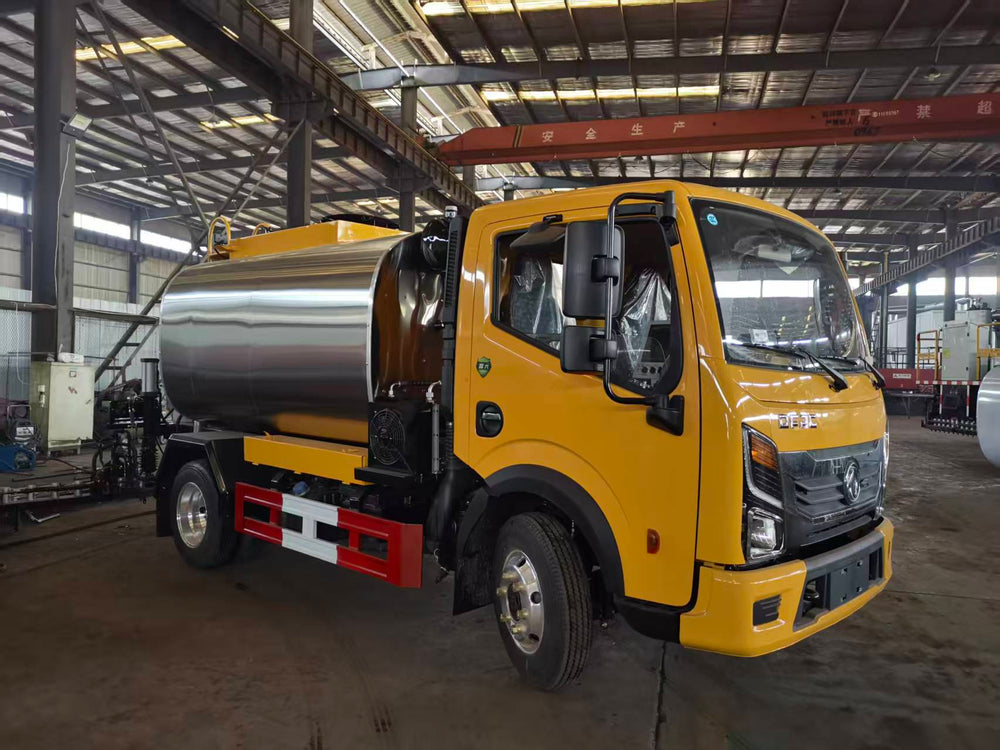

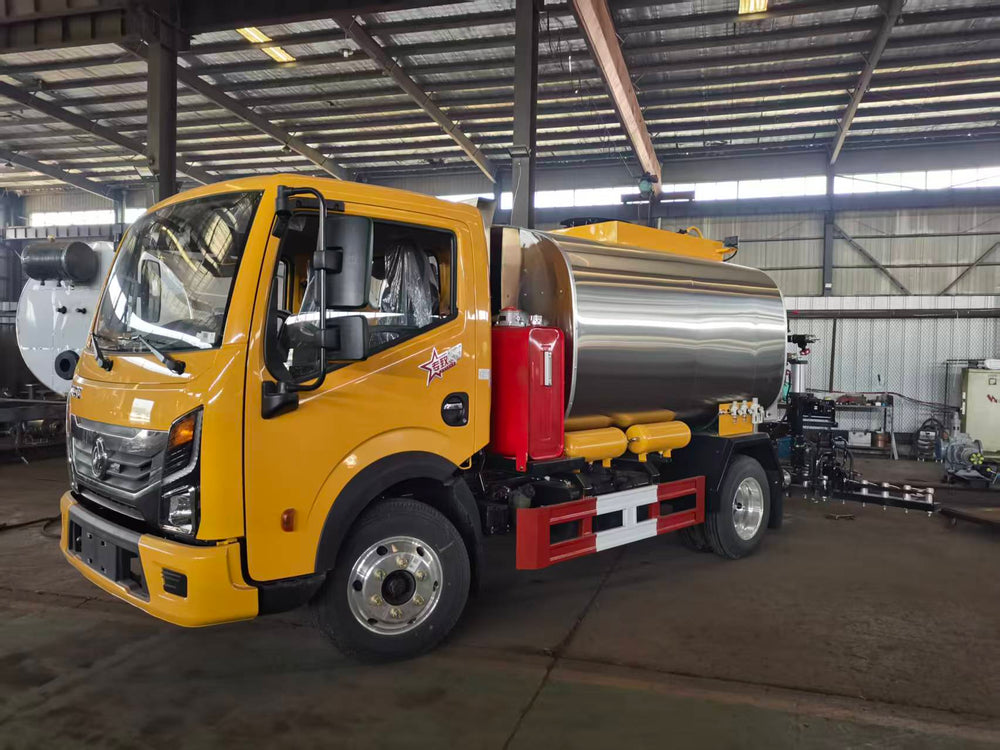

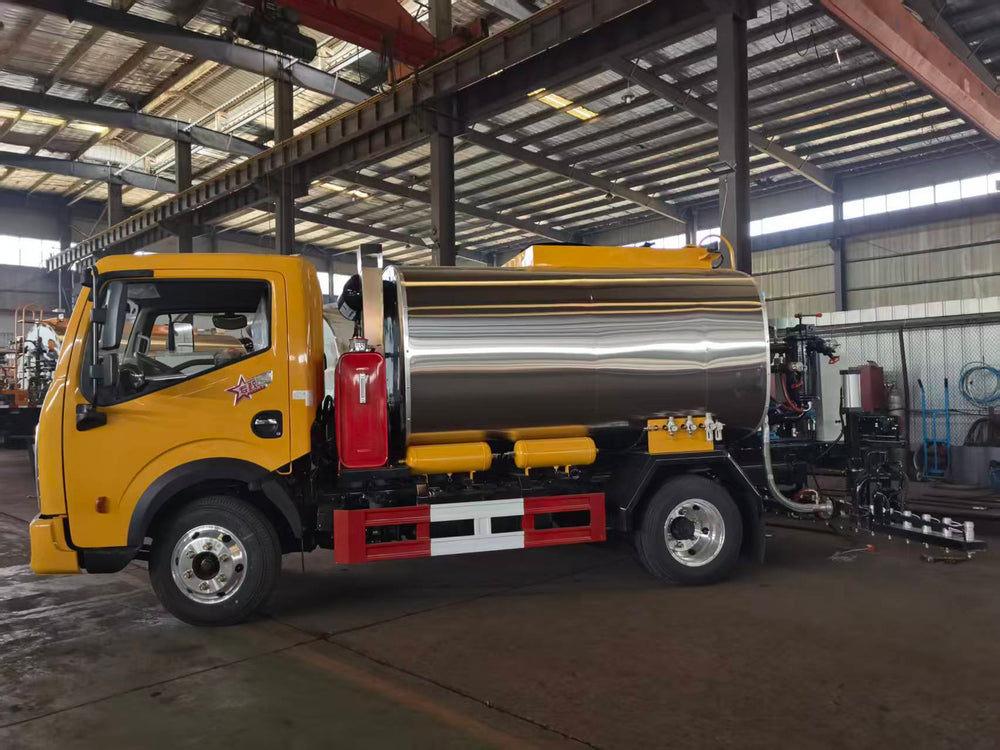

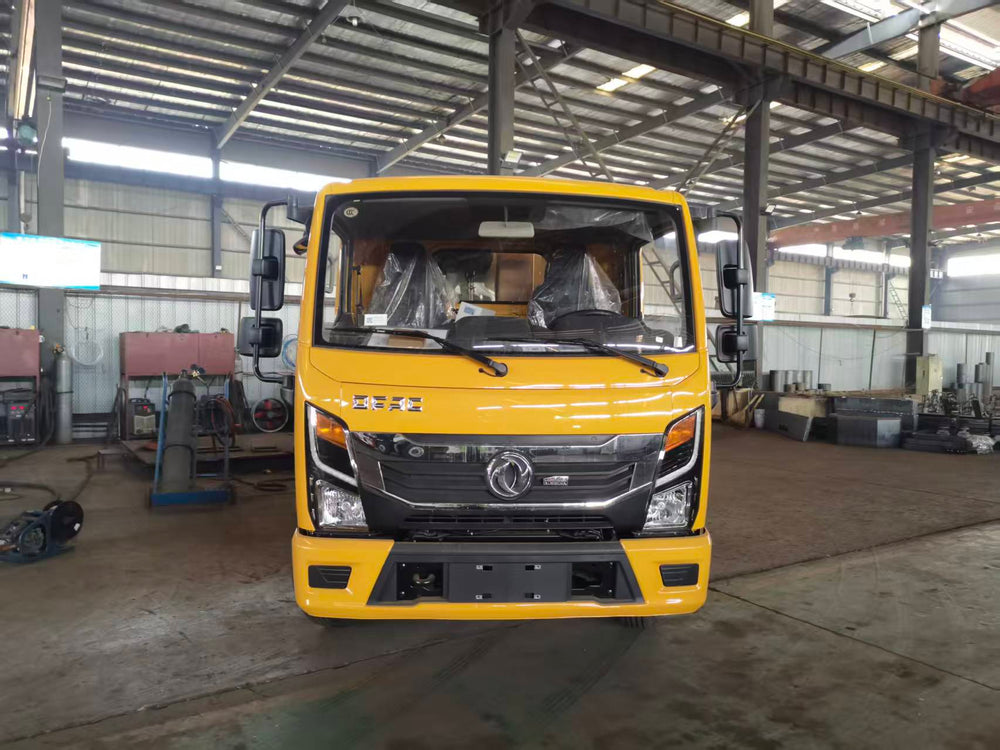

DongFeng 5T Asphalt Distributor Truck
Request a Quote Now
1. Chassis Configuration
| Parameter | Value |
|---|---|
| Engine Model | Q25A-150E60 |
| Engine Power | 150 HP |
| Engine Displacement | 2.5 L |
| Transmission | Wanliyang 5-Speed (5G32) |
| Leaf Spring Configuration | 3 / 6+5 Thickened Leaf Springs |
| Rear Axle | 4-Ton Rear Axle, Final Drive Ratio 4.875 |
| Tire Specification | 6.50R16 |
| Wheelbase | 2950 mm |
| Fuel Tank Capacity | 80 L |
| Air Reservoir | Aluminum Alloy Air Reservoir |
| Cab Interior | Air Conditioner, Electric Windows |
| Lighting | Daytime Running Lights |
| Brake System | Exhaust Brake, Air-Over-Hydraulic Spring Brake, ABS |
| Steering Wheel | Multifunctional Steering Wheel |
| Electrical System | 24V Power Supply |
| Remote Control | Engine Remote Start & Remote Stop |
2. Tank Body & Insulation System
| Parameter | Value |
|---|---|
| Tank Material | Carbon Steel Plate |
| Tank Volume | 5 m³ |
| Insulation Structure | Three-Layer Insulation |
| Outer Insulation Layer | Stainless Steel Cladding |
| Internal Insulation Filling | Flame-Retardant Rock Wool |
| Insulation Thickness | 30 mm |
3. Asphalt Pump & Hydraulic System
| Parameter | Value |
|---|---|
| Asphalt Pump Type | Insulated Asphalt Pump RCB18/0.6-65F-T |
| Asphalt Pump Capacity | 18 m³/h |
| Asphalt Pump Drive Motor | Cycloidal Motor 2K-80 |
| Hydraulic Pump | F563 Full Cast Iron Gear Pump |
| Hydraulic Flow Control | Imported Electro-Hydraulic Proportional Flow Regulating Valve (USA) |
4. Heating & Temperature Control System
| Parameter | Value |
|---|---|
| Burner Brand & Model | Riyadh G10 (Imported from Italy) |
| Heating Method | Full-Process Heat-Conducting Oil Heating (Tank & Pipelines) |
| Temperature Control Module | Imported PLC Temperature Control Module (Taiwan) |
| Control Type | Electromagnetic Control |
| Heat-Conducting Oil Pump Motor | GM5-10-1FE13S-20 |
| Heat-Conducting Oil Pump | BRY20-20-125 (Botou, Hebei) |
| Radiator | AH1012-CD24-A |

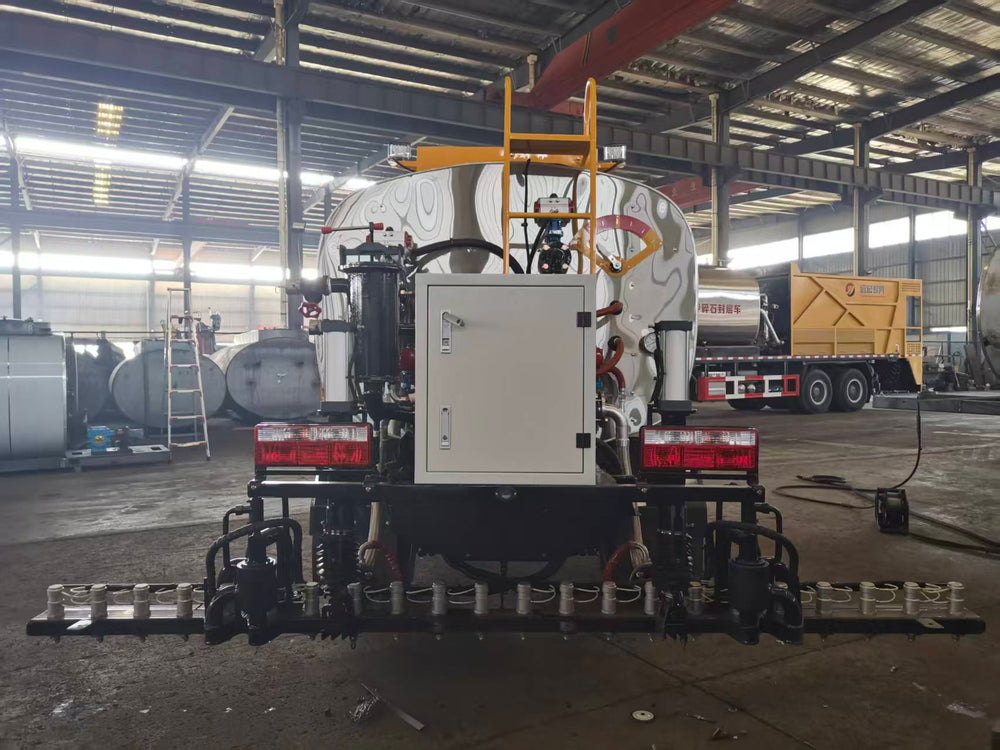

5. Spray Bar & Nozzle System
| Parameter | Value |
|---|---|
| Spray Width Range | 0.2 m – 4 m (three-fold overlap) |
| Spray Volume Range | 0.2 – 2 kg/m² |
| Pneumatic Cylinders | 22 sets of stainless steel full-pneumatic cylinders |
| Nozzles | Pure copper nozzles with imported seals (leak-proof) |
| Spray Bar Design | Synchronized same-layer spray bar with through rotary joint heating; asphalt circulation on both sides; recyclable asphalt; no metal hoses |
6. Control System
| Parameter | Value |
|---|---|
| Spray Volume Controller | Intelligent Integrated Controller (IP67 protection grade) |
| Control Feature | Spray volume automatically linked with vehicle speed |

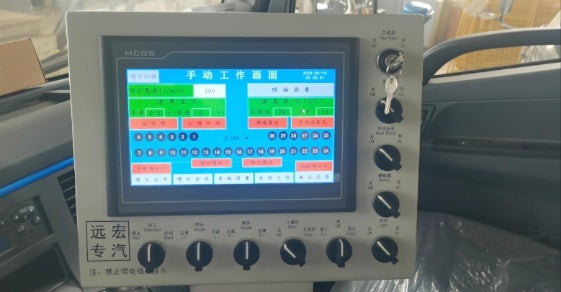

| In-Cab Display | Kunlun Tongtai 10-inch Touch Screen Control System |
| Pressure Control | Computer-automatic hydraulic pressure distribution |
| Pump Speed Control | Adjustable asphalt pump speed |
| Temperature Controller | Independent temperature controller |
| Air Pressure Display | Equipped |
| Spray Cylinder Control | One cylinder per valve (one-to-one control) |
7. Standard Features & Accessories
| Feature | Description |
|---|---|
| Full Asphalt Circulation | Full-vehicle asphalt circulation, one-key asphalt pump suction/discharge function |
| Automatic Cleaning | One-key asphalt return, nozzle cleaning and hand-gun cleaning function via operation screen |
| Level Gauge | Float-type level gauge installed inside tank |
| Tank Thermometer | Bimetal thermometer installed outside tank body |
| Pump Thermometer | External metal thermometer on asphalt pump |
| Fastener Standard | All fasteners, seals, transmission parts, support parts, sealing parts and elastic parts comply with GB/T national standards |
8. Applicable Spray Media
| Medium Type | Description |
|---|---|
| Emulsified Asphalt | Suitable |
| Modified Emulsified Asphalt | Suitable |
| Modified Asphalt | Suitable |
| Hot Asphalt | Suitable |
