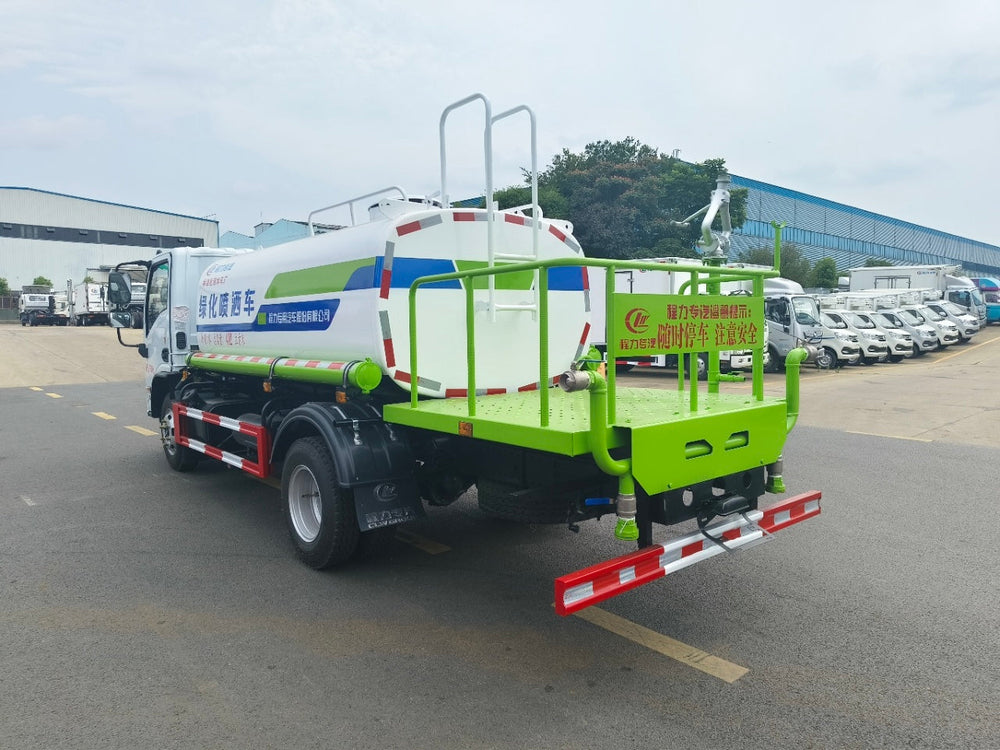

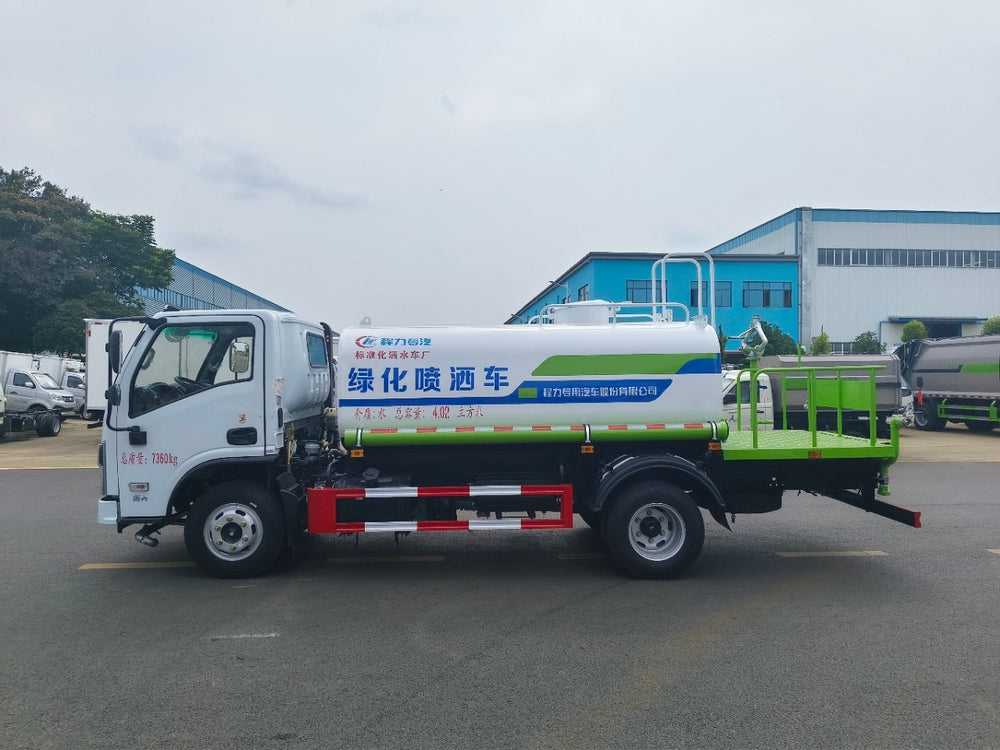

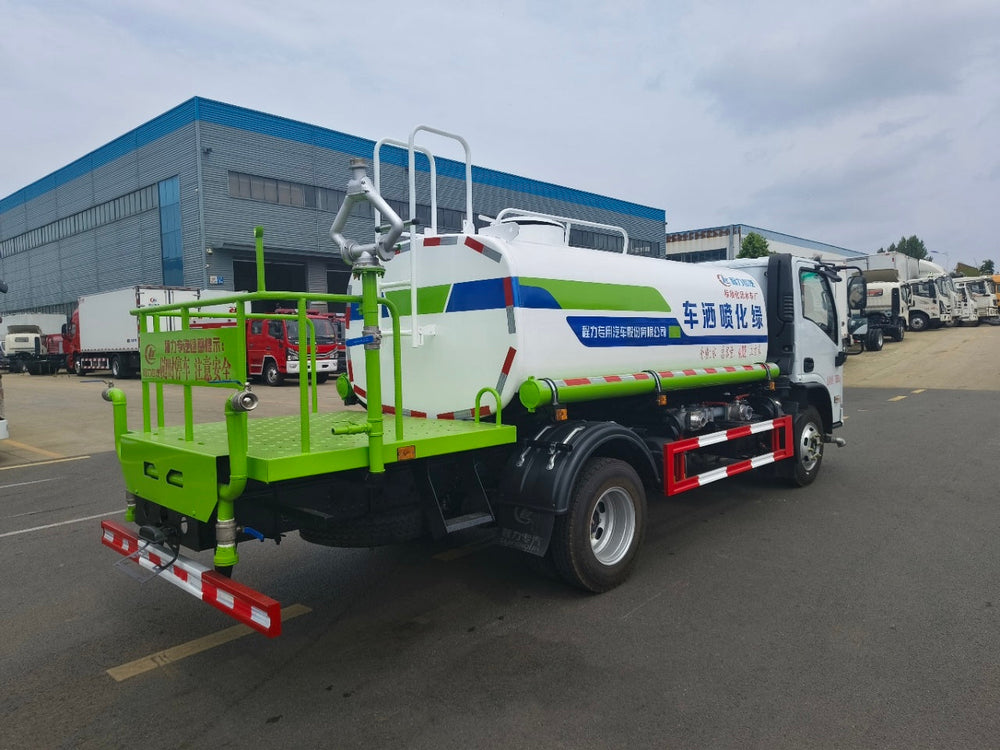

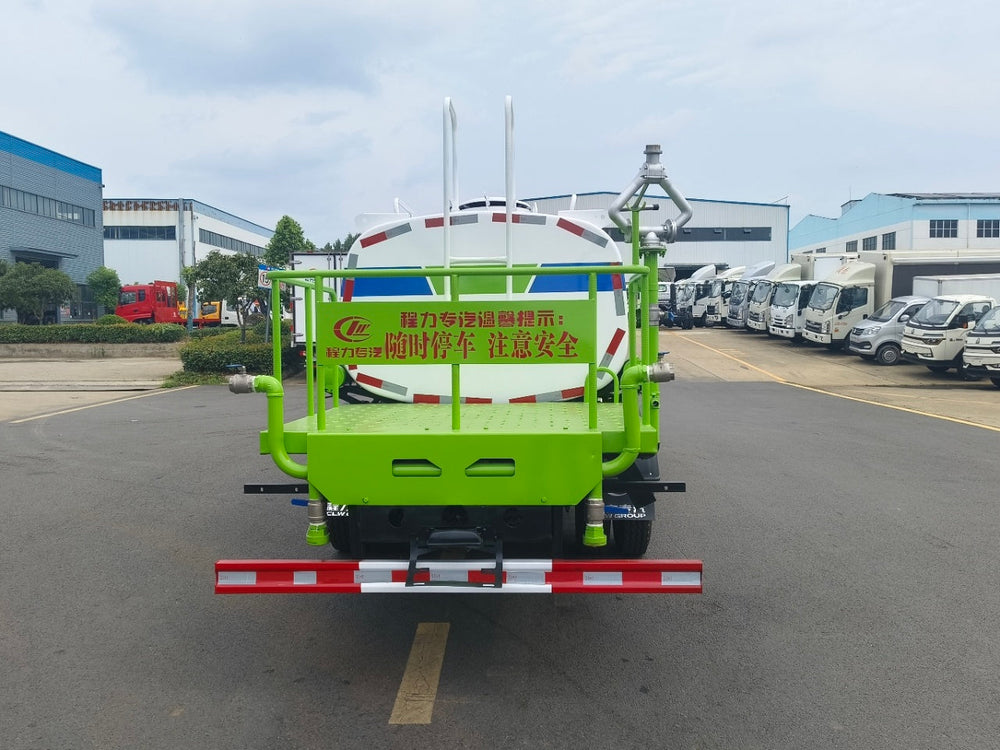

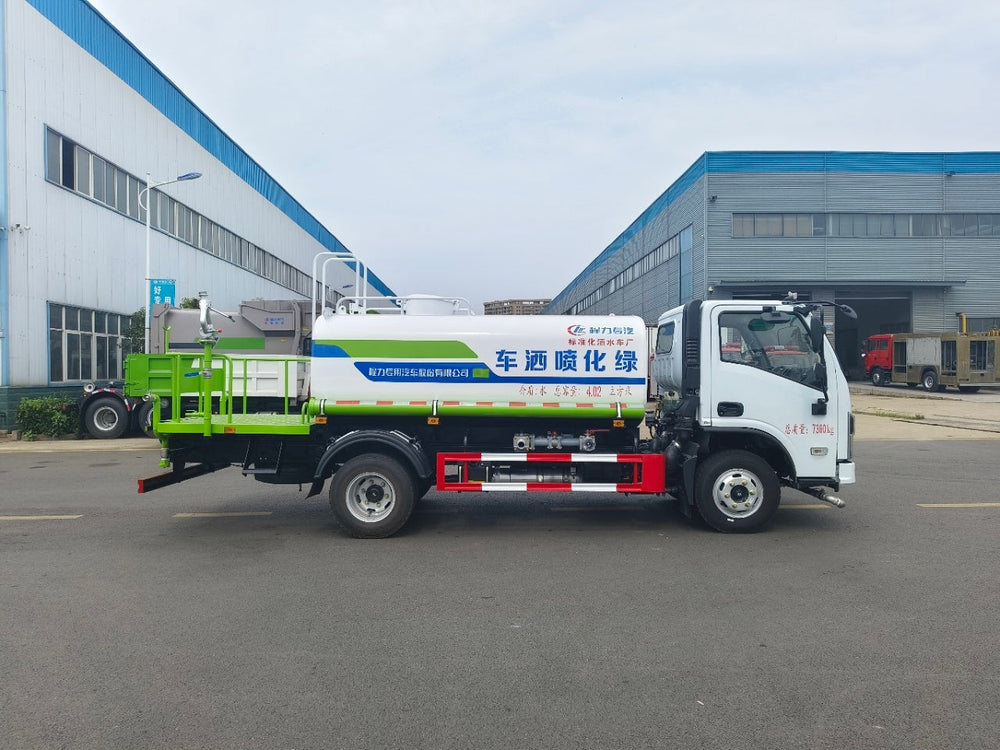

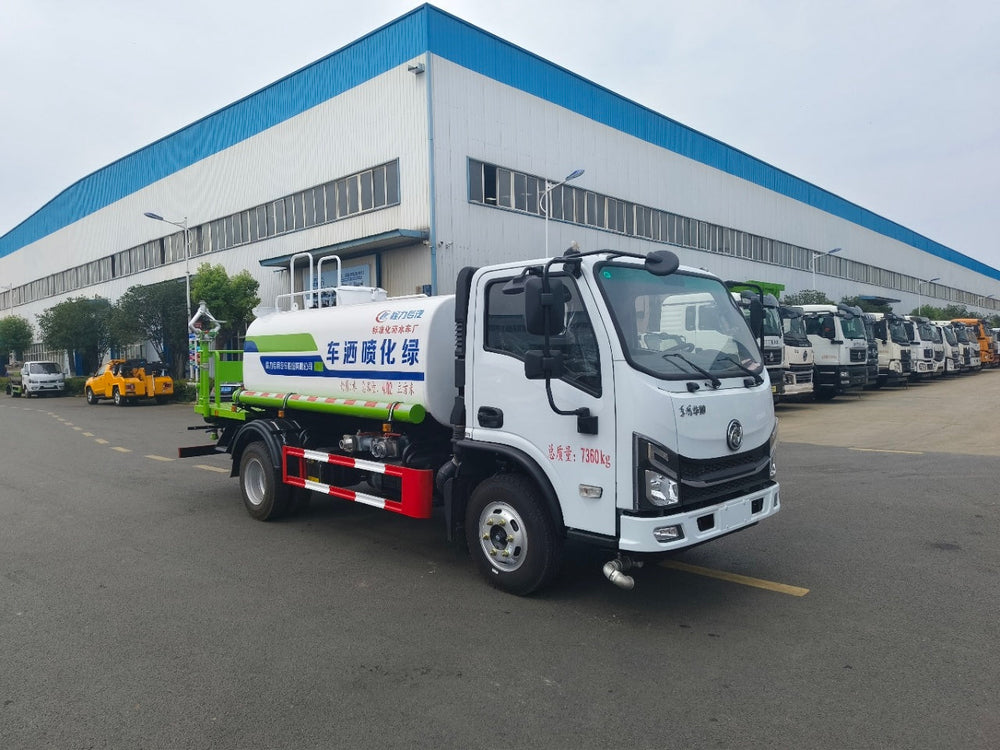

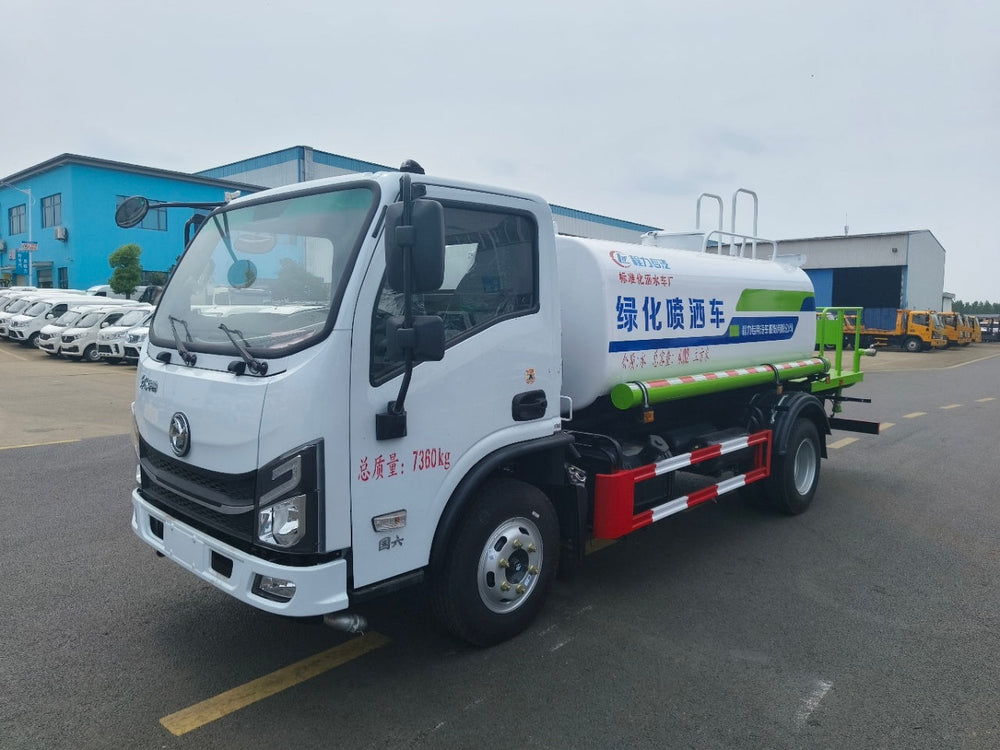

DongFeng 5m³ Water Sprinkler Truck
Request a Quote Now
1. Chassis Basic Parameters
| Parameter | Value |
|---|---|
| Wheelbase | 3300 mm |
| Engine Options | Yunnei 126 HP / Quanchai 142 HP |
| Transmission | Wanliyang 5-speed gearbox |
| Tire Specification | 7.00R16 |
| Fuel Tank | 70L steel fuel tank |
| Cab Type | Classic Dongfeng V3 white cab |
2. Chassis Auxiliary Configuration
| Parameter | Value |
|---|---|
| Window System | Electric window lifters |
| Air Conditioning | Original factory air conditioner |
| Brake Type | Exhaust brake |
| Front Axle Load Rating | 2 Ton front axle |
| Rear Axle Load Rating | 3.5 Ton rear axle |
3. Tank Superstructure Main Specification
| Parameter | Value |
|---|---|
| Coating Version | New Version 3.0 coating treatment |
| Actual Tank Volume | 5 cubic meters |
| Tank Material | Q235 carbon steel |
| Baffle Plate Thickness | 3 mm |
| Tank Wall Thickness | 4 mm |
| End Cap Thickness | 5 mm |
| Main Valve Fitting | Large-bore straight ball valve, optional aluminum alloy three-way valve |
| Main Pipeline Size | Enlarged DN76 main pipeline |
| Standard Water Pump | 40/50 self-priming self-discharging sprinkler pump |
| Sprinkler Functions | Front flush, rear spray, side spray, high-position shower, rear landscaping water cannon |
4. Optional Cast Aluminum Pipe Fittings
| Parameter | Value |
|---|---|
| Available Fitting Types | Aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet four-way connector, aluminum alloy pump inlet straight connector |
| Manufacturing Technology | One-time die casting molding, seamless structure to prevent water leakage |
| Structural Advantages | Standardized design, good interchangeability, convenient maintenance and part replacement |
| Material Characteristics | Lightweight aluminum alloy, attractive & practical appearance, improved product grade |
