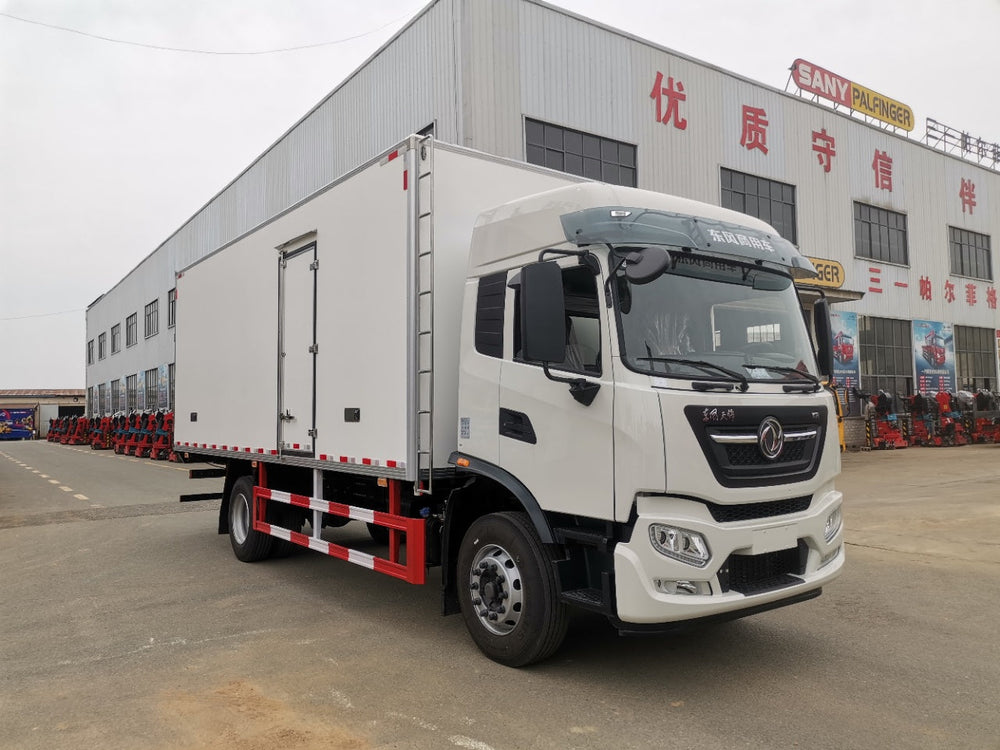

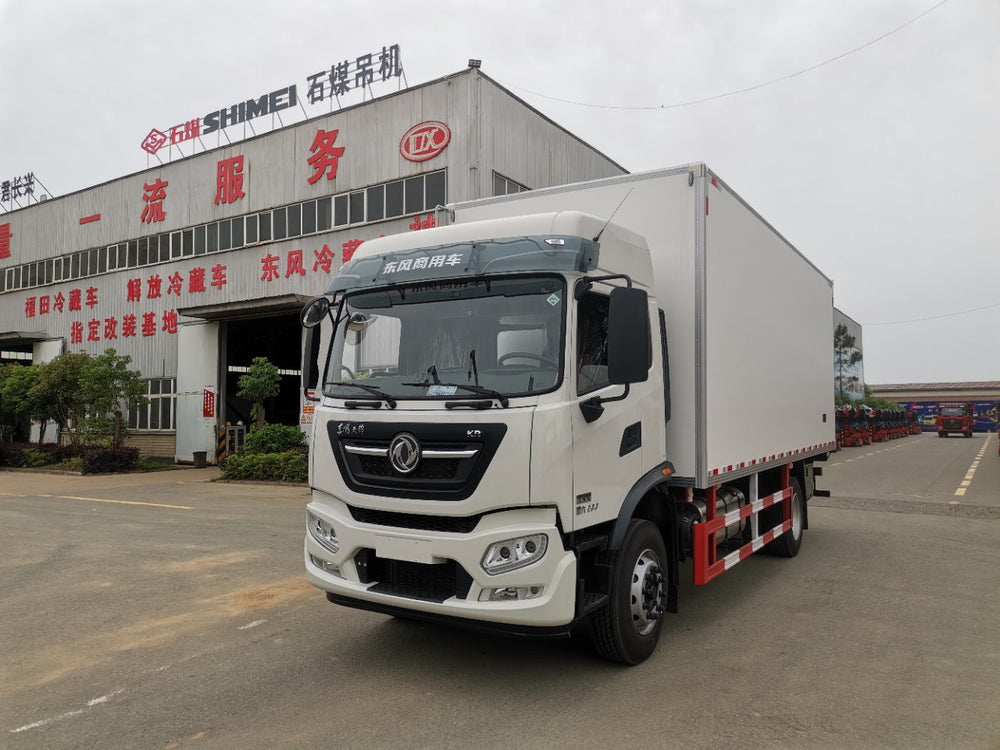

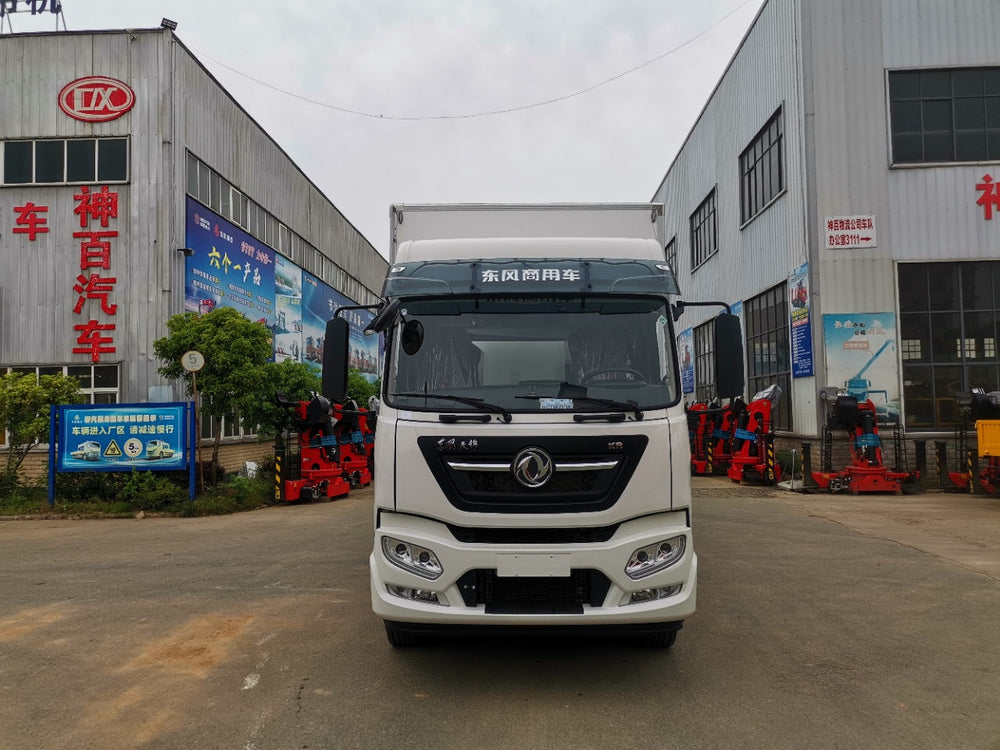

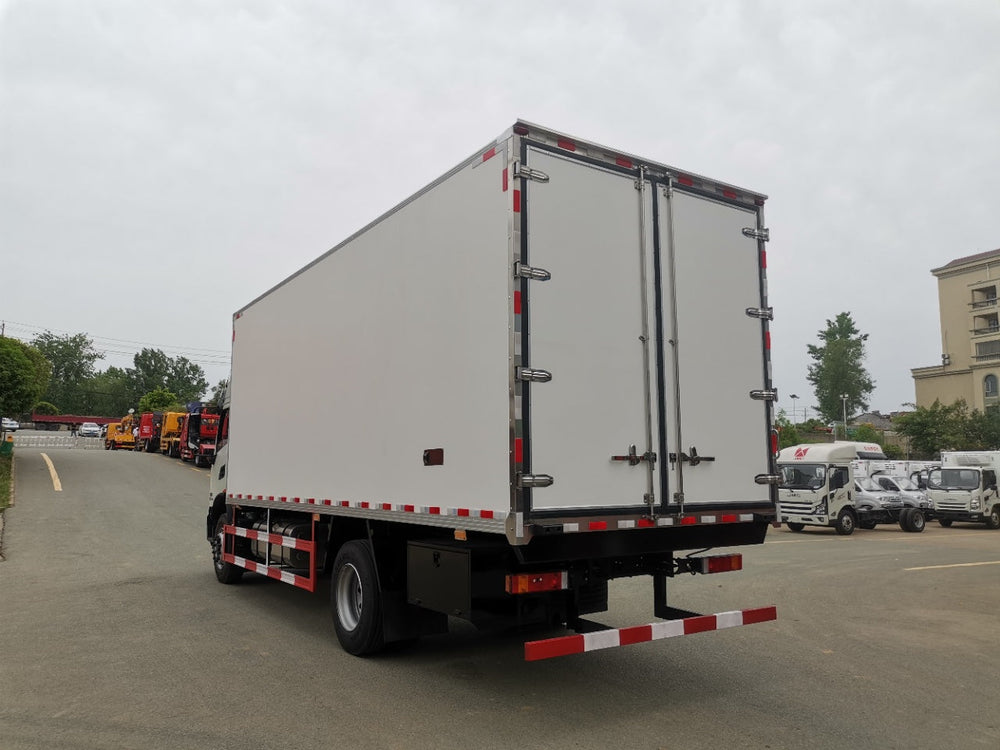

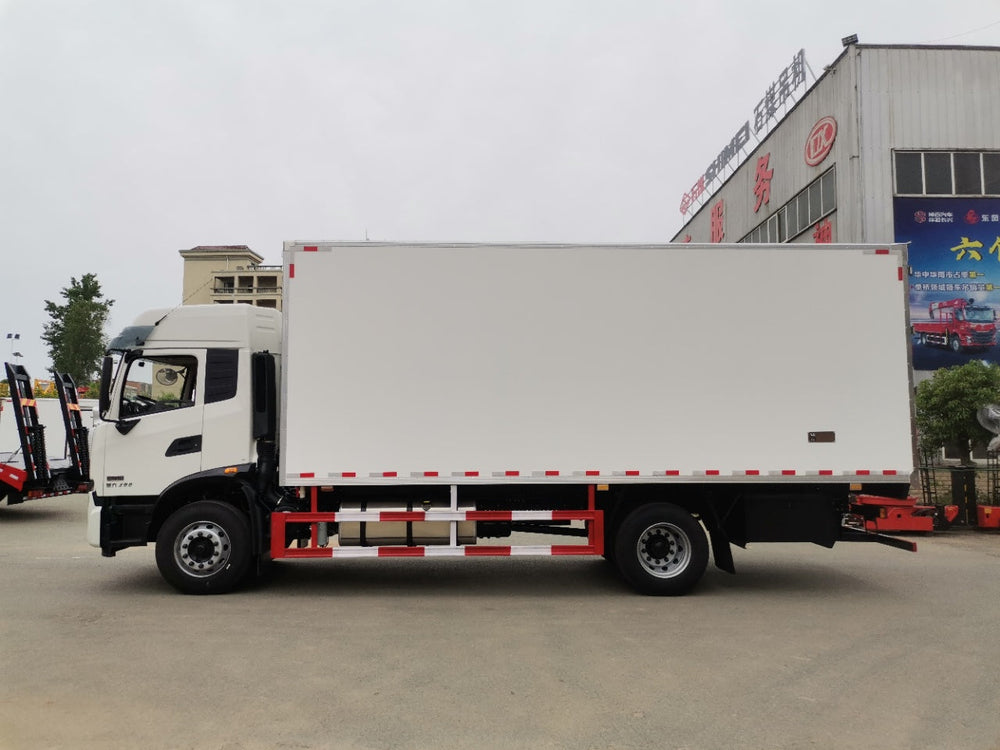

DongFeng 290HP Refrigerated Truck

1 / 12

Request a Quote Now

Chassis

Item	Specification
Vehicle Model	DFH5180XLCEX7
Overall Dimension	9200×2600×3960mm
Inner Cargo Box Size	6800×2440×2500mm
GVW	18000kg
Wheelbase	5000mm
Engine	Cummins B6.2NS6B290, 290HP, 6.2L

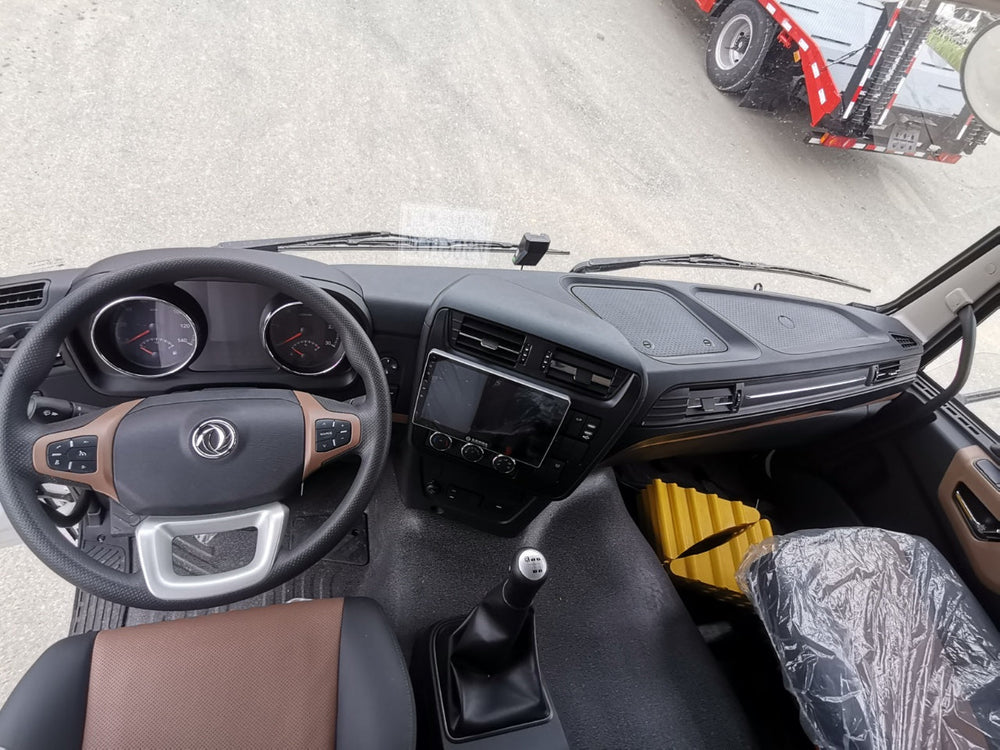

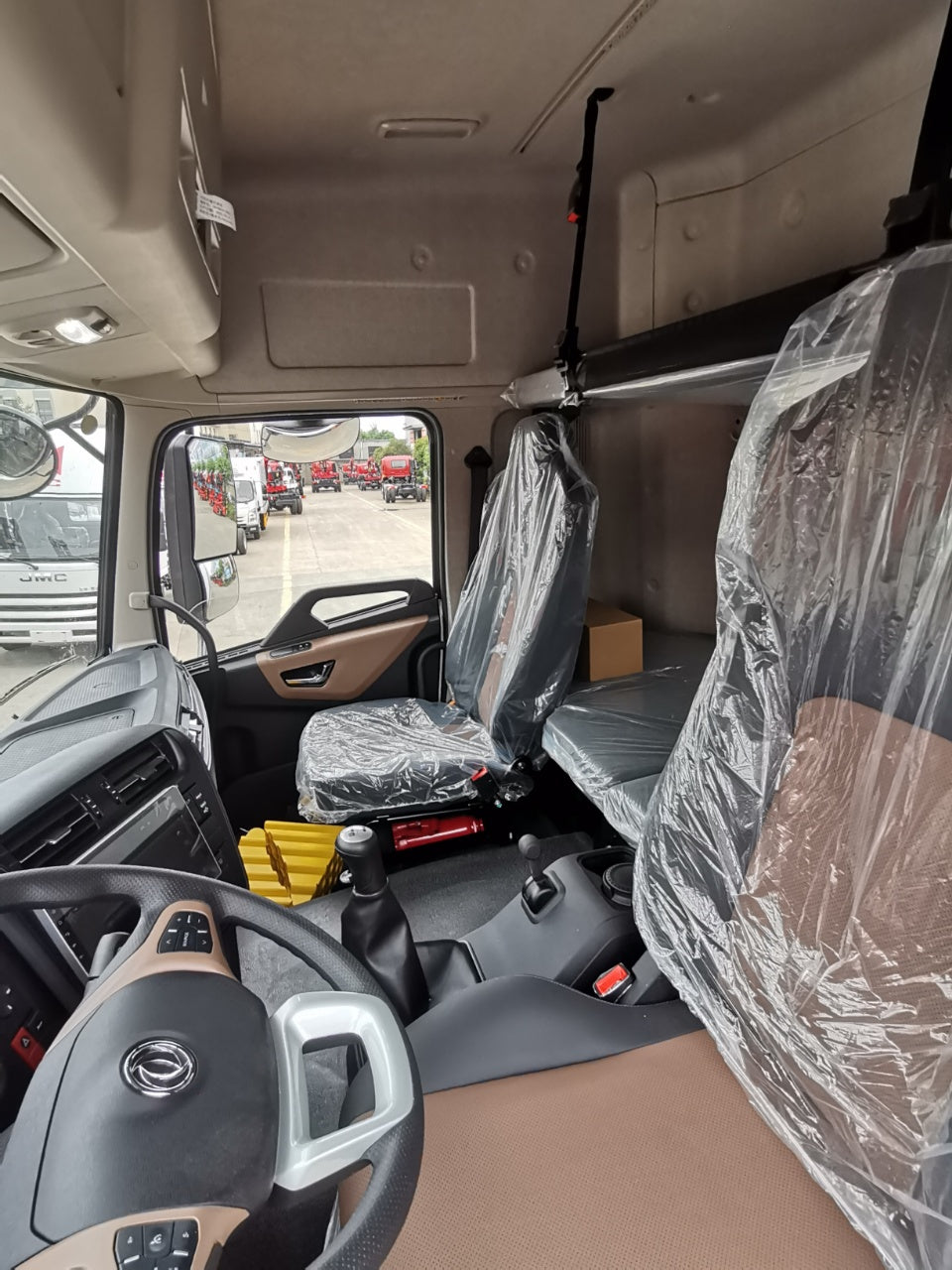

Cab	Dongfeng Kinland D560 Star Edition high-roof double berth, 2-seater
Transmission	Fast 8JSX110TM
Axle Rating	Front 4.5T / Rear 9T
Leaf Spring	8/10+8
Frame Size	220×75×7mm
Final Drive Ratio	3.64 / 3.91
Fuel Tank	400L aluminum alloy
Tire	275/22.5 18PR
Electrical Parts	90A alternator,140Ah storage battery; optional 10-inch screen & 4-channel monitoring & floor mat

Refrigerated Box & Refrigeration Unit

Item	Specification

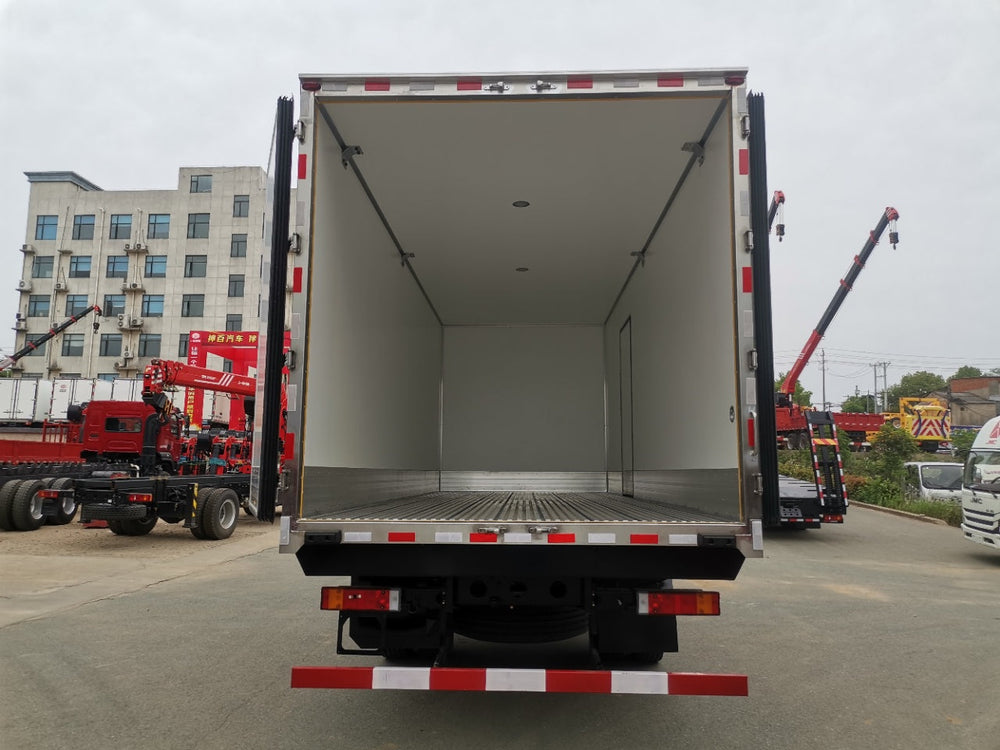

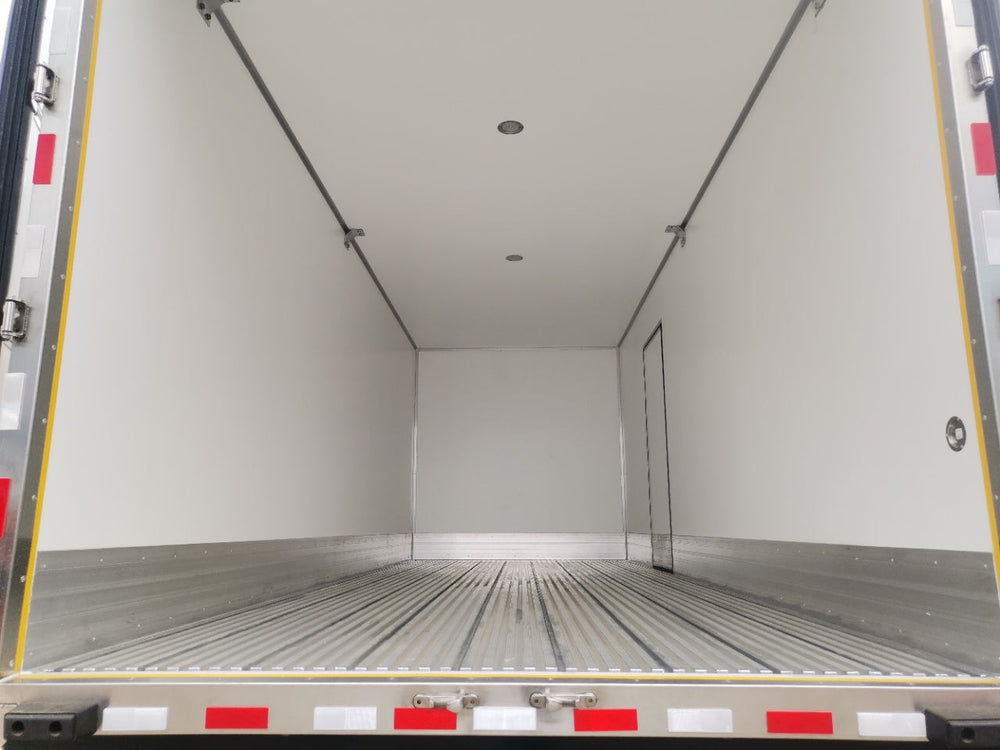

Box Structure	Inner & outer FRP + 8cm high-density insulation, sunken full-weld ventilation floor

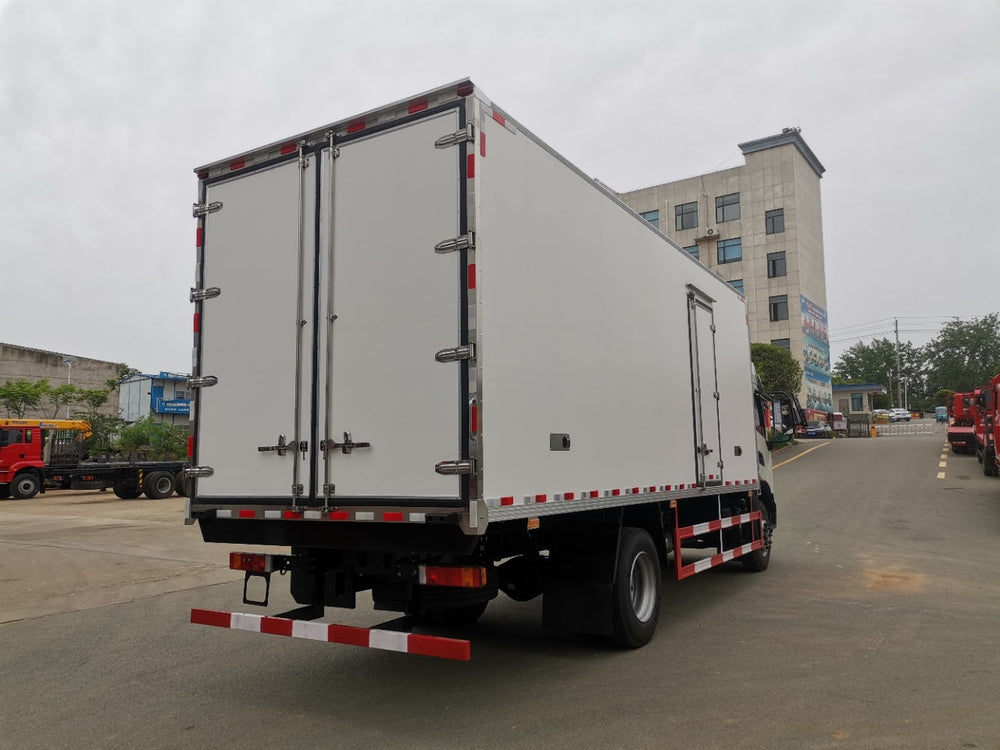

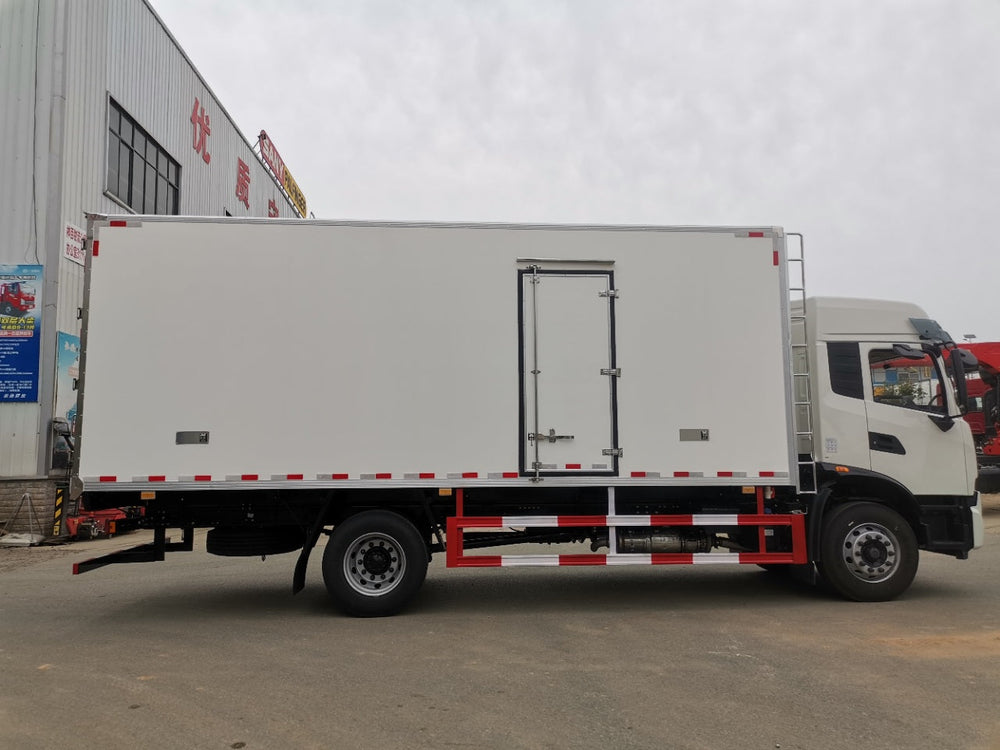

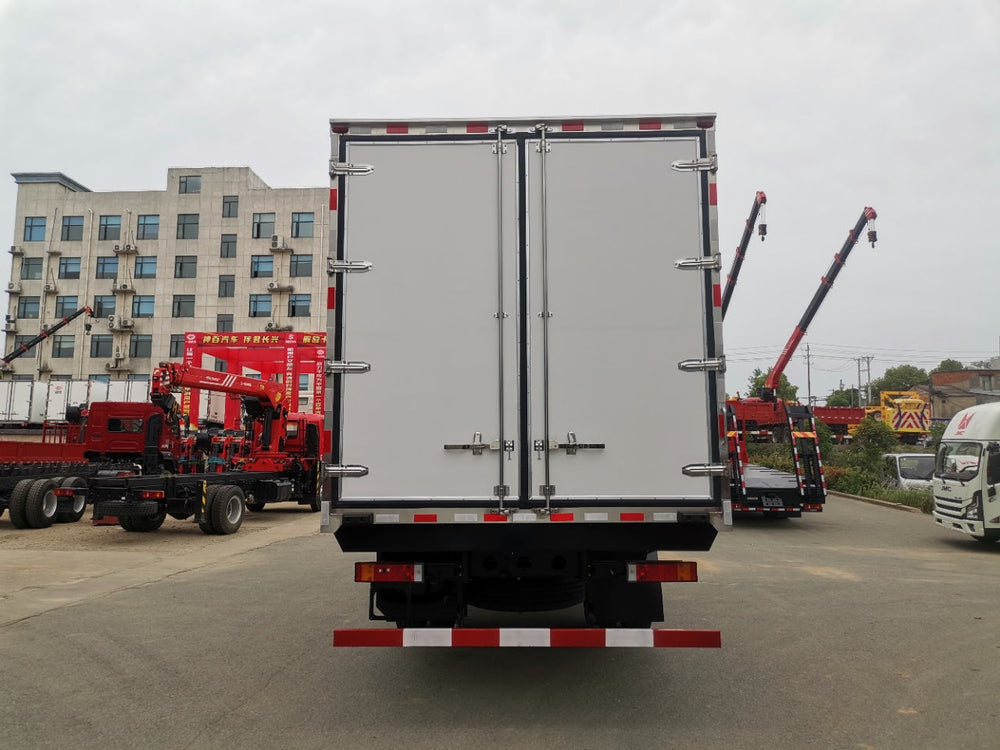

Box Fittings	30cm high aluminum kick plate, aluminum outer edging, stainless steel door frame & lock, 5-layer sealing strip, single side door, rear double door, large toolbox
Refrigeration Unit	Domestic S1100 cooling unit with maintenance ladder
