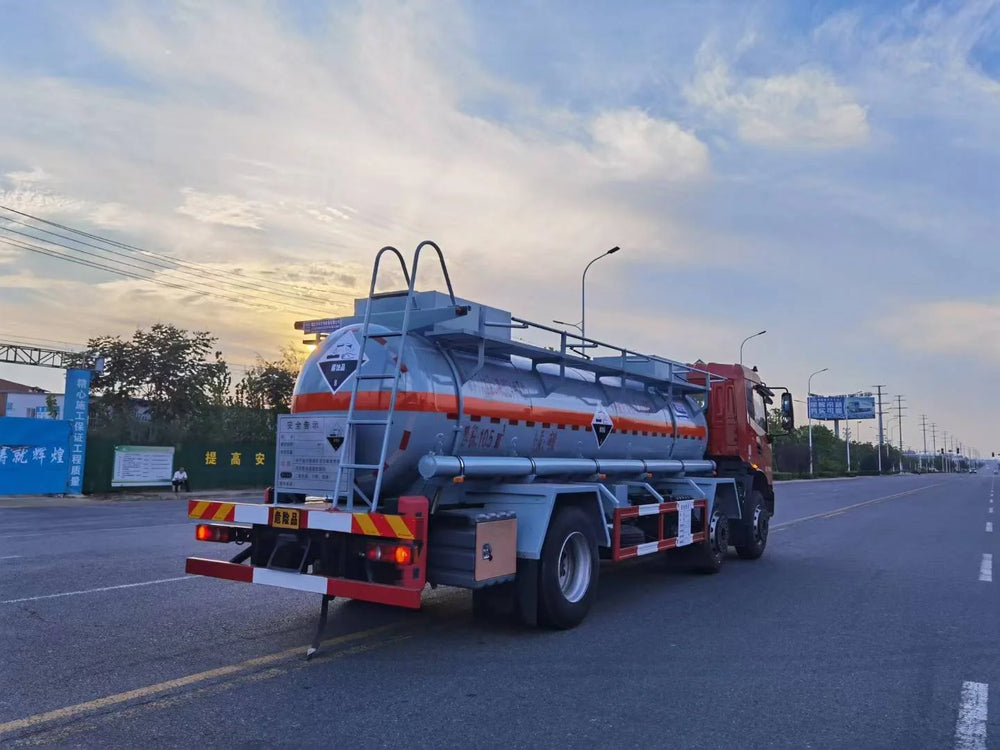

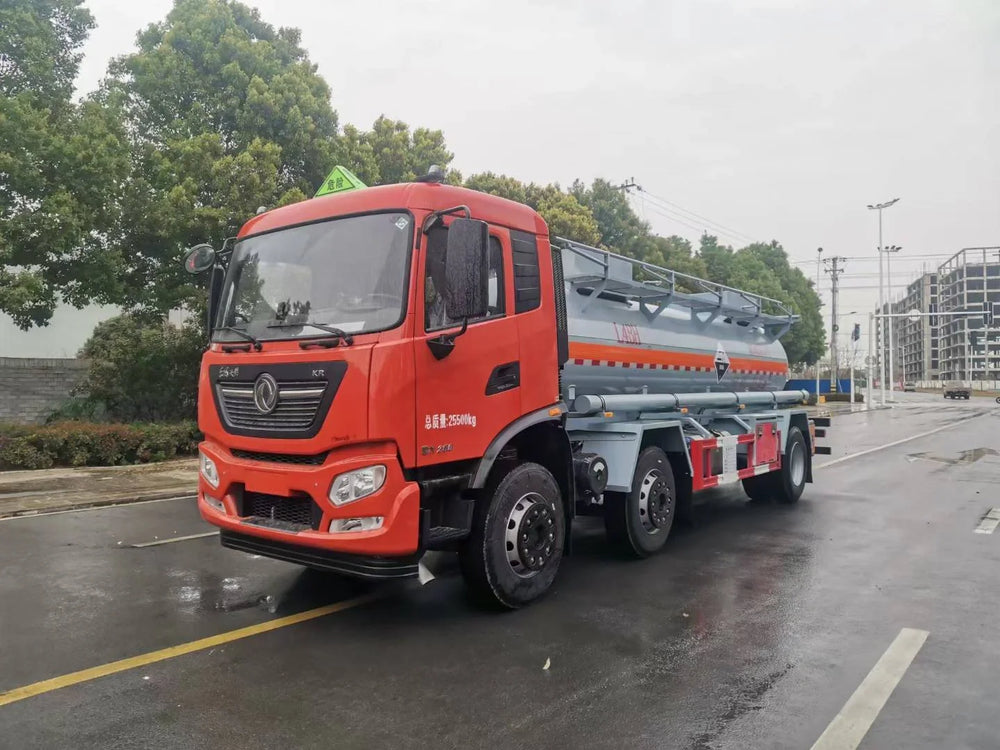

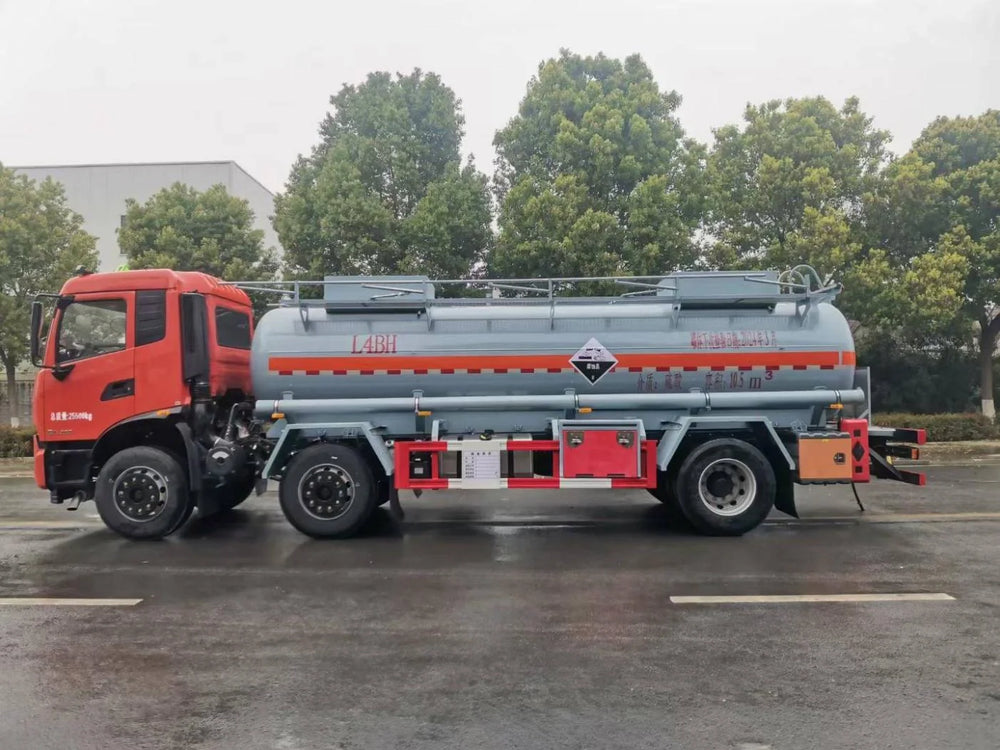

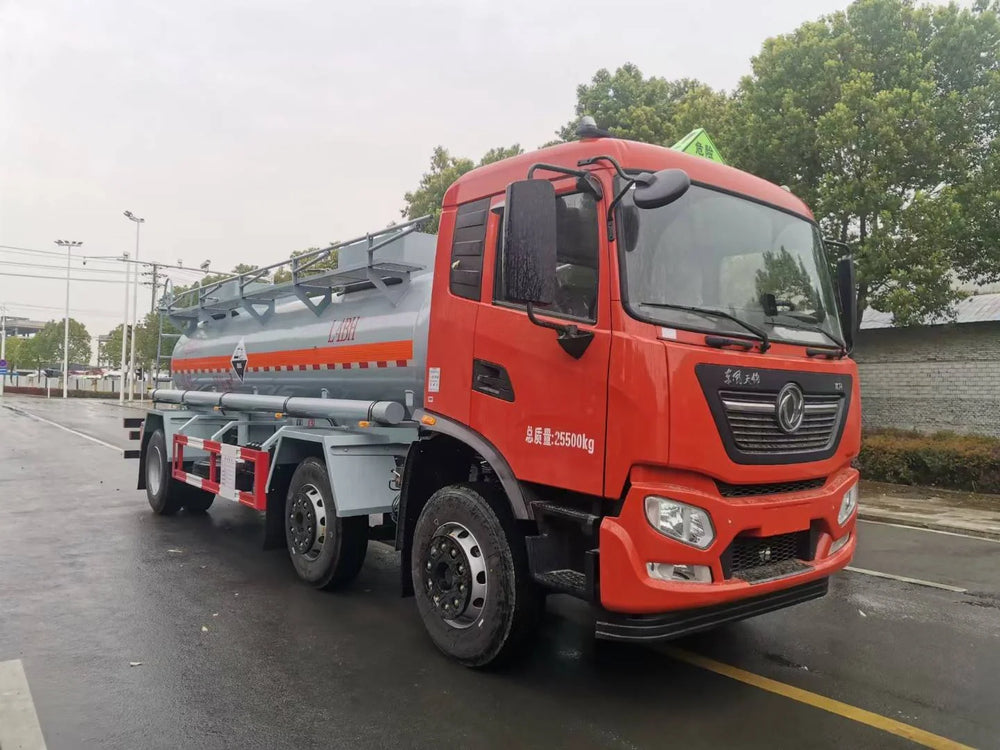

12-15 cubic chemical liquid transport truck

1 / 4

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Boost your chemical logistics operations with our high-performance 12-15 cubic meter Corrosive Substances Tanker Truck. Engineered for superior safety and efficiency, this robust tanker meets the stringent GB17691-2018 China VI emission standards, ensuring global environmental compliance. It offers a substantial payload capacity with versatile engine options from renowned manufacturers like Yuchai and Cummins, delivering power from 180Kw to 199Kw. Designed for durability and reliability in demanding conditions, this tanker is the ideal solution for transporting hazardous liquids securely and cost-effectively. Contact us today to receive a quote and enhance your fleet's capability with this reliable partner for your chemical transport needs!

12–15 Cubic Meter Chemical Liquid Transport Truck – Key Specifications

Parameter	Specification
Vehicle Type	Chemical Liquid Tanker / Flammable Liquid Transport Vehicle
Chassis Options	FAW Jiefang, SINOTRUK HOWO, Dongfeng
Drive Configuration	4×2 / 6×4
Emission Standard	Euro V / China VI

Dimensions & Weight

Parameter	Specification
Overall Dimensions (L×W×H)	8,100 – 8,500 × 2,400 – 2,550 × 3,150 – 3,330 mm
Tank Dimensions (L×W×H / L×Diameter)	~5,800×2,200×1,480 mm
Wheelbase	3,800 – 5,800 mm (varies by model)
GVWR (Total Mass)	18,000 – 24,275 kg
Curb Weight (Kerb Mass)	6,800 – 7,800 kg
Payload Capacity (Rated Load)	10,000 – 12,800 kg

Engine & Drivetrain

Parameter	Specification
Engine Options	Deutz 165HP / FAW CA4DK1 / SINOTRUK WP7H
Max Horsepower	165 – 245 HP
Transmission	8-speed manual
Fuel Type	Diesel

Chassis & Axles

Parameter	Specification
Axles	2 – 3
Tire Specification	10.00R20 / 11.00R20 / 12.00R20 / 275/80R22.5
Tire Count	6 – 10
Brake System	Front disc brakes, ABS / EBS
Suspension	Leaf springs / Air suspension (optional)

Tank & Safety Equipment

Parameter	Specification
Effective Tank Volume	12 – 15.5 m³
Tank Material	Carbon steel (Q235/Q235B) / Stainless steel
Transport Media	Chemicals, acids, alkalis, solvents, gasoline, methanol, ethanol
Hazard Class	Class 3 (Flammable Liquid) / AT-type
Safety Features	Speed limiter (80 km/h), GPS tracking, front exhaust pipe, flame arrestor, anti-static grounding strap, emergency shut-off valve, anti-overflow probe
Exterior Markings	Reflective tape + hazard diamond signs
